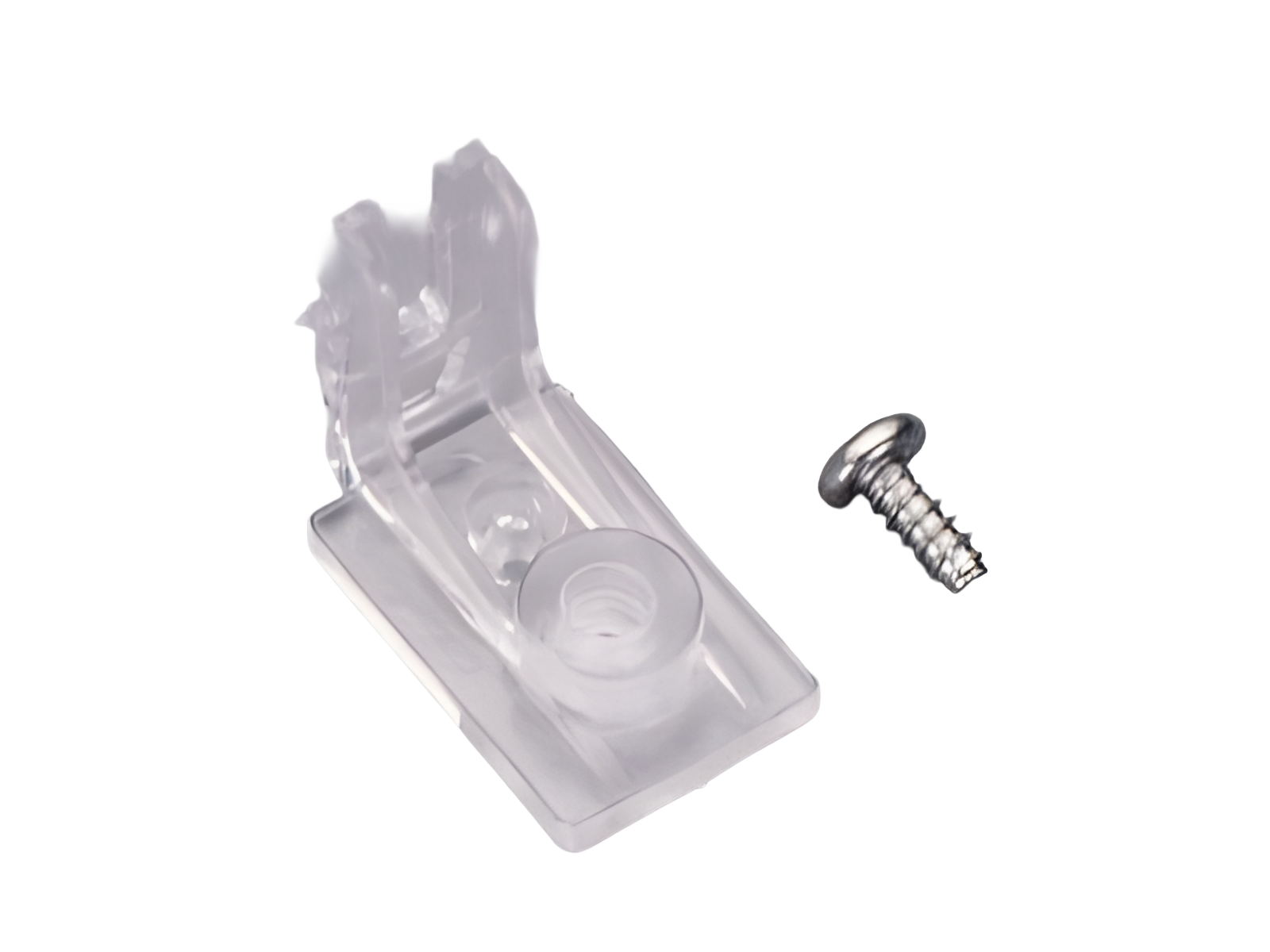

lateral cover support (33113)

The picture may show a similar product.

Description

Part No.: 33113000

lateral cover support

for front covers

size 00 - 3

System

100Energy

Product group	12
Subgroup	70

pack size	1
EAN	4021267331139

ECLASS 6.1	27142190
ECLASS 7.1	27142190
ETIM 4.0	EC002498
ETIM 5.0	EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only

Mechanical data
W x H x D:	15 x 15 x 15
weight:	0,5 kg/100

Application notes


short-circuit withstandability:	not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)
