Part No.: 35015000

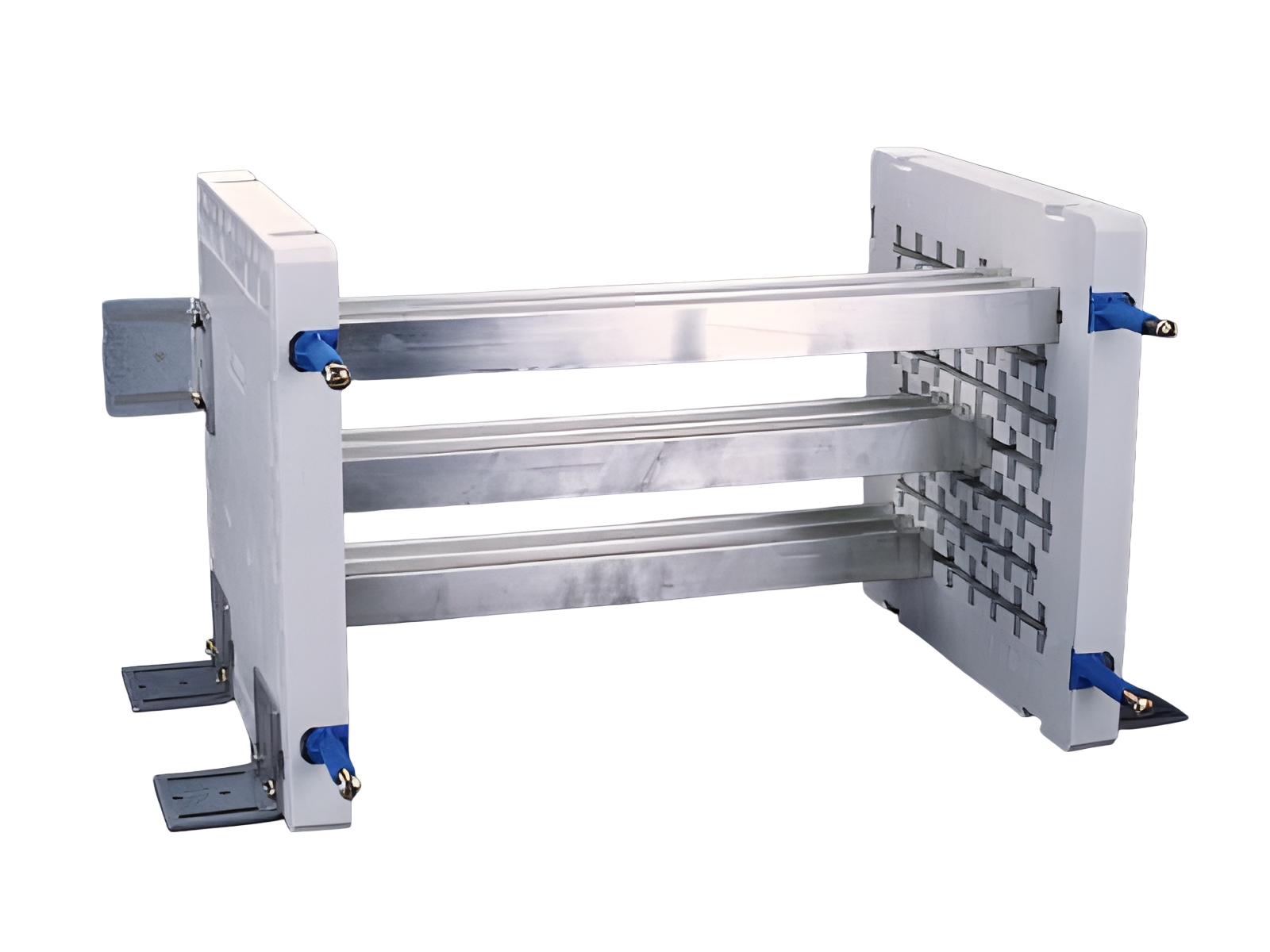

centre feed unit 3200 A
for cabinet width 600 mm
usable busbar length 403 mm
System
centre feed unit
Advantages of the product
Clear construction and undrilled connection technology enable safe and cost-efficient solutions to problems.
| Product group | 11 |
| Subgroup | 12 |
| pack size | 1 |
| EAN | 4021267350154 |
| ECLASS 6.1 | 27370390 |
| ECLASS 7.1 | 27370390 |
| ETIM 4.0 | EC001900 |
| ETIM 5.0 | EC001900 |
Standards
IEC 61439-1:2020
UL 508
Approvals
UL
for UL feeder circuits >250V
type number: CentreFeedUnit
UL file: E123577, UL category (for USA): NMTR https://www.ul.com
UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| rated current (IEC): | 3200 A |
| rated voltage (IEC) AC: | 690 V |
| rated isolation voltage Ui AC: | 1000 V |
| rated surge voltage Uimp : | 8 kV |
| rated peak withstand current Ipk max.: | 93 kA |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 29,2 W.
(The power dissipation at full load would be 45,7 W.)
| 4-pole busbar system, can be retrofitted |
| Details UL | |
| Standards | |
| UL 508 |
| for UL feeder circuits >250V |
| Electrical data UL | |
| rated current (UL): | 1800 A |
| rated voltage (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| SCCR protected max.: | 103 kA |
| SCCR: |
65 kA with DIVQ circuit breaker 2500 A / 480 VAC
103 kA with JDDZ fuse Class L 1600 A / 600 V AC |
| Mechanical data | |
| W x H x D: | 583 x 300 x 300 |
| weight: | 2200,0 kg/100 |
| poles: | 3-pole |
| cross-section: | 1.140 mm² |
|
Reference |
The scope of delivery includes: 2 busbar supports, 3 busbars, fastening brackets, fastening screws and holders for covers. |
| for UL feeder circuits >250V | |
