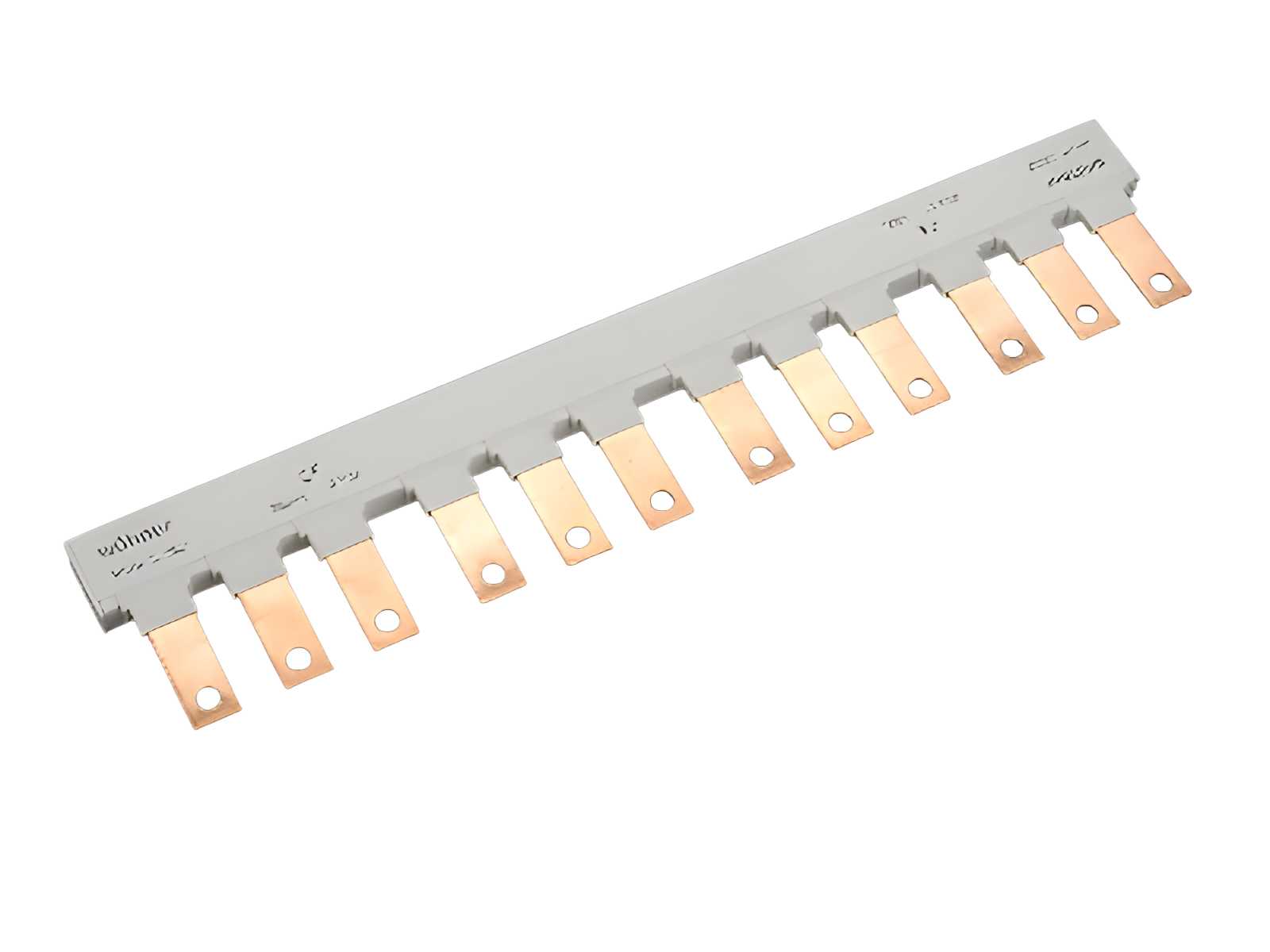

The picture may show a similar product.
Part No.: 33392000
comb-type busbar, 3-pole, for 4 NH fuse switch disconnectors
35 mm²
for 33200
Advantages of the product
Shock protection: as per DIN EN 50274/BGV A3
Prefabricated for four NH- LTS closed version with end caps
| Product group | 09 |
| Subgroup | 51 |
| pack size | 4 |
| EAN | 4021267333928 |
| ECLASS 6.1 | 27142190 |
| ECLASS 7.1 | 27142190 |
| ETIM 4.0 | EC000215 |
| ETIM 5.0 | EC000215 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
| Details IEC | |
| Standards | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
Electrical data
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 8,9 W.
(The power dissipation at full load would be 13,9 W.)
| rated insulation voltage: 800V at pollution degree 2; 690V at pollution degree 3 For rated operating current, see download diagram |
|
| rated surge withstand capacity: 25 kA /400V; rated short-time withstand current resistance: 12.5kA-100ms/400V |
|
| Degree of protection: IP 20 at front in combination NH-LTS, comb-type busbar and connecting terminal possible. Degree of protection near terminal depends on installation. |
| Mechanical data | |
| W x H x D: | 424 x 15 x 32 |
| weight: | 62,3 kg/100 |
| cross-section: | 35 mm² |
|
Reference |
Recommended installation situation: |
