mounting rail 54 mm (32948)

The picture may show a similar product.

Description

Part No.: 32948 000

mounting rail 54 mm

for busbar adapters

System

60Classic

Product group 05
Subgroup 57
pack size 10
EAN 4021267329488
ECLASS 6.1 27370390
ECLASS 7.1 27370390
ETIM 4.0 EC000212
ETIM 5.0 EC001285

Approvals

Standards

IEC 61439-1:2020

UL 508

Approvals

CSA , UL

for UL feeder circuits >250V

type number: TS35-L

UL file: E123577, UL category (for USA): NMTR https://www.ul.com

UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com

CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
Details UL
Standards
UL 508
for UL feeder circuits >250V
Mechanical data
W x H x D: 54 x 35 x 19
weight: 1,5 kg/100

Application notes

not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

for UL feeder circuits >250V

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

32426 000
EQUES®60Classic
busbar component support
2 adjustable mounting rails
54 x 260, with removable upper section, without electrical connection
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

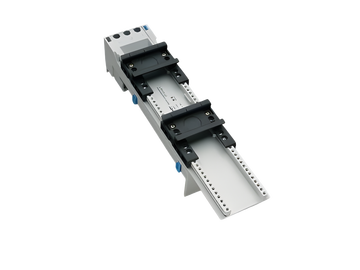

32485 000
EQUES®60Classic
busbar component support
2 adjustable mounting rails
54 x 260, without electrical connection
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32408 000
EQUES®60Classic
busbar adapter 32 A
3-pole
2 adjustable mounting rails
54 x 260, with removable upper section and leads AWG 10 (6 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

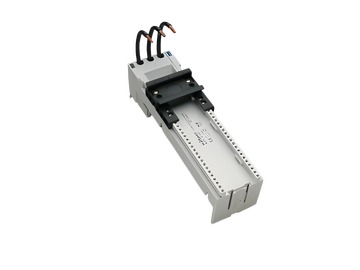

32454 000
EQUES®60Classic
busbar adapter 63 A
1 adjustable mounting rail
54 x 200, with leads AWG 8 (10 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32464 000
EQUES®60Classic
busbar adapter 80 A
1 adjustable mounting rail
54 x 200, without leads, with terminals 1.5 - 16 mm², front operated
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32416 000
EQUES®60Classic
busbar adapter 45 A
3-pole
2 adjustable mounting rails
54 x 260, with removable upper section and leads AWG 8 (10 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32461 000
EQUES®60Classic

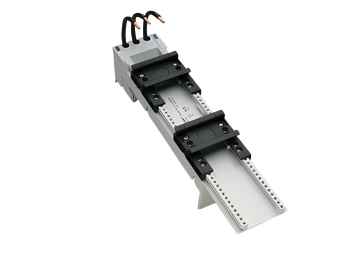

busbar adapter 63 A
3-pole
2 adjustable mounting rails
54 x 260, with leads AWG 8 (10 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32466 000
EQUES®60Classic
busbar adapter 80 A
1 adjustable mounting rail
54 x 200, without leads, with terminals 16 mm², operated from behind
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32465 000
EQUES®60Classic
busbar adapter 80 A
3-pole
2 adjustable mounting rails
54 x 260, without leads, with terminals 1.5 - 16 mm², front operated
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

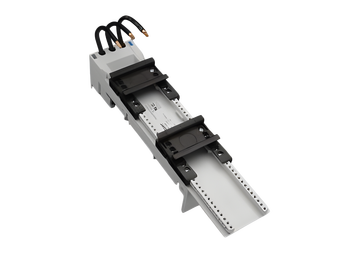

32449 000
EQUES®60Classic
busbar adapter 32 A
3-pole
2 adjustable mounting rails
54 x 260, with leads AWG 10 (6 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32472 000
EQUES®60Classic
busbar adapter 80 A
3-pole
2 adjustable mounting rails
54 x 260, without leads, with terminals 16 mm², operated from behind
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

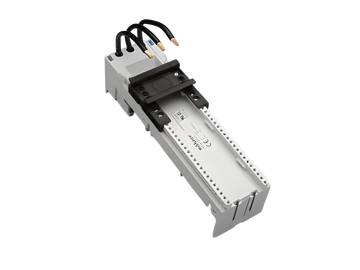

32441 000
