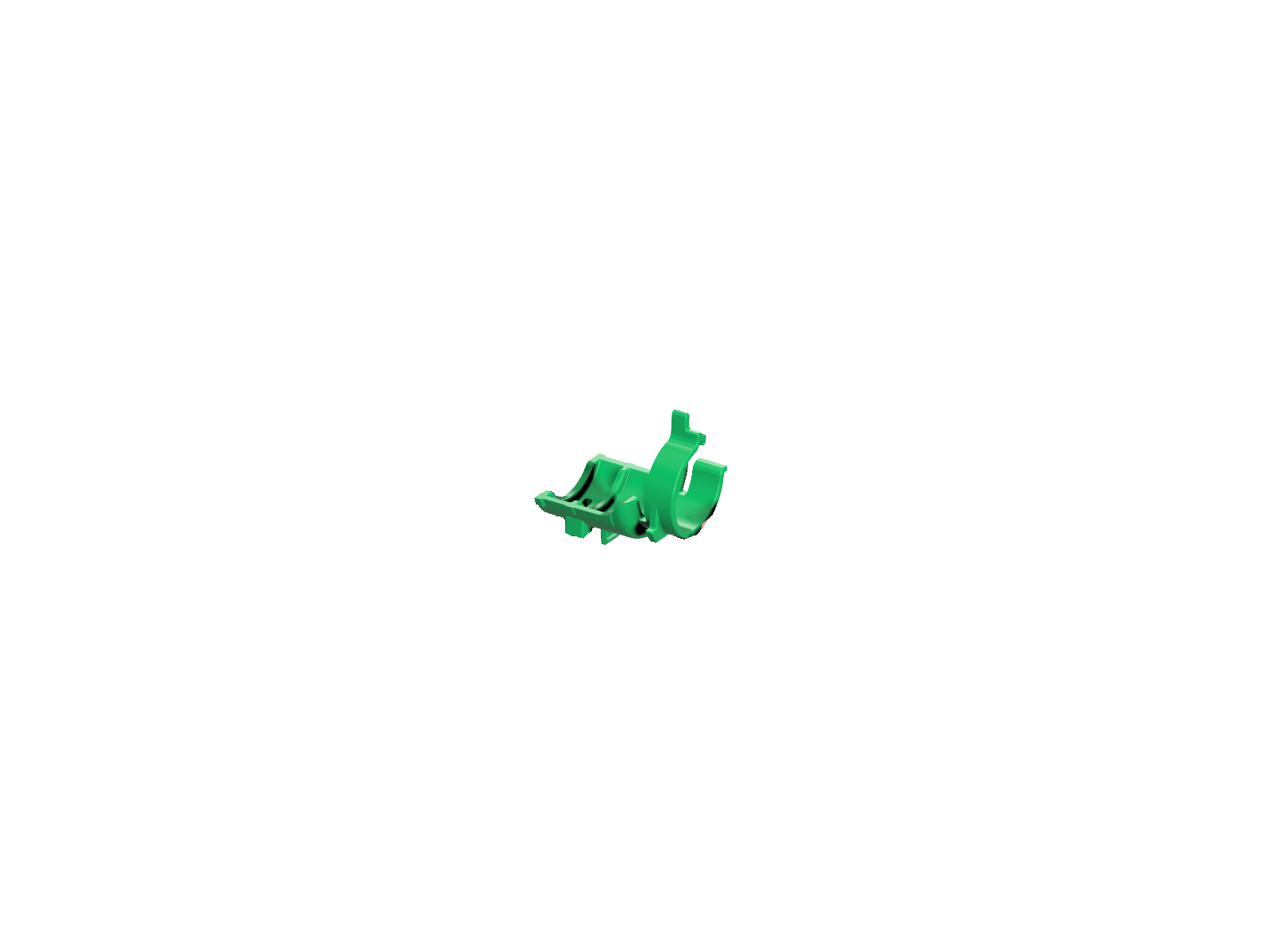

mounting bracket for special gauge element 2 - 16 A (31346)

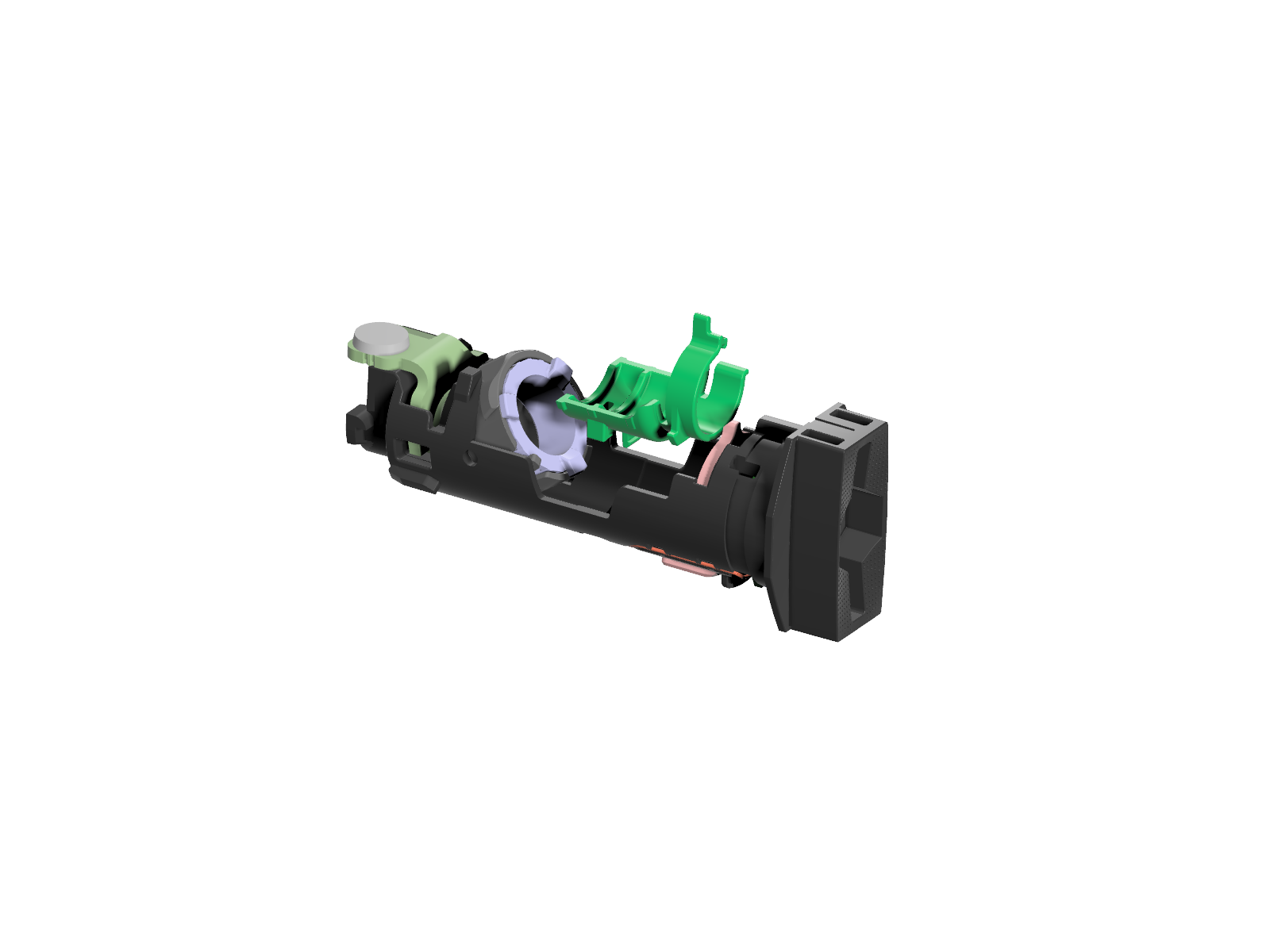

The picture may show a similar product.

Description

Part No.: 31346 000A

mounting bracket for special gauge element 2 - 16 A

for SUL

NEW

Product group 01
Subgroup 36
pack size 30
EAN 4021267313463
ETIM 5.0 EC002936
ETIM 8.0 EC002936

Approvals

Standards

IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-3:2010 + A1:2013 + A2:2019

Technical data

Details IEC
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-3:2010 + A1:2013 + A2:2019

Electrical data

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0.0 W.

(The power dissipation at full load would be 0.0 W.)

Supplementary data IEC

The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.
max. permitted operation temperature 55°C
Mechanical data
weight: 0.1 kg/100
Material properties
halogen-free: Yes

Application notes

not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

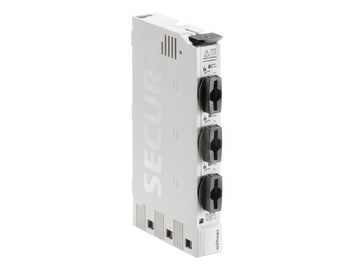

31260 000A
SECUR®Crossboard
switch-disconnector-fuse
Size D02 / E 18
for D01 and D02 fuses
35 A / 3P
indication (LED) of a tripped fuse link
operator independent switching (snap-action mechanism)
connection bottom
NEW
More
