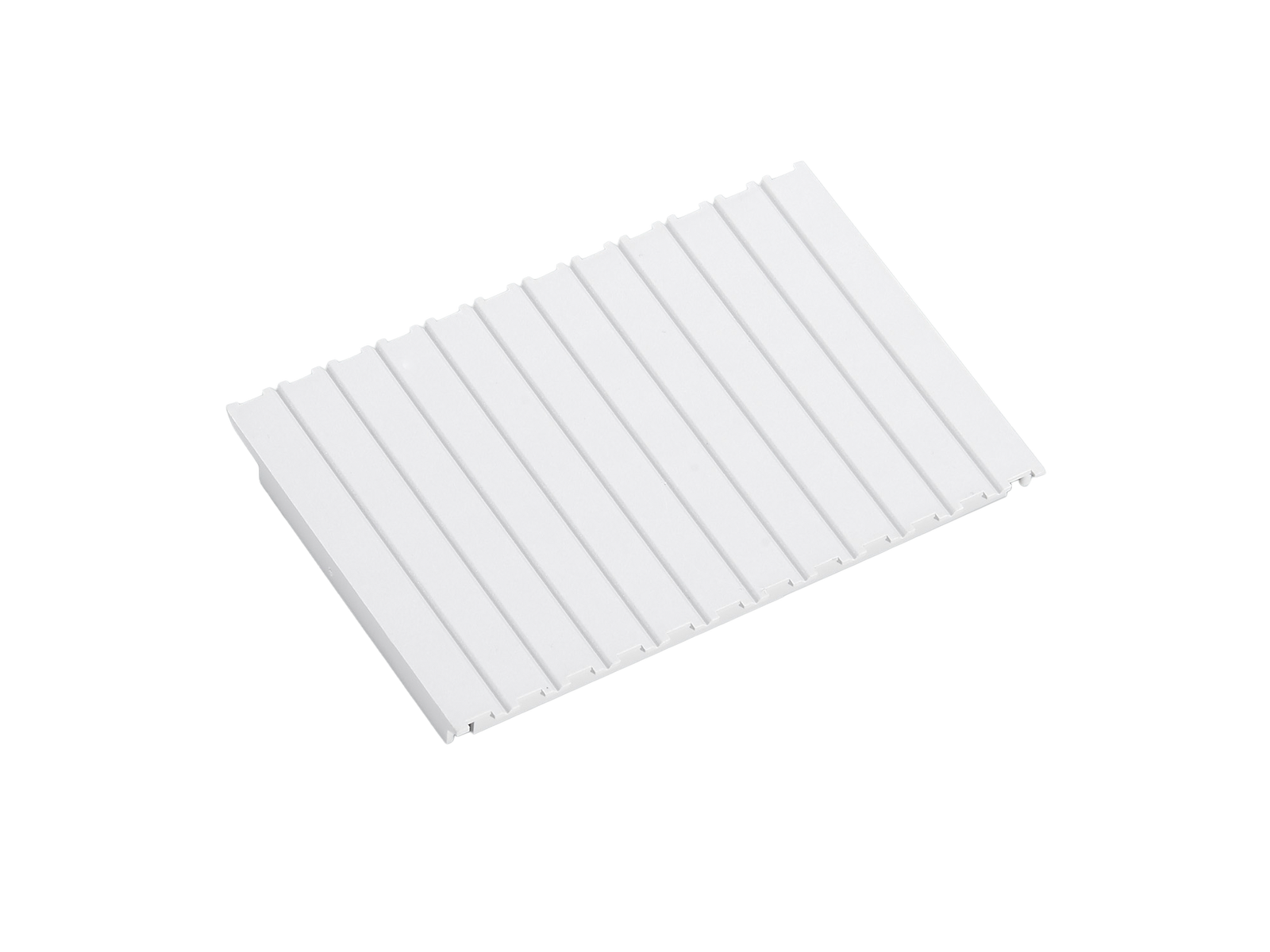

front cover IP40 (01435)

The picture may show a similar product.

Description

Part No.: 01435000A

CrossLink®185Power

front cover IP40

for CrossLink® covers

100 mm wide, 1-pole

System

185Power

Product group 06
Subgroup 27
pack size 3
EAN 4021267014353
ECLASS 6.1 27370390
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 61439-1:2020

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
Mechanical data
W x H x D: 100 x 67 x 7
weight: 3.0 kg/100
front degree of protection: IP40

Application notes

short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| Mounting instructions

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

| Text for specification - GAEB90 (in German) (*.d81)

Usage

01433000A
CrossLink®185Power
CrossLink® touch-safe protection cover module
50 mm wide
50 x 540
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

01434000A
CrossLink®185Power
CrossLink® touch-safe protection cover module
100 mm wide
100 x 540
for busbars: 30, 40, 60, 80, 100, 120 x 10
More
