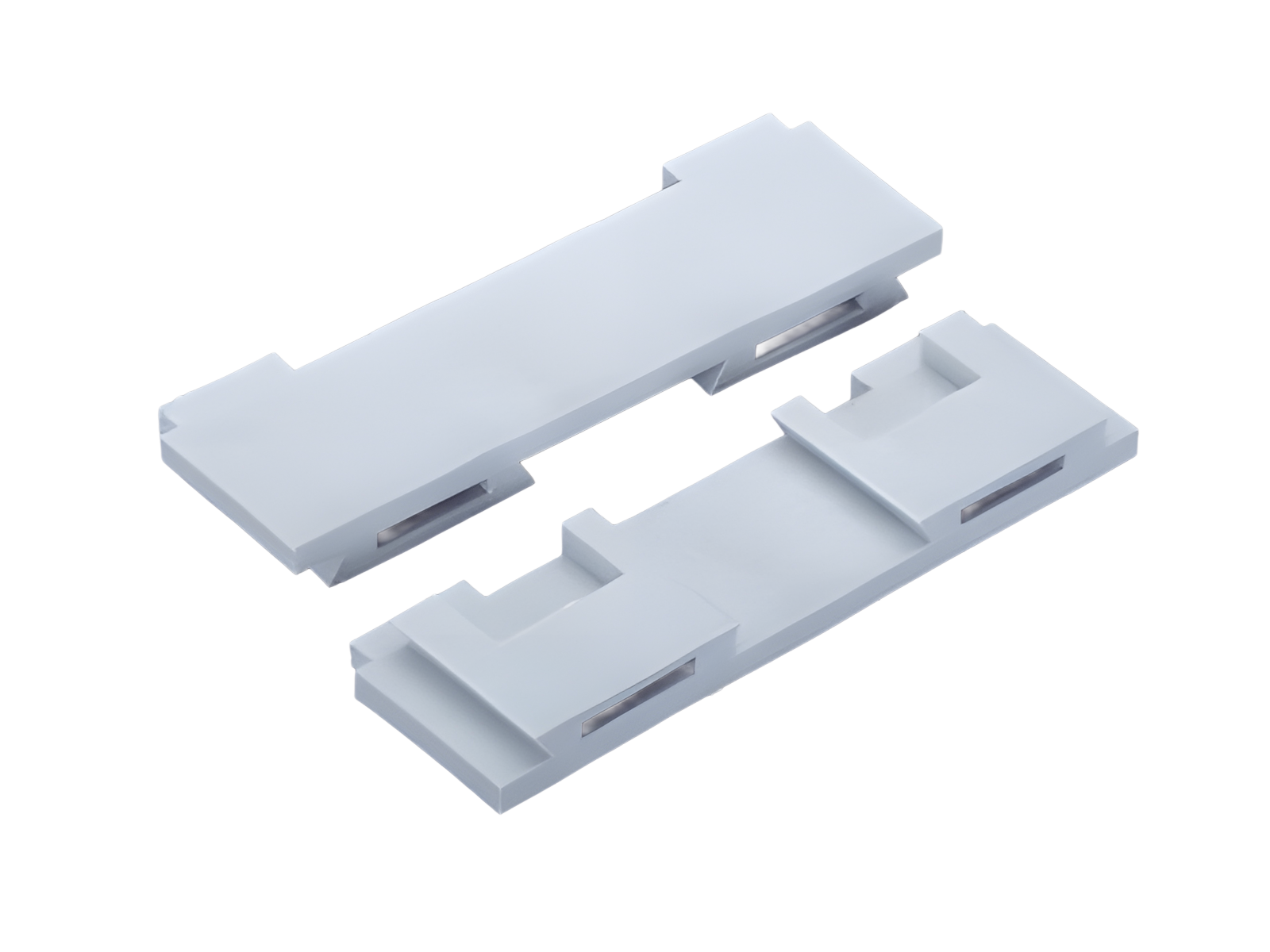

barrier support, for lateral barrier (03359)

The picture may show a similar product.

Description

Part No.: 03359000

barrier support, for lateral barrier

for 03350, 03351, 03354, 03355

Product group 10
Subgroup 66
pack size 10
EAN 4021267033590
ECLASS 6.1 27149217
ECLASS 7.1 27149217
ETIM 4.0 EC001660
ETIM 5.0 EC001660

Approvals

Standards

IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016

Technical data

Details IEC
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016
Mechanical data
W x H x D: 12 x 70 x 3
weight: 0.8 kg/100

Application notes

short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current metal surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Accessories

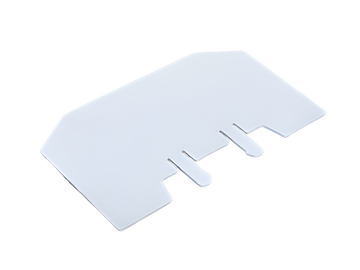

03377000
barrier
for: 03350, 03351, 03354, 03355
More

Usage

03377000
barrier
for: 03350, 03351, 03354, 03355
More

03355000
QUADRON®Panel
NH fuse-base 160 A
both sides clamp, with 2 barriers
size 00 / 3P
More

03354000
QUADRON®Panel
NH fuse-base 160 A
both sides terminal, without barrier
size 00 / 1P
More

03350000
QUADRON®Panel
NH fuse-base 160 A
both sides screw M8, without barrier
size 00 / 1P
More

03351000
QUADRON®Panel
NH fuse-base 160 A
both sides screw, with 2 barriers
size 00 / 3P
More
