trim cover, 2 parts (33315)

The picture may show a similar product.

Description

Part No.: 33315000

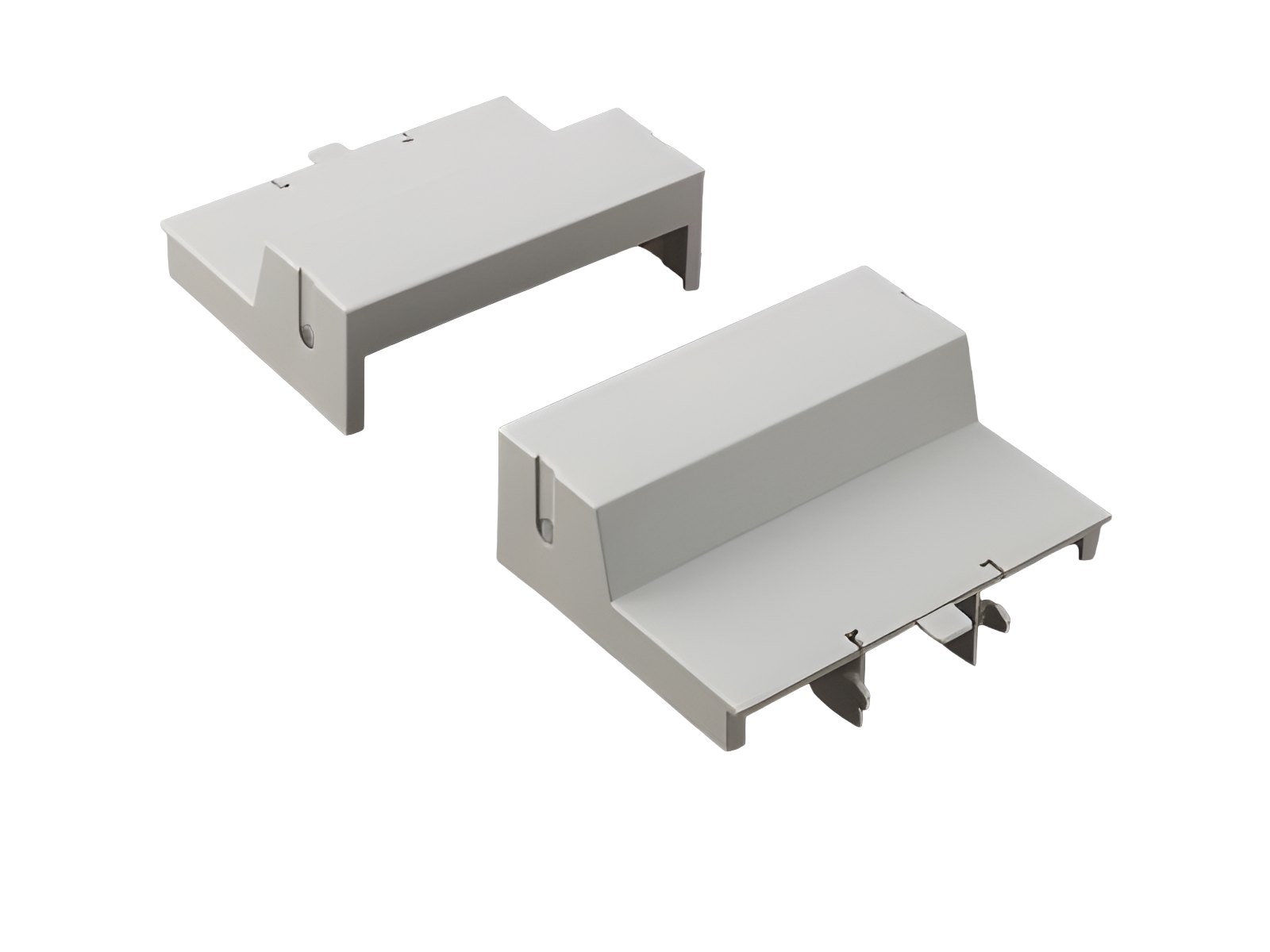

trim cover, 2 parts

for NH-LTS size 00

size 00

System

60Classic

Product group 09
Subgroup 51
pack size 1
EAN 4021267333157
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Mechanical data
W x H x D: 106 x 350 x 83
weight: 12.4 kg/100

Application notes

short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| Mounting instructions

| CAD model 3D STP

| Data packet EPlan (*.edz)

| Dimensioned drawing  #2

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)
