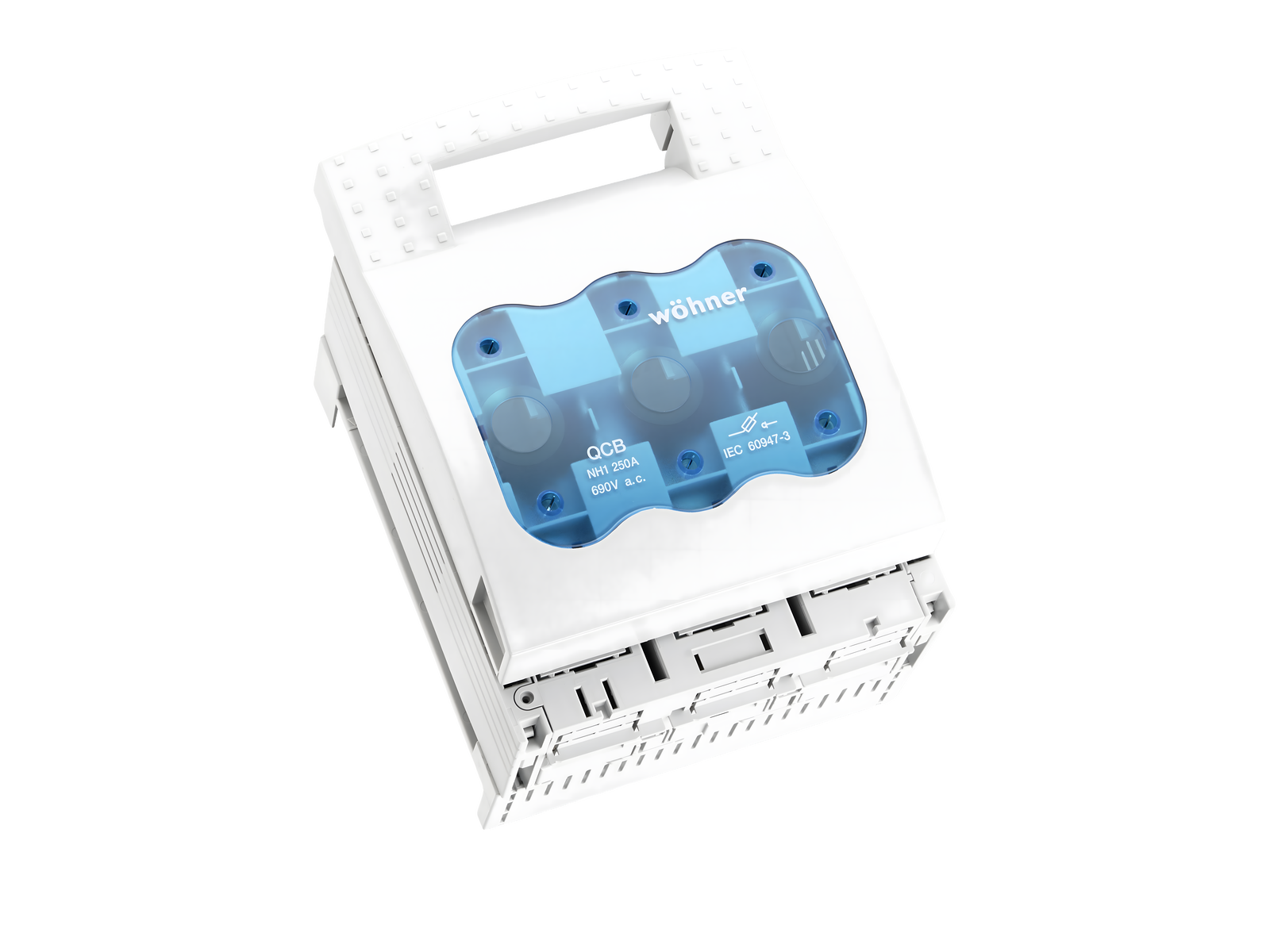

The picture may show a similar product.
Part No.: 33600000
QUADRON®60Classic
NH fuse switch-disconnector size 1, 250 A
box terminal
connection top or bottom
for busbars 12, 15, 20, 25, 30 x 5, 10 and section busbars
with CrossLink®Technology
System
60Classic
Advantages of the product
CrossLink® adapter technology
Fast and safe conversion of the connection for top or bottom; the parts under voltage remain shock protected
Simple and safe clicking into place and making contact
Safe connection through shock protection split into two
Busbar supports for flat busbars can be mounted above each other
Self-closing test holes are available in the cover.
| Product group | 09 |
| Subgroup | 27 |
| pack size | 1 |
| EAN | 4021267336004 |
| ECLASS 6.1 | 27142108 |
| ECLASS 7.1 | 27142108 |
| ETIM 4.0 | EC001040 |
| ETIM 5.0 | EC001040 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
UL 4248-1
Approvals
IEC (CB) , UL , VDE , CCC , DNV GL
for UL feeder circuits >250V
type number: QCB-NH1
| for fuse links size: | NH 1 |
| fuse links acc. to standard: | IEC / HD 60269-2 |
| permitted power dissipation of the fuse-link: | 23 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| Details IEC | |
| Standards | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Electrical data IEC | |
| rated current (IEC): | 250 A |
| rated voltage (IEC) AC: | 690 V |
| rated voltage (IEC) DC: | 440 V |
| rated isolation voltage Ui AC: | 800 V |
| rated isolation voltage Ui DC: | 500 V |
| rated surge voltage Uimp : | 6 kV |
| Utilisation category AC (IEC 60947-3) : | AC-22B (400 V) AC-23B (400 V / 160 A) AC-21B (690 V) AC-20B (1000 V) at pollution degree 2 to obtain a higher utilisation category the product can be retrofitted with arcing chambers (see accessories) visible information required if used at more than 690V AC: do not switch under load |
| Utilisation category DC (IEC 60947-3) : | DC specifications: 2 current paths (L1,L3) in series DC-20B (440 V) DC-20B (1000V) at pollution degree 2 visible information required if used at more than 440V DC: do not switch under load |
| cond. short-circuit current with fuses (AC): | 100 kA / 690 V |
| approved wth fuse links of operation class: | gG |
| rated peak withstand current Ipk max.: | 13.7 kA |
| rated short-time withstand current Icw (1.0 s) max.: | 8.1 kA |
| Icw approved with: | Trennmesser |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 16.6 W.
(The power dissipation at full load would be 26.0 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| max. permitted voltage (IEC) AC: | 725 V |
| max. permitted voltage (IEC) DC: | 800 V |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. |
| In accordance with the specified AC and DC switching properties and in consideration of the overload conditions, the distances to earthed metal parts given below are to be adhered to. - top 190mm, side 75mm When used as a disconnector, the spacings can be ignored. |
|
| Degree of protection IP30 at front, degree of protection near terminal depends on installation |
| Details UL | |
| Standards | |
| UL 4248-1 |
| for UL feeder circuits >250V |
| Electrical data UL | |
| rated current (UL): | 250 A |
| rated voltage (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| SCCR: | 100 kA |
| Mechanical data | |
| W x H x D: | 184 x 243 x 129 |
| weight: | 266.0 kg/100 |
| poles: | 3-pole |
| for busbars: | 12, 15, 20, 25, 30 x 5, 10 and section busbars |
| front degree of protection: | IP30 |
| Terminal points | |
| cage clamp connection | |
| screw drive: | S4 |
| wire stripping: | 22 mm |
| min. cross-section: | 35 mm² |
| max. cross-section: | 185 mm² |
| Md min.: | 9.6 Nm |
| Md max.: | 14.4 Nm |
| Not suitable for aluminium cables ! | |
| Not suitable for aluminium cables ! | |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. | |
| permitted power dissipation of the fuse-link: | 23 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| for UL feeder circuits >250V | |
