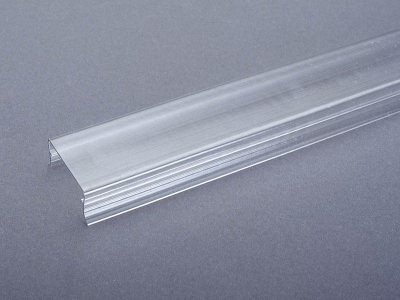

cover section (78491)

The picture may show a similar product.

Description

Part No.: 78491 000

cover section

1 m long, for main branch terminals

no longer available

Product group 08
Subgroup 21
pack size 10
EAN 4021267784911

Approvals

Standards

DIN VDE 0603-2/03.98

CCC approval: no certification required

Technical data

Details IEC
Standards
DIN VDE 0603-2/03.98
Mechanical data
W x H x D: 1000 x 40 x 5
weight: 8.4 kg/100

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

Usage

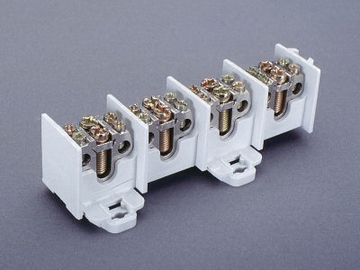

02505 000
main branch terminal
4-pole, 4 inserts / 2 tappings
35 mm²
for mounting rail
phase-out product
