for UL feeder circuits >250V
The picture may show a similar product.
Part No.: 31262 000A
SECUR®Crossboard
switch-disconnector-fuse
Size 10x38
for fuses 10x38 IEC 60269-2
3P
indication (LED) of a tripped fuse link
operator independent switching (snap-action mechanism)
connection bottom
NEW
System
CrossBoard® 125A / 250A, CrossBoard® 800 A
Advantages of the product
spring terminal enables connection without tools (at first installation)
| Product group | 01 |
| Subgroup | 52 |
| pack size | 1 |
| EAN | 4021267312626 |
| ETIM 5.0 | EC001040 |
| ETIM 8.0 | EC001040 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Approvals
IEC (CB) , VDE
| for fuse links size: | 10x38 |
| fuse links acc. to standard: | IEC / HD 60269-2 |
| permitted power dissipation of the fuse-link: | 3 W |
| Details IEC | |
| Standards | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Electrical data IEC | |
| rated current (IEC): | 32 A |
| rated voltage (IEC) AC: | 690 V |
| rated isolation voltage Ui AC: | 800 V |
| rated isolation voltage Ui DC: | 250 V |
| rated surge voltage Uimp : | 6 kV |
| Utilisation category AC (IEC 60947-3) : | AC-22B (400V/ 32A) AC-22B (500V/ 25A) AC-22B (690V/ 10A) |
| cond. short-circuit current with fuses (AC): | 100 kA / 400 V (32A) |
| approved wth fuse links of operation class: | gG |
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. |
| max. permitted operation temperature | 45°C |
The function of isolation between incoming and outgoing contacts is provided by the opening of the switching mechanism as required in the standard. |
| Mechanical data | |
| W x H x D: | 22.5 x 184 x 100 |
| weight: | 33.0 kg/100 |
| poles: | 3-pole |
| front degree of protection: | IP30 |
| Terminal points | |
| spring pulley connection | |
| screw drive: | 0,8x4 |
| wire stripping: | 23 mm |
| min. cross-section: | 2.5 mm² |
| max. cross-section: | 16 mm² |
| f: | 2.5 - 16 mm² |
| Not suitable for aluminium cables ! | |
| Material properties | |
| halogen-free: | Yes |
| Not suitable for aluminium cables ! | |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. | |
| permitted power dissipation of the fuse-link: | 3 W |
31976
000A

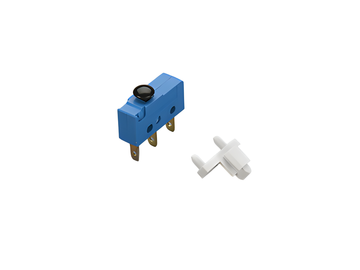

pilot switch
changeover 250 V AC / 5 A, 30 V DC / 4 A
