for UL feeder circuits >250V

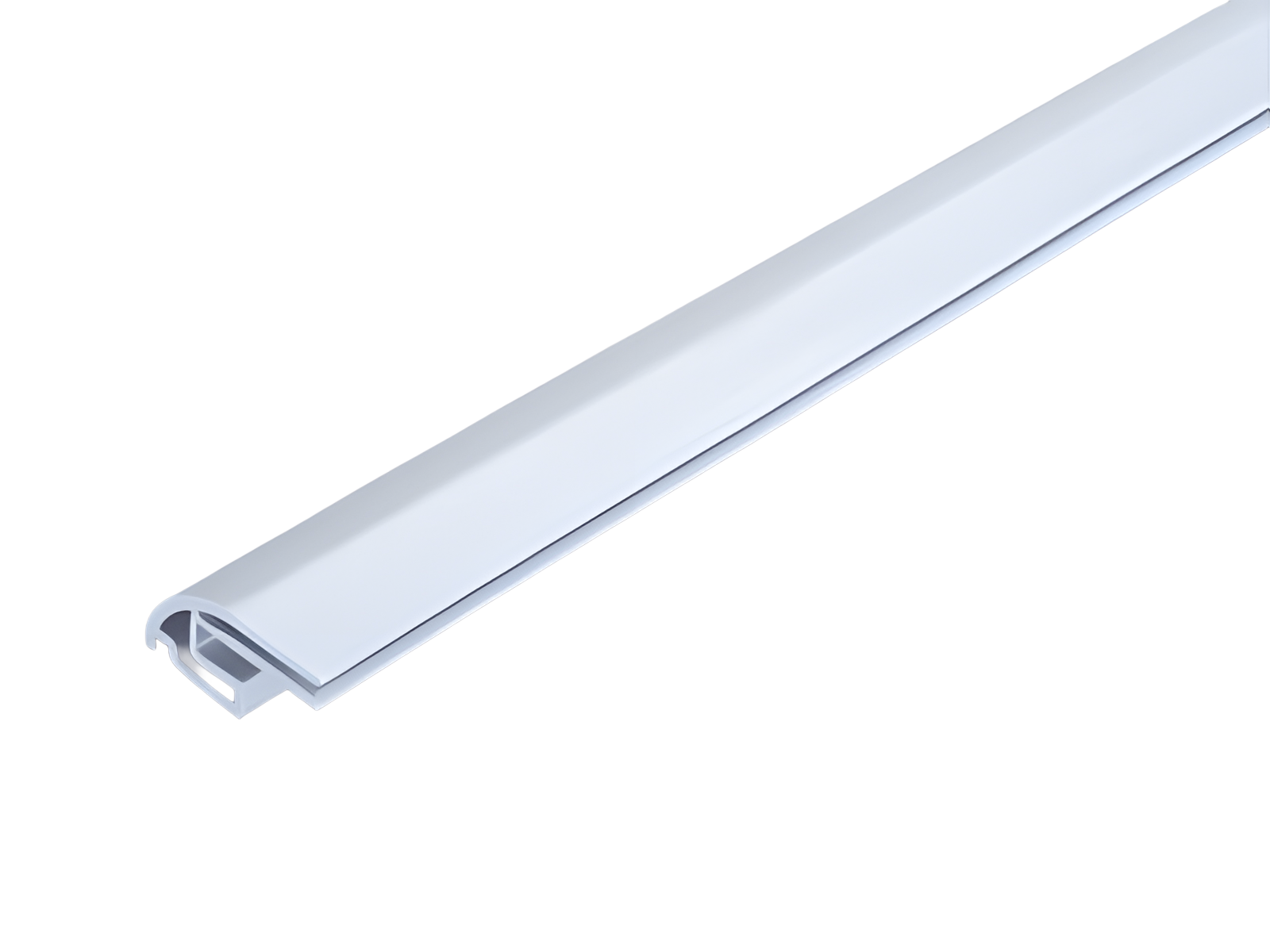

trough edge section (01038)

The picture may show a similar product.

Description

Part No.: 01038 000

trough edge section

slim

17 x 36 x 700

System

60Classic

Advantages of the product

Part of the shrouding system for shock protection of the 3 and 4-pole busbar system.

Product group 06
Subgroup 27
pack size 10
EAN 4021267010386
ECLASS 6.1 27370390
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498
ETIM 8.0 EC002498

Approvals

Standards

IEC 61439-1:2020

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
Mechanical data
W x H x D: 700 x 36 x 17
weight: 19.8 kg/100
Material properties
halogen-free: Yes

Application notes

not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit
