insulator (05790)

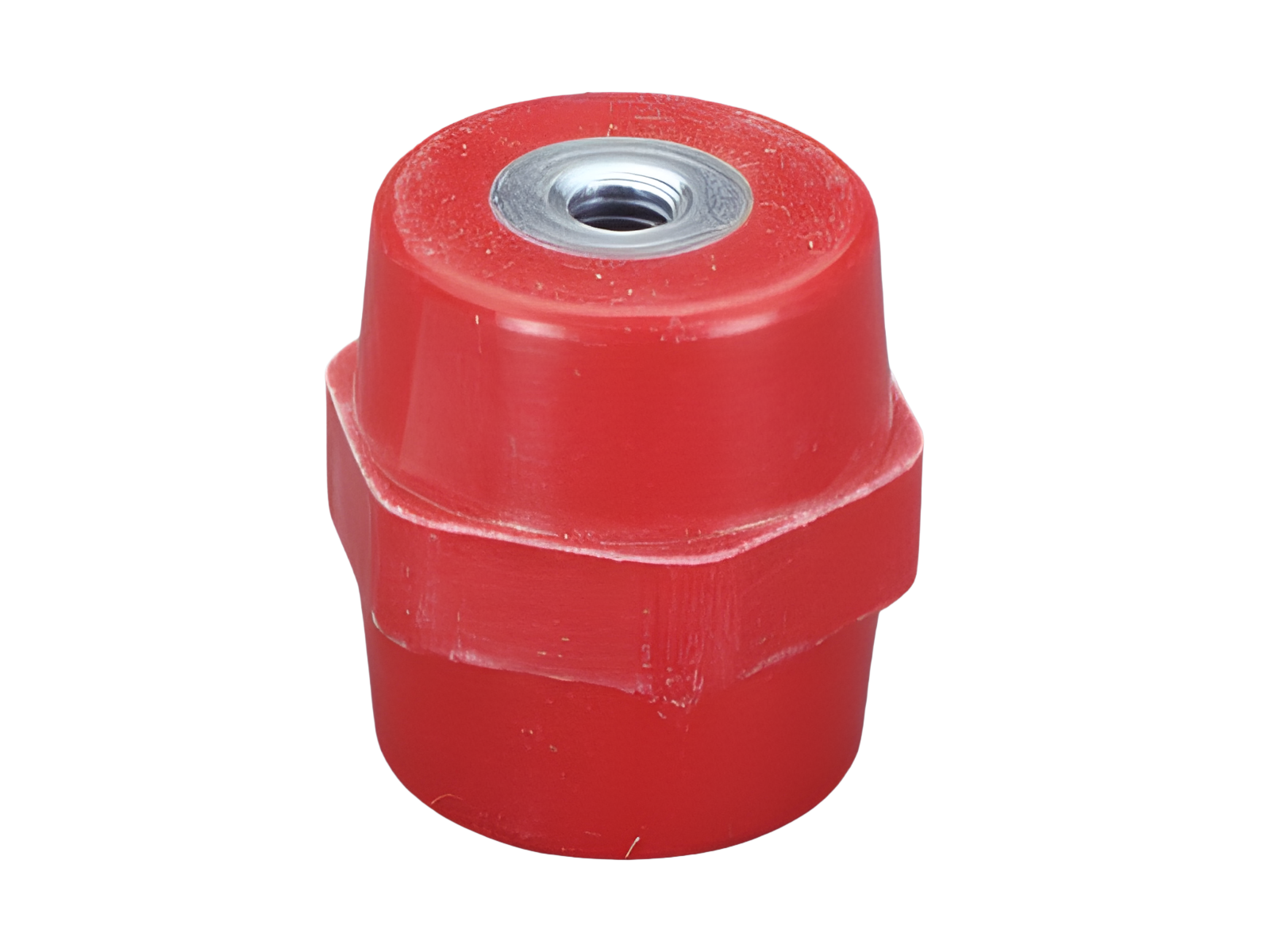

The picture may show a similar product.

Description

Part No.: 05790000

insulator

with female thread at both sides, length across flats 36

M8 x 50

Product group	06
Subgroup	89

pack size	20
EAN	4021267057909

catalog page

2020 : 7.17

ECLASS 6.1	27400607
ECLASS 7.1	27400607
ETIM 4.0	EC001166
ETIM 5.0	EC001166

Approvals

Standards

IEC 61439-1:2011

Approvals

EAC

EAC Type: IS

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2011

Electrical data IEC
rated voltage (IEC) AC:	2000 V

rated voltage (IEC) DC:

2000 V

short-circuit withstandability:

no data

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0.0 W.

(The power dissipation at full load would be 0.0 W.)

Mechanical data
W x H x D:	36 x 36 x 50
weight:	10.9 kg/100

Terminal points
female thread M8

Reference

The installation of the insulator is required on a flat surface on both sides. The fixing screw must be fixed on both surfaces.
The installation on a non-flat mounting surface leads to inadmissible tensions which could cause damages to the insulator.
