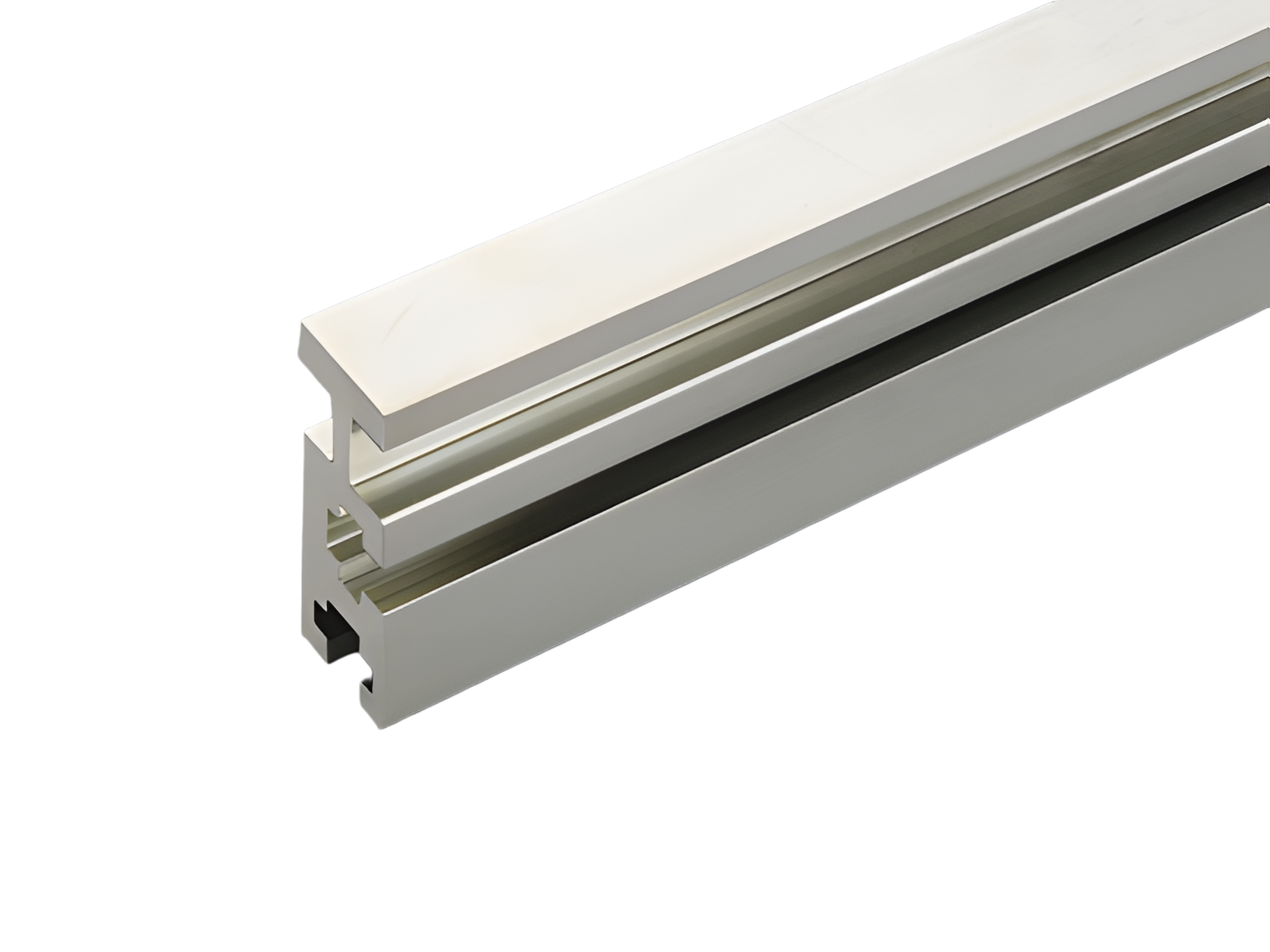

The picture may show a similar product.
Part No.: 01610000
TCC section busbar 1600 mm²
length 2.40 m, tinned
System
60Classic, centre feed unit
Advantages of the product
Tin-plated Cu busbars considerably reduce the effort of preparing the contact points.
The Cu busbars are effective protected against aggressive media.
| Product group | 06 |
| Subgroup | 92 |
| pack size | 1 |
| EAN | 4021267016104 |
| ECLASS 6.1 | 27370303 |
| ECLASS 7.1 | 27370303 |
| ETIM 4.0 | EC001522 |
| ETIM 5.0 | EC001522 |
Standards
IEC 61439-1:2020
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 61439-1:2020 |
Electrical data
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 160.6 W.
(The power dissipation at full load would be 251.0 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| current at 55 K: | 2800 A |
| diagram current capacity (IEC) |
| Mechanical data | |
| W x H x D: | 2400 x 30 x 90 |
| weight: | 3416.0 kg/100 |
| cross-section: | 1,600 mm² |
Edge radius 0.5
| Please respect the insulation characteristics of the busbar support for your application. | |
| short-circuit withstandability: | see product description of the used busbar support |
