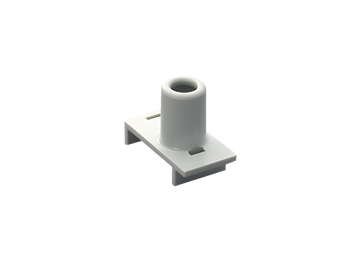

The picture may show a similar product.
Part No.: 01570000A
CRITO®60Classic
connection terminal plate, 3-pole
10 - 120 mm², AWG 2 - 250 MCM, lam. Cu. 9 - 15,5 x 2,4 - 10
cover can be removed with tool only
for busbars 12, 15, 20, 25, 30 x 5, 10 and section busbars
System
60Classic
Advantages of the product
Terminals can be removed for connection of uncut conductors
| Product group | 07 |
| Subgroup | 45 |
| pack size | 1 |
| EAN | 4021267015701 |
| ECLASS 6.1 | 27141146 |
| ECLASS 7.1 | 27141146 |
| ETIM 4.0 | EC000001 |
| ETIM 5.0 | EC000001 |
Standards
IEC 61439-1:2020
IEC 60999-1:1999
IEC 60999-2:2003
UL 508
Approvals
CSA , UL , DNV GL
for UL feeder circuits >250V
type number: 243-L
UL file: E123577, UL category (for USA): NMTR https://www.ul.com
UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
CCC approval: no certification required
| Details IEC | |
| Standards | |
|
IEC 61439-1:2020 IEC 60999-1:1999 IEC 60999-2:2003 |
| Electrical data IEC | |
| rated current (IEC): | 250 A |
| rated voltage (IEC) AC: | 690 V |
| rated surge voltage Uimp : | 6 kV |
| rated peak withstand current Ipk max.: | 56.3 kA |
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| max. permitted voltage (IEC) AC: | 1000 V |
| max. permitted voltage (IEC) DC: | 1500 V |
| current capacity (IEC) max.: | 440 A |
| Details UL | |
| Standards | |
| UL 508 |
| for UL feeder circuits >250V | |
| suitable for field-installed conductors |
| Electrical data UL | |
| rated current (UL): | 255 A |
| rated voltage (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| SCCR unprotected max.: | 10 kA |
| 3 cycles (without OPD) @ 600 V AC | |
| SCCR protected max.: | 100 kA |
| SCCR: |
100 kA with JDDZ fuse Class J 500 A / 600 V AC
100 kA with JDDZ fuse Class J 600 A / 480 V AC 35 kA with any DIVQ/7 circuit breaker 600 A / 600 V AC 50 kA with any DIVQ/7 circuit breaker 600 A / 480 V AC 65 kA with any DIVQ/7 circuit breaker 400 A / 480 V AC |
| Mechanical data | |
| W x H x D: | 81 x 200 x 84 |
| weight: | 53.5 kg/100 |
| poles: | 3-pole |
| for busbars: | 12, 15, 20, 25, 30 x 5, 10 and section busbars |
| Terminal points | |
| cage clamp connection | |
| wire stripping: | 25 mm |
| min. cross-section: | 10 mm² |
| max. cross-section: | 150 mm² |
| re: | 10 - 10 mm² |
| rm: | 16 - 150 mm² |
| f: | 16 - 120 mm² |
| f + AE: | 10 - 120 mm² |
| (f + AE may not fit with max. cross-section) | |
| Terminal space: | 15 x 15 |
| Md min.: | 12.0 Nm |
| Md max.: | 12.5 Nm |
| Not suitable for aluminium cables ! | |
| Not suitable for aluminium cables ! | |
| The insulation performance of the article depends on the installation conditions. | |
| for UL feeder circuits >250V |
