holder for cylindrical fuses (33408)

The picture may show a similar product.

Description

Part No.: 33408 000

QUADRON®Panel

holder for cylindrical fuses

Size Class J 100 A

Class J / 3P, box terminal

100 A / 600 V (29x118)

for mounting plate

System

Panel

Product group 16
Subgroup 09
pack size 1
EAN 4021267334086
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002705
ETIM 5.0 EC002705

Approvals

Standards

IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016, Fuse system H

UL 4248-8

UL 4248-1

Approvals

UL

for UL feeder circuits >250V

type number: QCC-ClassJ100A

UL file: E230163, UL category (for USA): IZLT2 https://www.ul.com

UL file: E230163, UL category (for Canada): IZLT8 https://www.ul.com

Technical data

for fuse links size: Class J 100 A
fuse links acc. to standard: UL 248-8
permitted power dissipation of the fuse-link: 10 W
Details IEC
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016, Fuse system H

Electrical data

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 5.3 W.

(The power dissipation at full load would be 8.3 W.)

for Class J fuses 70 - 100A as per UL 248-8 (29x118)
Details UL
Standards
UL 4248-8
UL 4248-1
for UL feeder circuits >250V
suitable for field-installed conductors
Electrical data UL
rated current (UL): 100 A
rated voltage (UL) AC: 600 V
rated frequency (UL): 50 / 60 Hz
rated voltage (UL) DC: 600 V
for wires UL: Cu 75°C
SCCR: 200 kA
Mechanical data

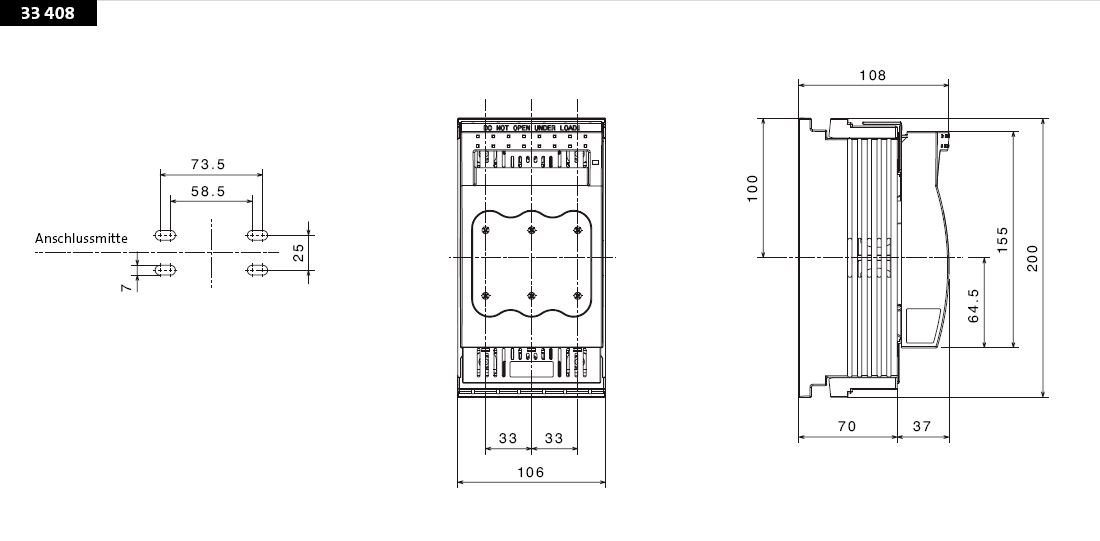

W x H x D: 106 x 200 x 135
weight: 107.0 kg/100
poles: 3-pole
Mounting: for mounting plate
Terminal points
Not suitable for aluminium cables !

min. cross-section UL: AWG 14
max. cross-section UL: AWG 2/0
for wires UL: Cu 75°C


AWG 12 - AWG 2/0 stranded, equivalent 3,3 - 67,4 mm²
AWG 14 - AWG 10 solid, equivalent 215 - 5,3 mm²

Application notes

Not suitable for aluminium cables !
permitted power dissipation of the fuse-link: 10 W
for UL feeder circuits >250V
