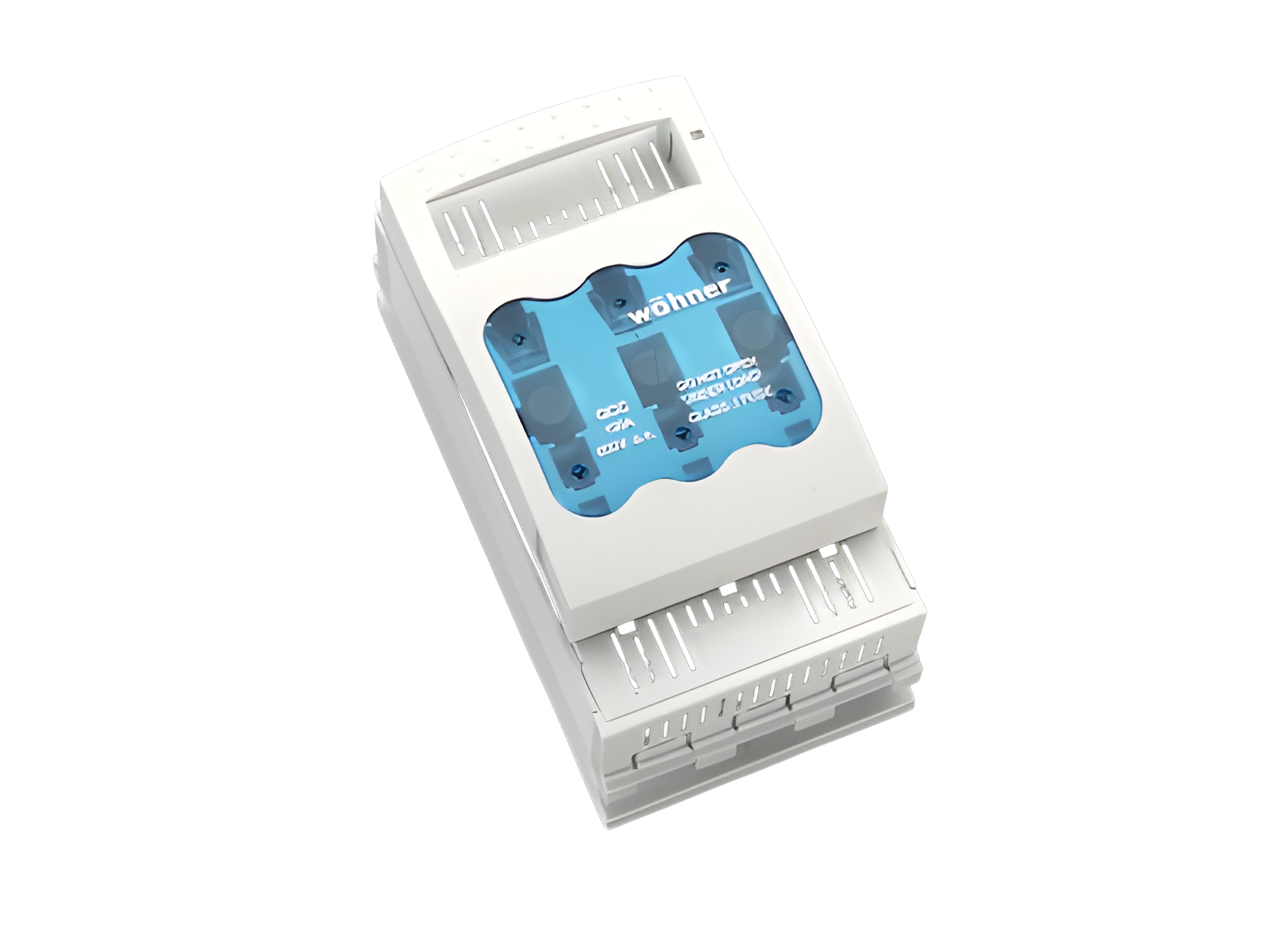

The picture may show a similar product.
Part No.: 33408000
QUADRON®Panel
holder for cylindrical fuses
Class J / 3P, box terminal
100 A / 600 V (29x118)
for mounting plate
System
Panel
| Product group | 16 |
| Subgroup | 09 |
| pack size | 1 |
| EAN | 4021267334086 |
| ECLASS 6.1 | 27142190 |
| ECLASS 7.1 | 27142190 |
| ETIM 4.0 | EC002705 |
| ETIM 5.0 | EC002705 |
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016, Fuse system H
UL 4248-8
UL 4248-1
Approvals
UL
for UL feeder circuits >250V
type number: QCC-ClassJ100A
UL file: E230163, UL category (for USA): IZLT2 https://www.ul.com
UL file: E230163, UL category (for Canada): IZLT8 https://www.ul.com
| for fuse links size: | Class J 100 A |
| fuse links acc. to standard: | UL 248-8 |
| permitted power dissipation of the fuse-link: | 10 W |
| Details IEC | |
| Standards | |
|
IEC 60269-1:2006 + A1:2009 + A2:2014 IEC 60269-2:2013 + A1:2016, Fuse system H |
Electrical data
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 5,3 W.
(The power dissipation at full load would be 8,3 W.)
| for Class J fuses 70 - 100A as per UL 248-8 (29x118) |
| Details UL | |
| Standards | |
|
UL 4248-8
UL 4248-1 |
| for UL feeder circuits >250V | |
| suitable for field-installed conductors |
| Electrical data UL | |
| rated current (UL): | 100 A |
| rated voltage (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| rated voltage (UL) DC: | 600 V |
| for wires UL: | Cu 75°C |
| SCCR: | 200 kA |

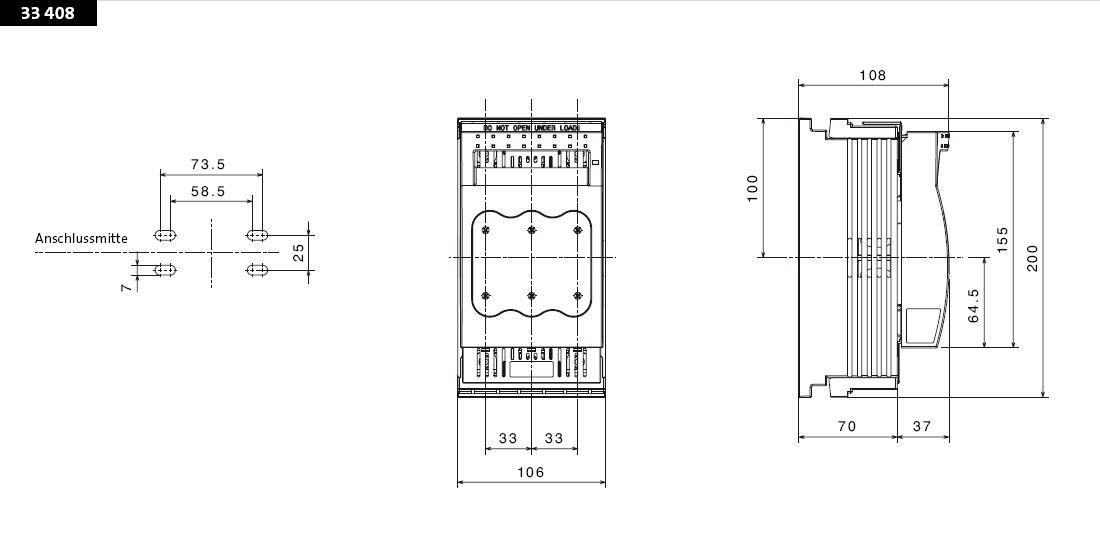

| Mechanical data | |
| W x H x D: | 106 x 200 x 135 |
| weight: | 107,0 kg/100 |
| poles: | 3-pole |
| Mounting: | for mounting plate |
| Terminal points | |
| Not suitable for aluminium cables ! | |
| min. cross-section UL: | AWG 14 |
| max. cross-section UL: | AWG 2/0 |
| for wires UL: | Cu 75°C |
|
AWG 12 - AWG 2/0 stranded, equivalent 3,3 - 67,4 mm² |
|
| Not suitable for aluminium cables ! | |
| permitted power dissipation of the fuse-link: | 10 W |
| for UL feeder circuits >250V | |
