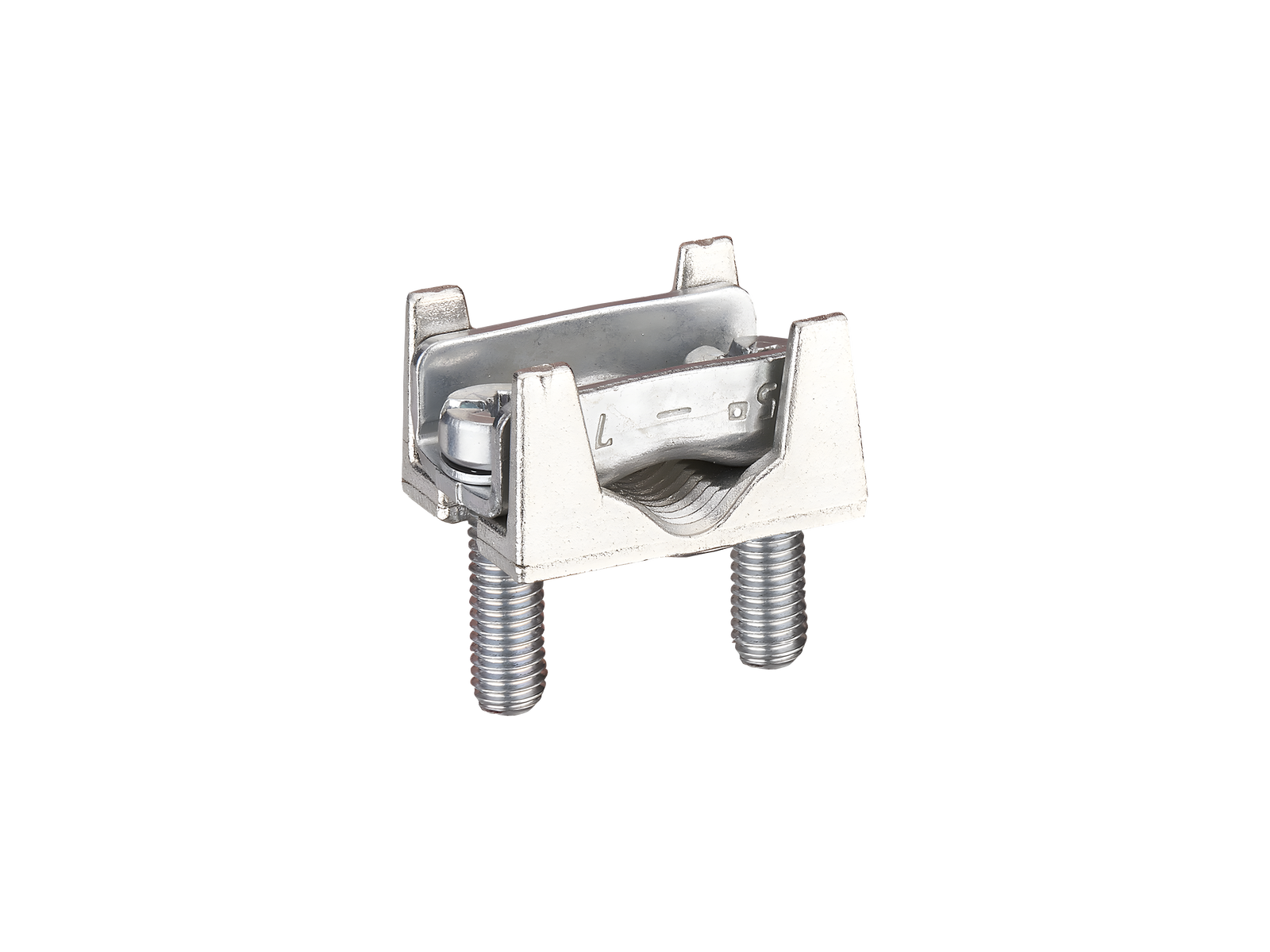

wedge clamp terminal

The picture may show a similar product.

Description

Part No.: 33734 000A

wedge clamp terminal

for Cu 10 - 95 mm²

size 00

for Cu 10 - 95 mm²

System

185Power

Product group 12
Subgroup 70
pack size 3
EAN 4021267337346
ECLASS 14.0 27142190
ETIM 5.0 EC002498
ETIM 8.0 EC002498
ETIM 10.0 EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

EAC Type: AC-A

Technical data

Details IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Mechanical data
weight: 3,0 kg/100
Terminal points
prism terminal
screw drive: S5
wire stripping: 20 mm
min. cross-section: 10 mm²
max. cross-section: 95 mm²
re: 10 - 10 mm²
rm: 16 - 95 mm²
f: 10 - 95 mm²
f + AE: 10 - 70 mm²
(f + AE may not fit with max. cross-section)
sm: 35 - 95 mm²
Md min.: 2,4 Nm
Md max.: 3,6 Nm
Not suitable for aluminium cables !
Material properties
halogen-free: Yes

Application notes

Not suitable for aluminium cables !

determined by main product

Links (Prices, CAD data)

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD data WSCAD

Downloads

| General technical information

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

| Text for specification - GAEB90 (in German) (*.d81)
