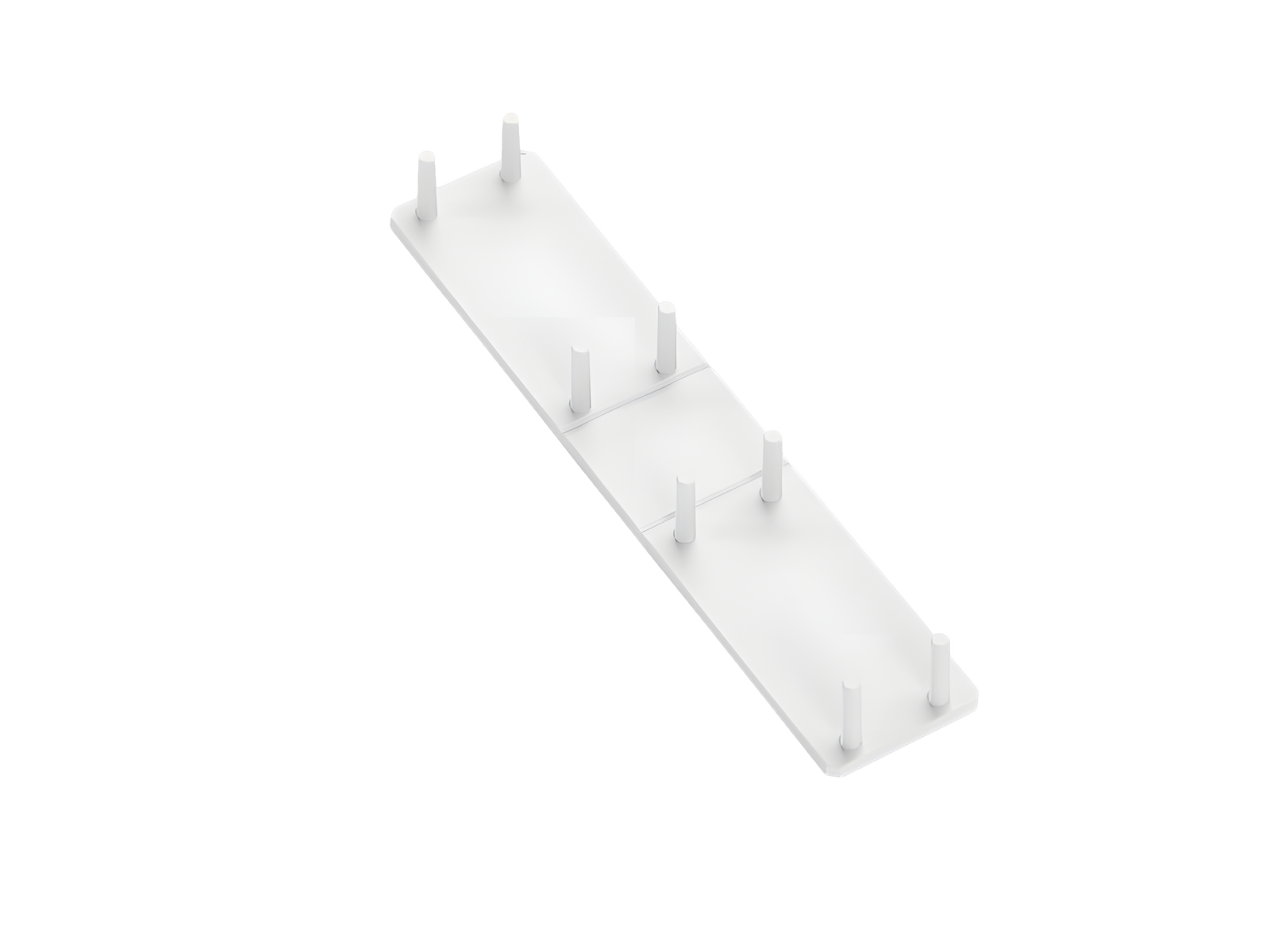

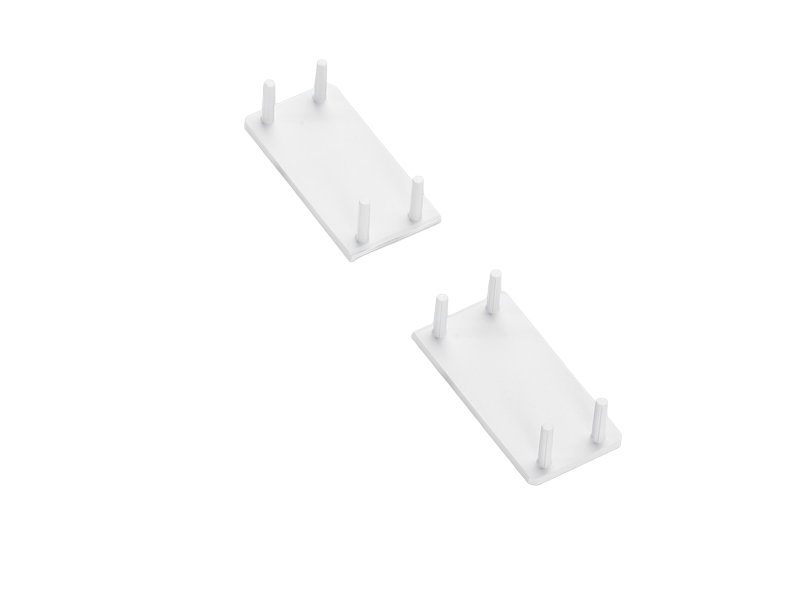

rear touch-safe protection cover (33761)

The picture may show a similar product.

Description

Part No.: 33761000A

rear touch-safe protection cover

rear protection for Phase L1

System

185Power

Product group 12
Subgroup 70
pack size 5
EAN 4021267337612
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Mechanical data
weight: 2.0 kg/100

Application notes

short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

| Text for specification - GAEB90 (in German) (*.d81)

Usage

33708000A
QUADRON®185Power
NH in-line fuse base 630 A
size 3
screw M12
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33706000A
QUADRON®185Power
NH in-line fuse base 250 A
size 1
screw M12
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33707000A
QUADRON®185Power
NH in-line fuse base 400 A
size 2
screw M12
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33585000A
QUADRON®185Power
in-line fuse switch-disconnector 630 A
size 3, 3-pole switchable
V-clamp 240 mm²
terminal body steel, pressure piece brass
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

33533000A
QUADRON®185Power
in-line fuse switch-disconnector 630 A
size 3, 3-pole switchable
V-clamp 150 mm²
terminal body alu, pressure piece brass
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

33584000A
QUADRON®185Power
in-line fuse switch-disconnector 400 A
size 2, 3-pole switchable
V-clamp 240 mm²
terminal body steel, pressure piece brass
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

33526000A
QUADRON®185Power
in-line fuse switch-disconnector 250 A
size 1, 1-pole switchable
V-clamp 120 mm²
terminal body alu, pressure piece brass
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

33571000A
QUADRON®185Power
in-line fuse switch-disconnector 250 A
size 1, 1-pole switchable
V-clamp 150 mm²
terminal body alu, pressure piece brass, XL variant
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

33576000A
QUADRON®185Power
in-line fuse switch-disconnector 630 A
size 3, 3-pole switchable
V-clamp 185 mm²
terminal body steel, pressure piece steel
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

33536000A
QUADRON®185Power
in-line fuse switch-disconnector 250 A
size 1, 1-pole switchable
V-clamp 150 mm²
terminal body alu, pressure piece brass
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

33523000A
QUADRON®185Power
in-line fuse switch-disconnector 630 A
size 3, 3-pole switchable
V-clamp 120 mm²
terminal body alu, pressure piece brass
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

33570000A
QUADRON®185Power
in-line fuse switch-disconnector 630 A
size 3, 3-pole switchable
V-clamp 150 mm²
terminal body alu, pressure piece brass, XL variant
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

33522000A
QUADRON®185Power
in-line fuse switch-disconnector 400 A
size 2, 3-pole switchable
V-clamp 120 mm²
terminal body alu, pressure piece brass
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

33532000A
QUADRON®185Power
in-line fuse switch-disconnector 400 A
size 2, 3-pole switchable
V-clamp 150 mm²
terminal body alu, pressure piece brass
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

33716000A
QUADRON®185Power
in-line fuse switch-disconnector 250 A
size 1, 1-pole switchable
screw M12
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33569000A
QUADRON®185Power
in-line fuse switch-disconnector 400 A
size 2, 3-pole switchable
V-clamp 150 mm²
terminal body alu, pressure piece brass, XL variant
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

33575000A
QUADRON®185Power
in-line fuse switch-disconnector 400 A
size 2, 3-pole switchable
V-clamp 185 mm²
terminal body steel, pressure piece steel
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

33586000A
QUADRON®185Power
in-line fuse switch-disconnector 250 A
size 1, 1-pole switchable
V-clamp 240 mm²
terminal body steel, pressure piece brass
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

33577000A
QUADRON®185Power
in-line fuse switch-disconnector 250 A
size 1, 1-pole switchable
V-clamp 185 mm²
terminal body steel, pressure piece steel
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

33538000A
QUADRON®185Power
in-line fuse switch-disconnector 630 A
size 3, 1-pole switchable
V-clamp 150 mm²
terminal body alu, pressure piece brass
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

33588000A
QUADRON®185Power
in-line fuse switch-disconnector 630 A
size 3, 1-pole switchable
V-clamp 240 mm²
terminal body steel, pressure piece brass
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

33723000A
QUADRON®185Power
in-line fuse switch-disconnector 630 A
size 3, 3-pole switchable, with fuse monitoring
screw M12
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33722000A
QUADRON®185Power
in-line fuse switch-disconnector 400 A
size 2, 3-pole switchable, with fuse monitoring
screw M12
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33702000A
QUADRON®185Power
in-line fuse switch-disconnector 400 A
size 2, 3-pole switchable
screw M12
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33579000A
QUADRON®185Power
in-line fuse switch-disconnector 630 A
size 3, 1-pole switchable
V-clamp 185 mm²
terminal body steel, pressure piece steel
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

33573000A
QUADRON®185Power
in-line fuse switch-disconnector 630 A
size 3, 1-pole switchable
V-clamp 150 mm²
terminal body alu, pressure piece brass, XL variant
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

33528000A
QUADRON®185Power
in-line fuse switch-disconnector 630 A
size 3, 1-pole switchable
V-clamp 120 mm²
terminal body alu, pressure piece brass
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

33587000A
QUADRON®185Power
in-line fuse switch-disconnector 400 A
size 2, 1-pole switchable
V-clamp 240 mm²
terminal body steel, pressure piece brass
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

33537000A
QUADRON®185Power
in-line fuse switch-disconnector 400 A
size 2, 1-pole switchable
V-clamp 150 mm²
terminal body alu, pressure piece brass
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

33527000A
QUADRON®185Power
in-line fuse switch-disconnector 400 A
size 2, 1-pole switchable
V-clamp 120 mm²
terminal body alu, pressure piece brass
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

33572000A
QUADRON®185Power
in-line fuse switch-disconnector 400 A
size 2, 1-pole switchable
V-clamp 150 mm²
terminal body alu, pressure piece brass, XL variant
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

33717000A
QUADRON®185Power
in-line fuse switch-disconnector 400 A
size 2, 1-pole switchable
screw M12
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33721000A
QUADRON®185Power
in-line fuse switch-disconnector 250 A
size 1, 3-pole switchable, with fuse monitoring
screw M12
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33578000A
QUADRON®185Power
in-line fuse switch-disconnector 400 A
size 2, 1-pole switchable
V-clamp 185 mm²
terminal body steel, pressure piece steel
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

33703000A
QUADRON®185Power
in-line fuse switch-disconnector 630 A
size 3, 3-pole switchable
screw M12
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33718000A
QUADRON®185Power
in-line fuse switch-disconnector 630 A
size 3, 1-pole switchable
screw M12
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33521000A
QUADRON®185Power
in-line fuse switch-disconnector 250 A
size 1, 3-pole switchable
V-connection 120 mm²
terminal body alu, pressure piece brass
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

33583000A
QUADRON®185Power
in-line fuse switch-disconnector 250 A
size 1, 3-pole switchable
V-clamp 240 mm²
terminal body steel, pressure piece brass
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

33568000A
QUADRON®185Power
in-line fuse switch-disconnector 250 A
size 1, 3-pole switchable
V-clamp 150 mm²
terminal body alu, pressure piece brass, XL variant
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

33531000A
QUADRON®185Power
in-line fuse switch-disconnector 250 A
size 1, 3-pole switchable
V-clamp 150 mm²
terminal body alu, pressure piece brass
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

33574000A
QUADRON®185Power
in-line fuse switch-disconnector 250 A
size 1, 3-pole switchable
V-clamp 185 mm²
terminal body steel, pressure piece steel
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

33701000A
QUADRON®185Power
in-line fuse switch-disconnector 250 A
size 1, 3-pole switchable
screw M12
for busbars: 30, 40, 60, 80, 100, 120 x 10
More
