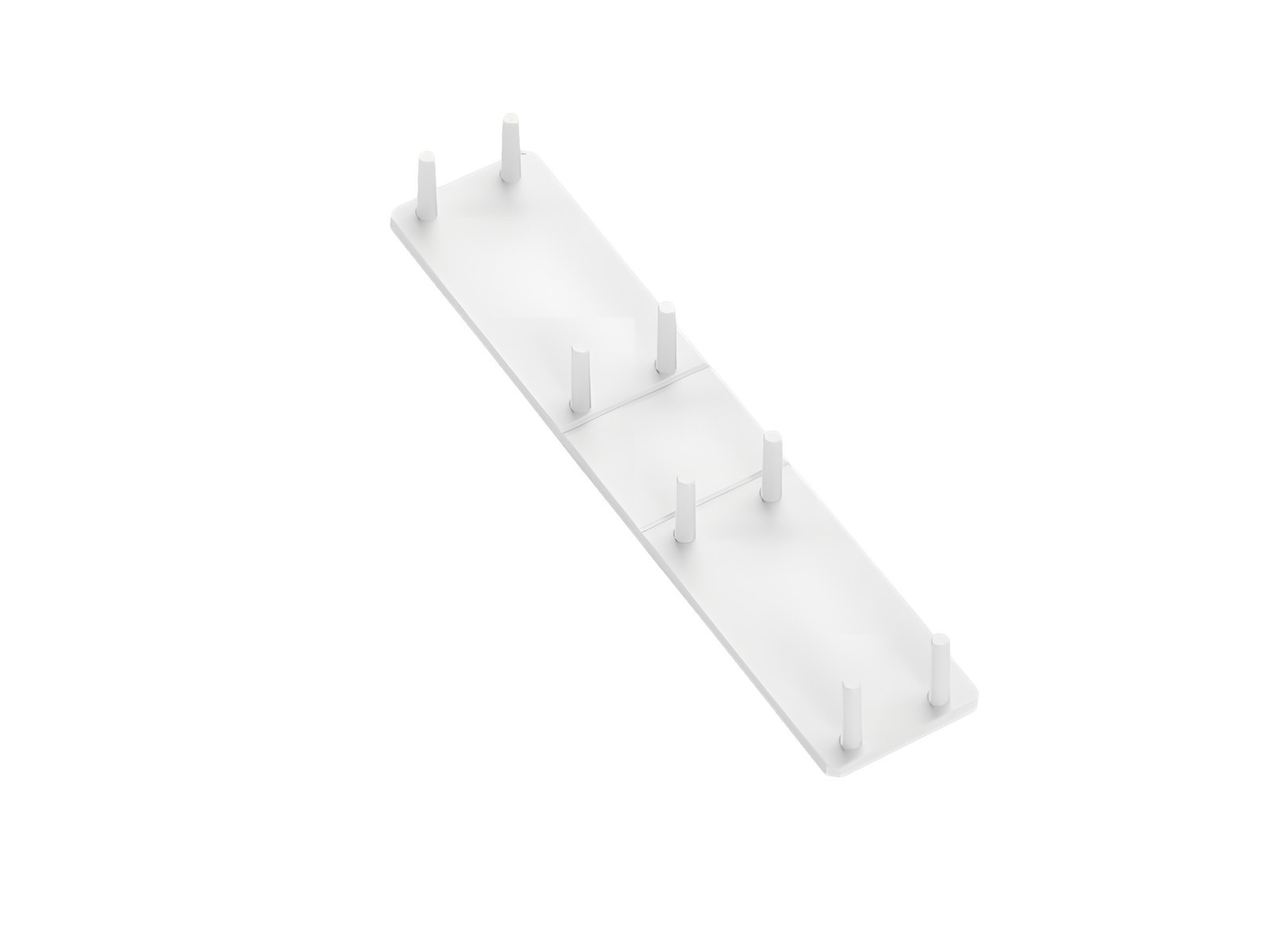

rear touch-safe protection cover (33761)

The picture may show a similar product.

Description

Part No.: 33761000A

rear touch-safe protection cover

rear protection for Phase L1

System

185Power

Product group	12
Subgroup	70

pack size	5
EAN	4021267337612

ECLASS 6.1	27142190
ECLASS 7.1	27142190
ETIM 4.0	EC002498
ETIM 5.0	EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only

Mechanical data
weight:	2.0 kg/100

Application notes


short-circuit withstandability:	not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| CAD model 3D STP

| Data packet EPlan (*.edz)

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

| Text for specification - GAEB90 (in German) (*.d81)

Usage

33708000A
QUADRON^®185Power
NH in-line fuse base 630 A
size 3
screw M12
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33706000A
QUADRON^®185Power
NH in-line fuse base 250 A
size 1
screw M12
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33707000A
QUADRON^®185Power
NH in-line fuse base 400 A
size 2
screw M12
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33716000A
QUADRON^®185Power
in-line fuse switch-disconnector 250 A
size 1, 1-pole switchable
screw M12
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33702000A
QUADRON^®185Power
in-line fuse switch-disconnector 400 A
size 2, 3-pole switchable
screw M12
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33722000A
QUADRON^®185Power
in-line fuse switch-disconnector 400 A
size 2, 3-pole switchable, with fuse monitoring
screw M12
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33723000A
QUADRON^®185Power
in-line fuse switch-disconnector 630 A
size 3, 3-pole switchable, with fuse monitoring
screw M12
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33721000A
QUADRON^®185Power
in-line fuse switch-disconnector 250 A
size 1, 3-pole switchable, with fuse monitoring
screw M12
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33717000A
QUADRON^®185Power
in-line fuse switch-disconnector 400 A
size 2, 1-pole switchable
screw M12
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33703000A
QUADRON^®185Power
in-line fuse switch-disconnector 630 A
size 3, 3-pole switchable
screw M12
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33718000A
QUADRON^®185Power
in-line fuse switch-disconnector 630 A
size 3, 1-pole switchable
screw M12
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33701000A
QUADRON^®185Power
in-line fuse switch-disconnector 250 A
size 1, 3-pole switchable
screw M12
for busbars: 30, 40, 60, 80, 100, 120 x 10
More
