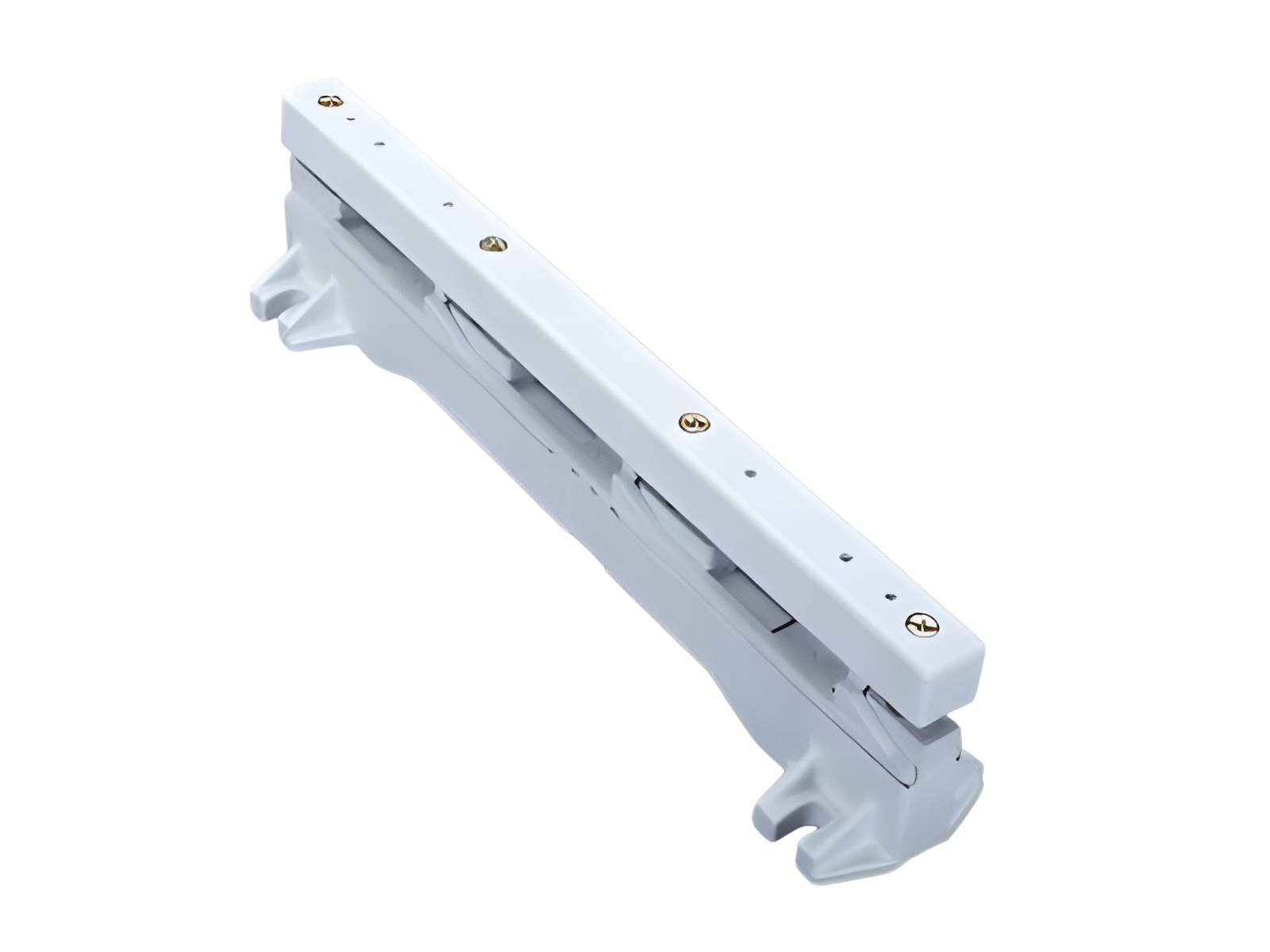

Part No.: 01479000
universal busbar support
for undrilled flat busbars 30, 40, 50, 60 x 10
for busbars 30, 40, 50, 60 x 10
System
100Energy
Advantages of the product
Type tested at 600mm busbar support separation and 60 x 10mm with external screw holes
can also be used as centre support.
| Product group | 06 |
| Subgroup | 21 |
| pack size | 4 |
| EAN | 4021267014797 |
| catalog page | 2015 : 3.1 |
| ECLASS 6.1 | 27400607 |
| ECLASS 7.1 | 27400607 |
| ETIM 4.0 | EC001166 |
| ETIM 5.0 | EC001166 |
Standards
IEC 61439-1:2011
Approvals
EAC
EAC Type: SB
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 61439-1:2011 |
| Electrical data IEC | |
| rated voltage (IEC) AC: | 800 V |
| rated isolation voltage Ui AC: | 1000 V |
| rated surge voltage Uimp : | 8 kV |
| The insulation performance of the article depends on the installation conditions. | |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0.0 W.
(The power dissipation at full load would be 0.0 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| max. permitted voltage (IEC) DC: | 1500 V |
| short-circuit capacity IEC / EN : Ipk max. = 85 kA (busbar 60x10, 2 busbar supports in 300 mm distance) further data see short-circuit diagram |
| Mechanical data | |
| W x H x D: | 62 x 320 x 70 |
| weight: | 47.1 kg/100 |
| poles: | 3-pole |
| for busbars: | 30, 40, 50, 60 x 10 |
Tightening torque of the screws: 4 Nm
