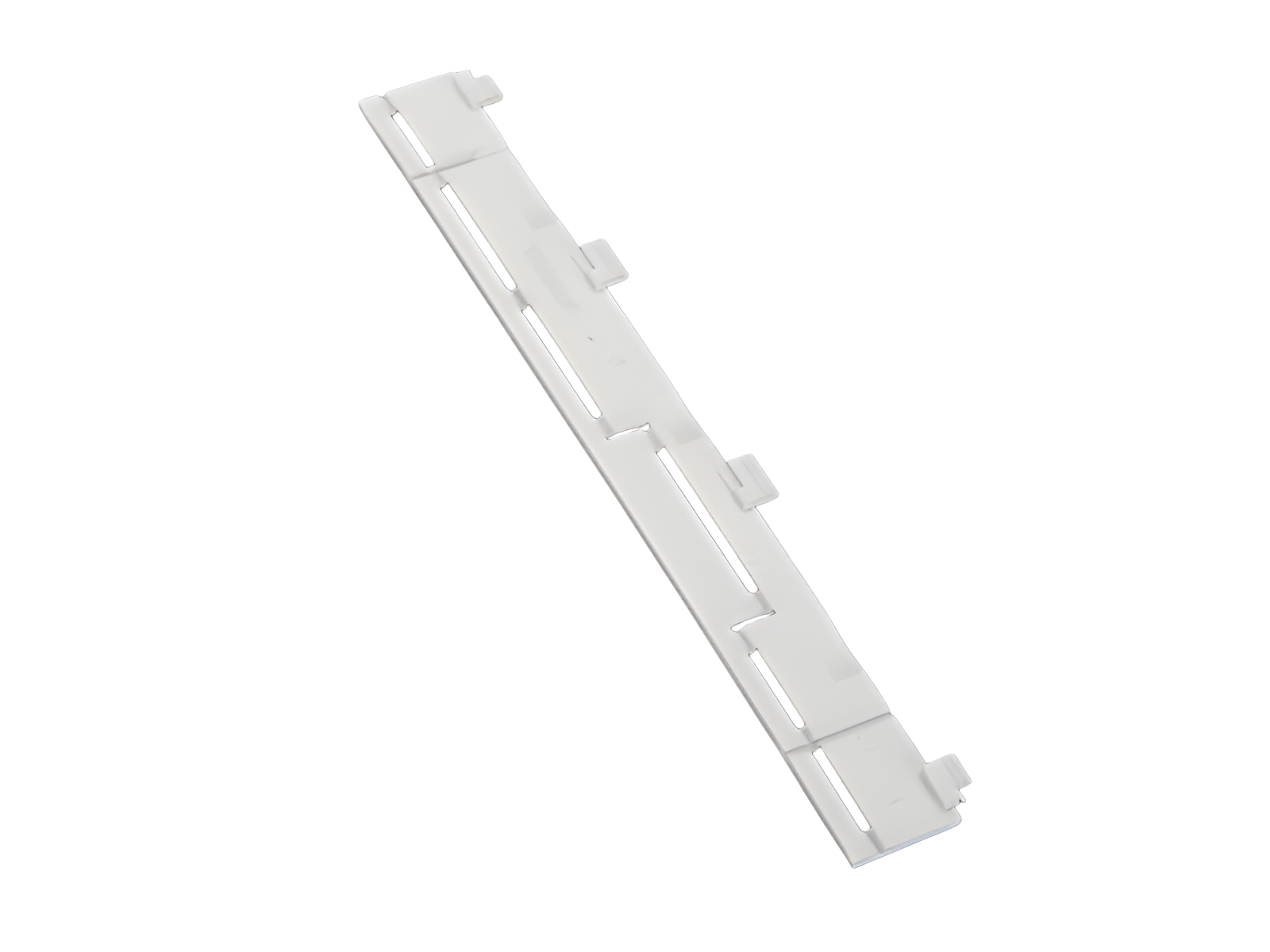

shock protection cover (79663)

The picture may show a similar product.

Description

Part No.: 79663000

shock protection cover

attachable on either side

for strip covers

System

60Classic

Product group 01
Subgroup 36
pack size 10
EAN 4021267796631
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002936
ETIM 5.0 EC002936

Approvals

Standards

IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-3:2010 + A1:2013 + A2:2019

Approvals

DNV GL

Technical data

Details IEC
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-3:2010 + A1:2013 + A2:2019

Electrical data

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0.0 W.

(The power dissipation at full load would be 0.0 W.)

Mechanical data
W x H x D: 2 x 195 x 30
weight: 1.3 kg/100

Application notes

short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| CAD model 3D STP

| Data packet EPlan (*.edz)

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

01980000
D0 strip cover
E 18
1-fold, 27 mm wide
More

01981000
D0 strip cover
E 18
2-fold, 54 mm wide
More

31073000
D strip cover
E 33
2-fold, elevated, 114 mm wide
More

01424000
D0 strip cover
E 18
1 1/3-fold, 36 mm wide
More

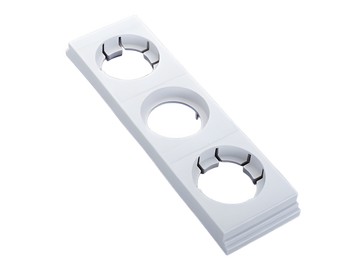

31071000
D strip cover
E 33
1-fold, elevated, 57 mm wide
More

31072000
D strip cover
E 27
2-fold, elevated, 84 mm wide
More

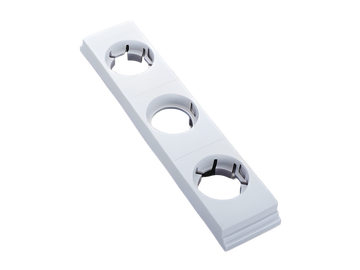

31070000
D strip cover
E 27
1-fold, elevated, 42 mm wide
More

31950000
CUSTO®60Classic
D-fuse base, busbar mounted, 42mm
touch protected, screw-in gauge ring
E 27 / 3P
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

31936000
CUSTO®60Classic
D0-fuse base, busbar mounted, 36mm
E 18 / 63 A
touch protected
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

31935000
CUSTO®60Classic
D0-fuse base, busbar mounted, 27mm
E 18 / 63 A
touch protected
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More
