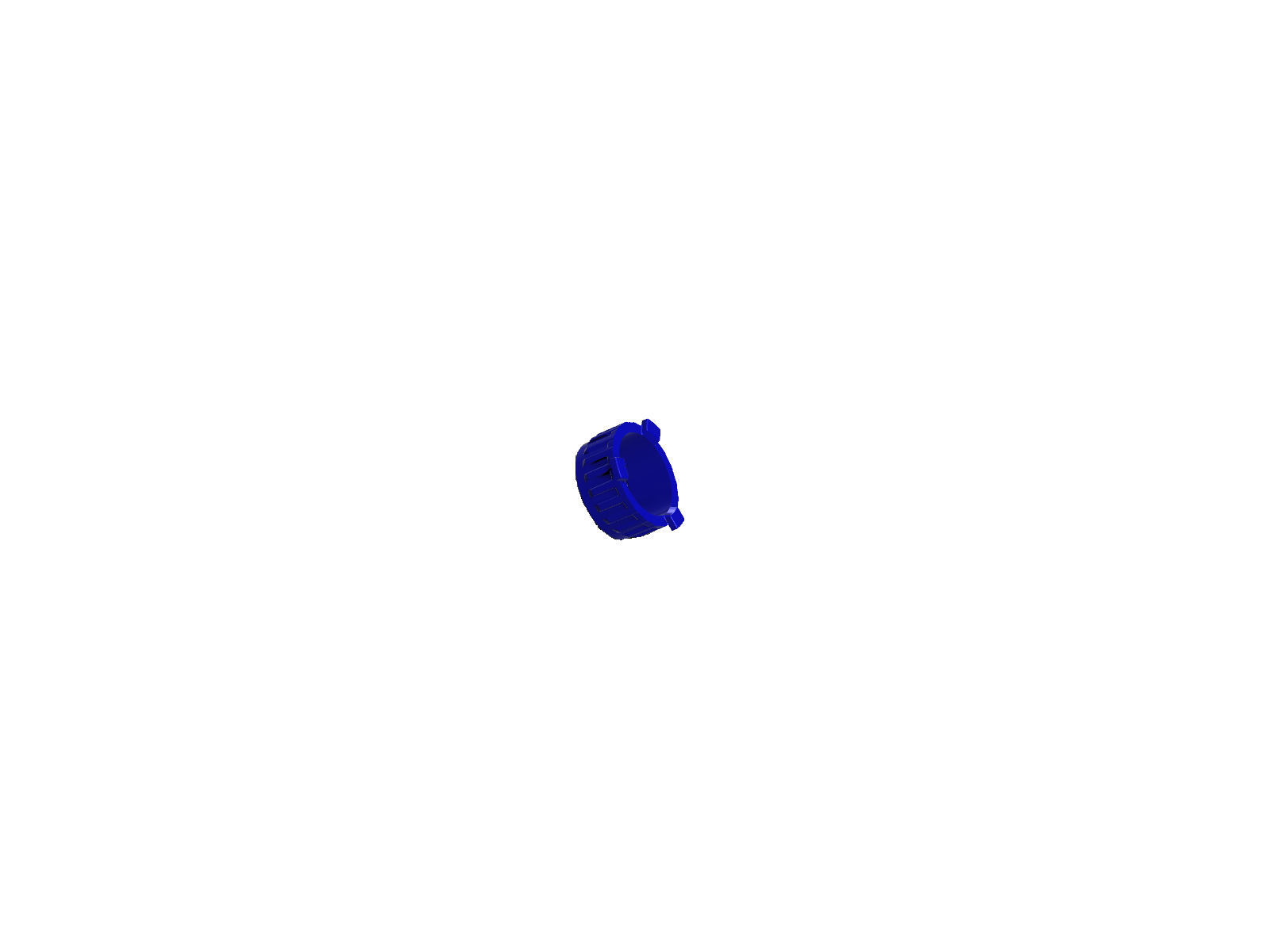

special gauge element 20 A (31320)

The picture may show a similar product.

Description

Part No.: 31320 000A

special gauge element 20 A

blue

for fuse links D02

NEW

Product group 22
Subgroup 03
pack size 30
EAN 4021267313203
ETIM 5.0 EC000278
ETIM 8.0 EC000278

Approvals

Standards

IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-3:2010 + A1:2013 + A2:2019

Technical data

Details IEC
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-3:2010 + A1:2013 + A2:2019
Electrical data IEC
rated current (IEC): 20 A

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0.0 W.

(The power dissipation at full load would be 0.0 W.)

Mechanical data
weight: 0.1 kg/100
Material properties
halogen-free: Yes

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

31260 000A
SECUR®Crossboard
switch-disconnector-fuse
Size D02 / E 18
for D01 and D02 fuses
35 A / 3P
indication (LED) of a tripped fuse link
operator independent switching (snap-action mechanism)
connection bottom
NEW
More
