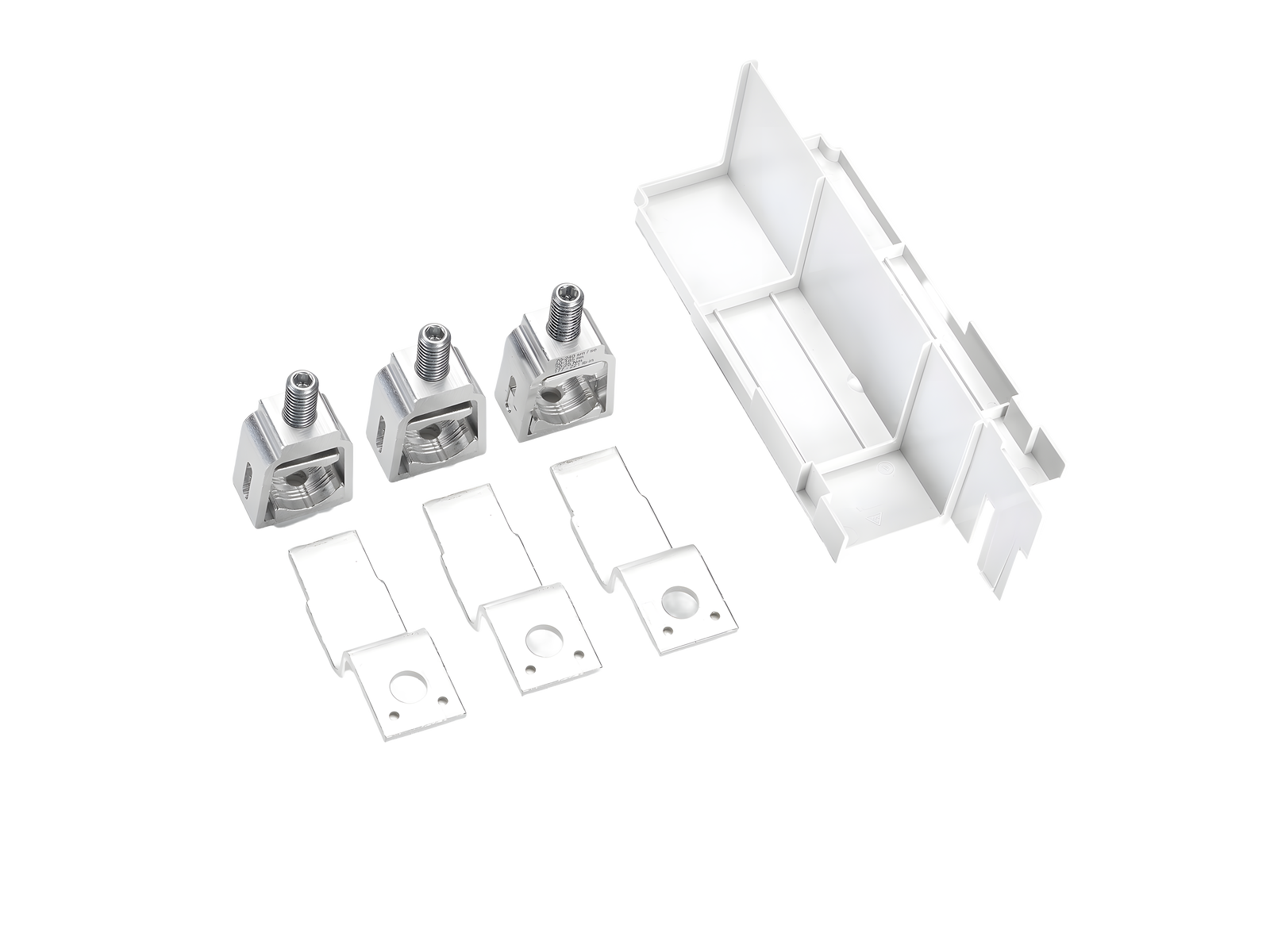

The picture may show a similar product.
Part No.: 33649 000A
connection set box terminal 120 mm² - 300 mm²
including rear cover
size 1 - 3
System
185Power
| Product group | 18 |
| Subgroup | 70 |
| pack size | 1 |
| EAN | 4021267336493 |
| ECLASS 14.0 | 27142190 |
| ETIM 5.0 | EC002498 |
| ETIM 8.0 | EC002498 |
| ETIM 10.0 | EC002498 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
EAC Type: AC-A
| Details IEC | |
| Standards | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
Electrical data
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0.0 W.
(The power dissipation at full load would be 0.0 W.)
| Mechanical data | |
| weight: | 88.2 kg/100 |
| Terminal points | |
| min. cross-section: | 120 mm² |
| max. cross-section: | 300 mm² |
| rm: | 120 - 300 mm² |
| se: | 185 - 300 mm² |
| sm: | 150 - 300 mm² |
|
Suitable for aluminium cables. When using aluminium cables, observe the maintenance instructions. |
|
| Material properties | |
| halogen-free: | Yes |
| Suitable for aluminium cables. When using aluminium cables, observe the maintenance instructions. |
|
