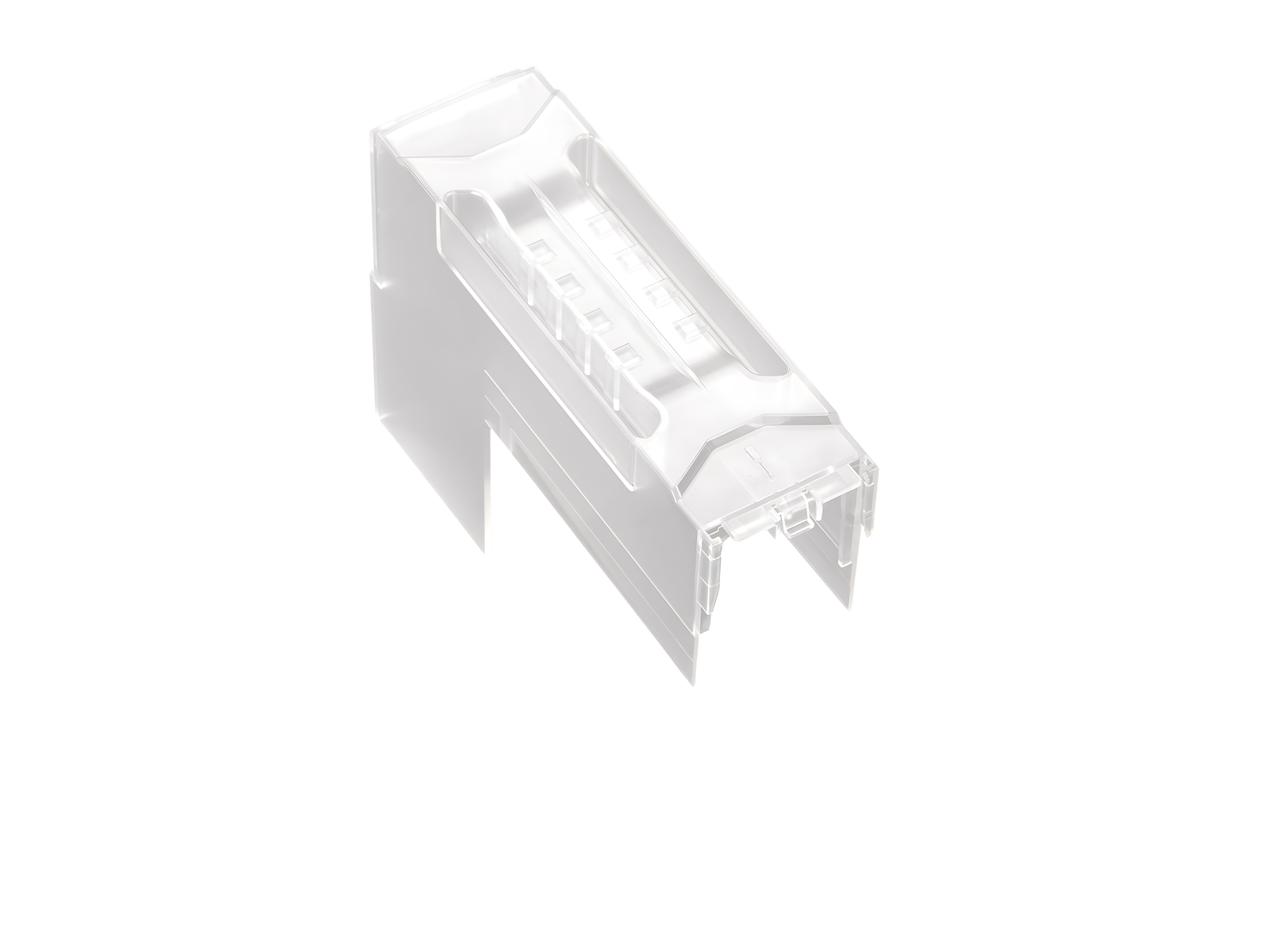

terminal compartment cover, high version, connection top (33726)

The picture may show a similar product.

Description

Part No.: 33726000A

terminal compartment cover, high version, connection top

für 33700, 33715, 33720, 33770, 33771, 33772

size 00

System

185Power

Product group 12
Subgroup 70
pack size 1
EAN 4021267337261
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Mechanical data
weight: 13.4 kg/100

Application notes

short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

| Text for specification - GAEB90 (in German) (*.d81)

Usage

33770000A
QUADRON®185Power
in-line fuse switch-disconnector 160 A
Size 00, 3-pole switchable
high version with box terminal 70 mm²
for busbars: 30, 40, 60, 80, 100, 120 x 10
