end cap (31027)

The picture may show a similar product.

Description

Part No.: 31027000B

end cap

for 2-pole and 3-pole comb-type busbars 16 mm²

Product group 06
Subgroup 30
pack size 50
EAN 4021267310271
ECLASS 6.1 27370390
ECLASS 7.1 27370390
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 61439-1:2020

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
Mechanical data
W x H x D: 5 x 16 x 16
weight: 0.1 kg/100

Application notes

short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| CAD model 3D STP

| Data packet EPlan (*.edz)

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

31312000A
3-pole comb-type busbar, for E33, pitch 50 mm
80 A, 1 m long
16 mm²
More

31026000A
comb type busbar, 3-pole, fork type, pitch 27 mm
80 A, 1 m long
16 mm²
More

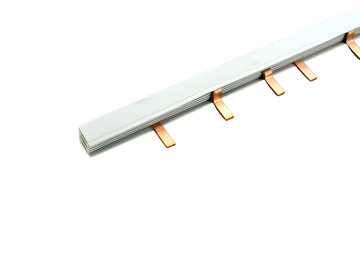

31310000A
3-pole comb-type busbar, for E27, pitch 40 mm
80 A, 1 m long
16 mm²
More

31102000A
comb-type busbar, 3-pole, bridge type, pitch 18 mm
80 A, 1 m long
16 mm²
More

31012000A
comb-type busbar, 3-pole, bridge type, pitch 27 mm
80 A, 1 m long
16 mm²
More
