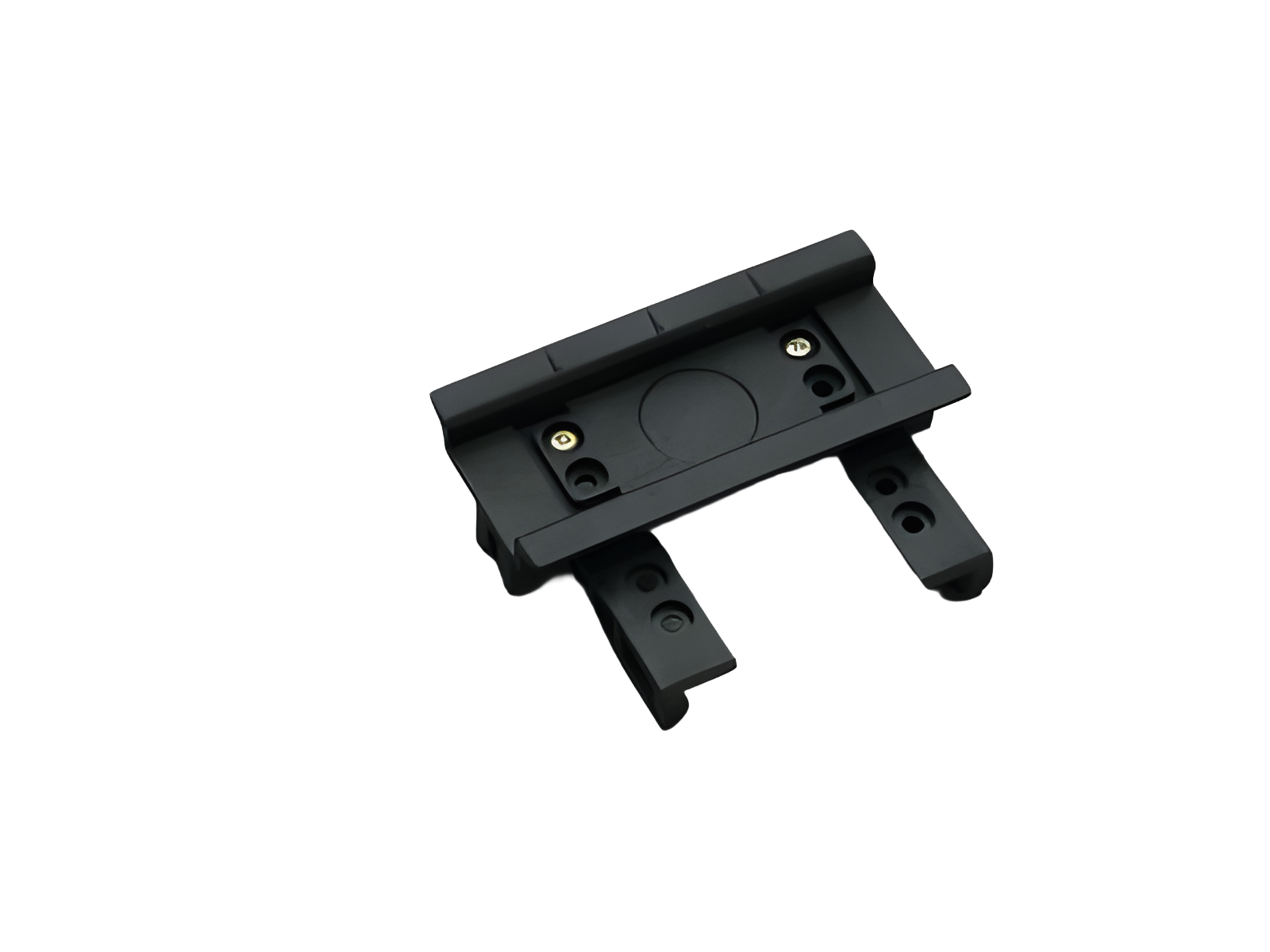

mounting rail 72 mm (32950)

The picture may show a similar product.

Description

Part No.: 32950000

mounting rail 72 mm

for busbar adapters

System

60Classic

Product group	05
Subgroup	57

pack size	10
EAN	4021267329501

catalog page

2020 : 3.10, 3.12

ECLASS 6.1	27370390
ECLASS 7.1	27370390
ETIM 4.0	EC000212
ETIM 5.0	EC001285

Approvals

Standards

IEC 61439-1:2011

UL 508

Approvals

CSA , UL , DNV GL , EAC

for UL feeder circuits >250V

type number: TS35-L

EAC Type: AC-A

UL file: E123577, UL category (for USA): NMTR https://www.ul.com

UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com

CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2011

Electrical data
short-circuit withstandability:	not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Details UL
Standards
UL 508

for UL feeder circuits >250V

Mechanical data
W x H x D:	72 x 57 x 19
weight:	2.0 kg/100

Links

Article master data, overviews and prices

Current metal surcharges

Downloads

| General technical information

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Declaration of conformity UKCA

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)
