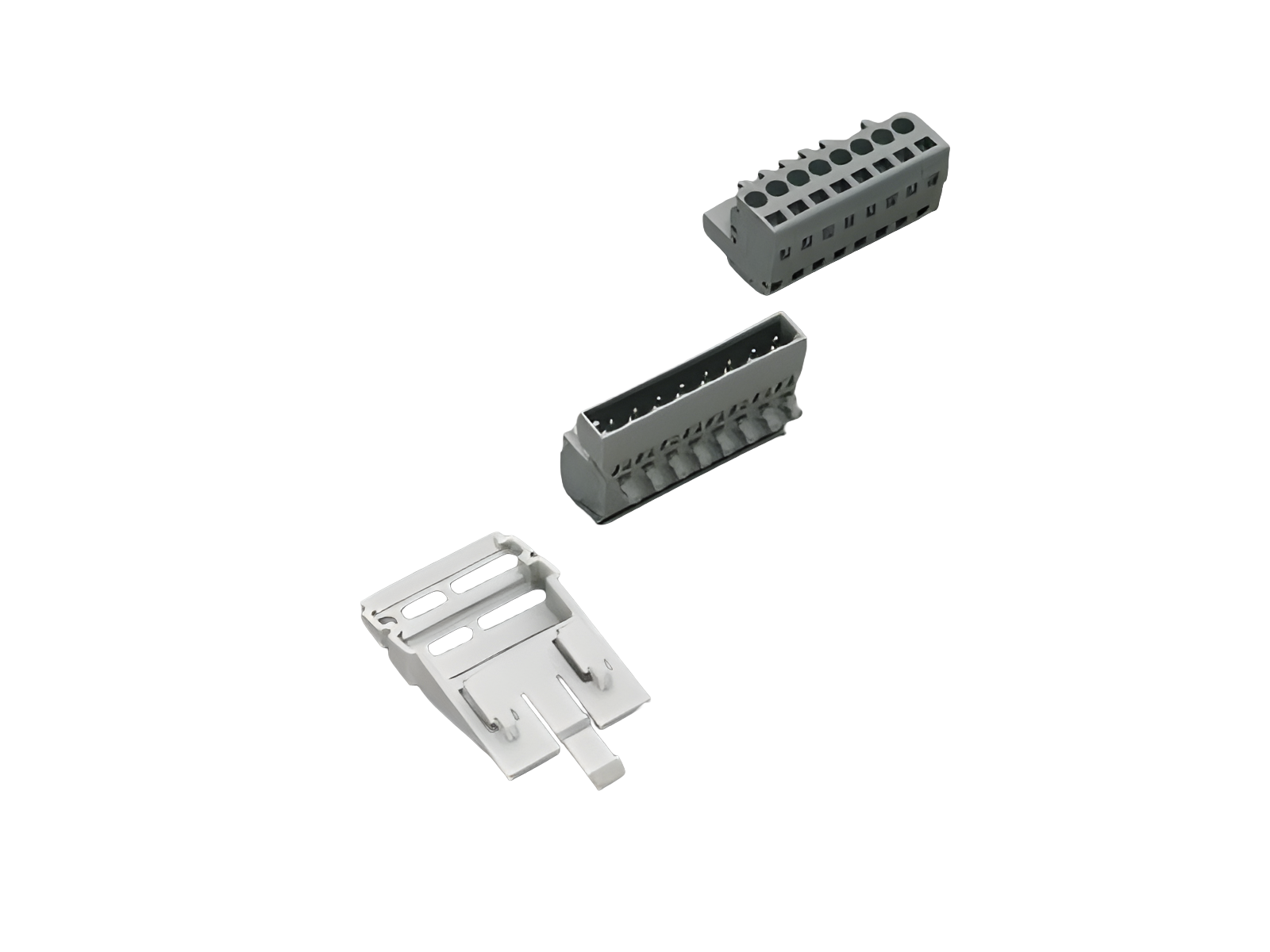

8-pole connector, with support, 250 V (32511)

The picture may show a similar product.

Description

Part No.: 32511000

8-pole connector, with support, 250 V

System

60Classic

Product group	05
Subgroup	57

pack size	10
EAN	4021267325114

catalog page

2020 : 3.10, 3.12

ECLASS 6.1	27141147
ECLASS 7.1	27141147
ETIM 4.0	EC000276
ETIM 5.0	EC000276

Approvals

Standards

IEC 61439-1:2011

UL 1977

Approvals

EAC

type number: 231-608, 232-208

EAC Type: AC-A

UL file: E45171, UL category (for USA): ECBT2 https://www.ul.com

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2011

Electrical data
short-circuit withstandability:	not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0.0 W.

(The power dissipation at full load would be 0.0 W.)

Details UL
Standards
UL 1977

Mechanical data
weight:	3.4 kg/100

Links

Article master data, overviews and prices

Current metal surcharges

Downloads

| General technical information

| EU declaration of conformity

| Declaration of conformity UKCA

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

32429000
EQUES^®60Classic
busbar adapter 16 A
for direct starter Allen-Bradley 140M-RC2E, Eaton PKZM0, Siemens S00, Schneider Electric GV2 with spring terminals
45 x 200, with leads AWG 14 (2.5 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32430000
EQUES^®60Classic
busbar adapter 25 A
1 adjustable mounting rail
45 x 200, with leads AWG 12 (4 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More
