spare part busbar adapter 160 A (32594)

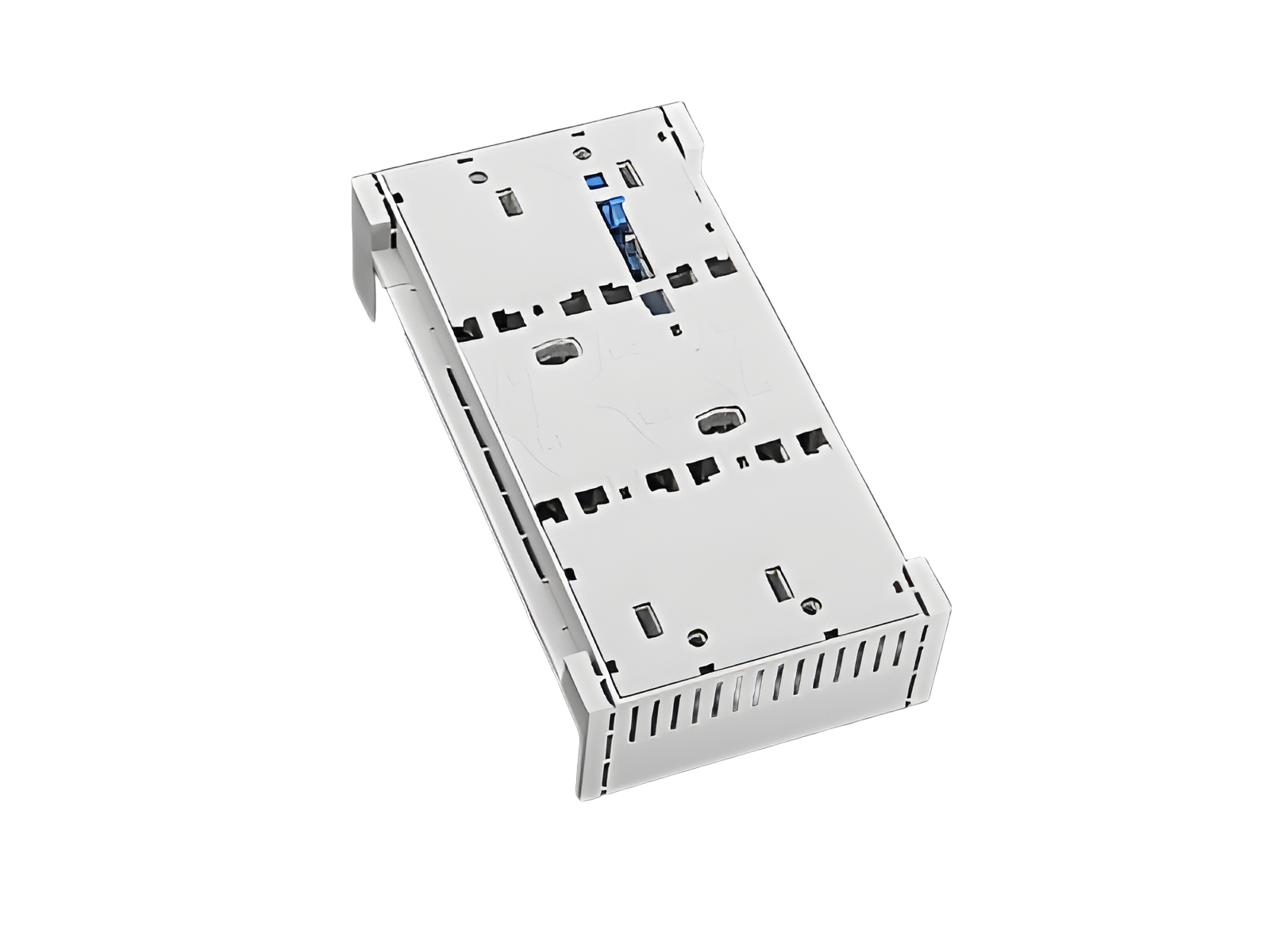

The picture may show a similar product.

Description

Part No.: 32594000

CrossLink®60Classic

spare part busbar adapter 160 A

busbar adapter base

with CrossLink® interface

System

60Classic

Advantages of the product

Spare slot mounting, busbar cover
Simple and safe clicking into place and making contact
Busbar supports can be mounted above each other for flat busbars

Product group 05
Subgroup 58
pack size 2
EAN 4021267325947
ECLASS 6.1 27370304
ECLASS 7.1 27370304
ETIM 4.0 EC001531
ETIM 5.0 EC001531

Approvals

Standards

IEC 61439-1:2020

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
Electrical data IEC
rated current (IEC): 160 A
rated voltage (IEC) AC: 690 V
rated voltage (IEC) DC: 440 V
rated isolation voltage Ui AC: 800 V
rated surge voltage Uimp : 6 kV
rated short-time withstand current Icw (1.0 s) max.: 4.5 kA

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 7,6 W.

(The power dissipation at full load would be 11,9 W.)

Supplementary data IEC

The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.
max. permitted voltage (IEC) AC: 725 V
max. permitted voltage (IEC) DC: 462 V
Mechanical data
W x H x D: 106 x 200 x 17
weight: 36,5 kg/100
poles: 3-pole

Application notes

There must be a clearance of at least 10 mm above the article to remove it from the busbar system.

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| Mounting instructions

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

03199000
QUADRON®60Classic
NH fuse-base 160 A
box terminal
size 00 / 3P
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33394000
QUADRON®60Classic
NH fuse switch-disconnector size 00, 160 A
screw M8
with electronic fuse monitoring
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33398000
QUADRON®60Classic
NH fuse switch-disconnector size 00, 160 A
screw M8
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33198000
QUADRON®60Classic
NH fuse switch-disconnector size 00, 160 A
box terminal
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33206000
QUADRON®60Classic
NH fuse switch-disconnector size 00, 160 A
box terminal
with electromechanical fuse monitoring
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33324000
QUADRON®60Classic
NH fuse switch-disconnector size 00, 160 A
box terminal
with electronic fuse monitoring
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More
