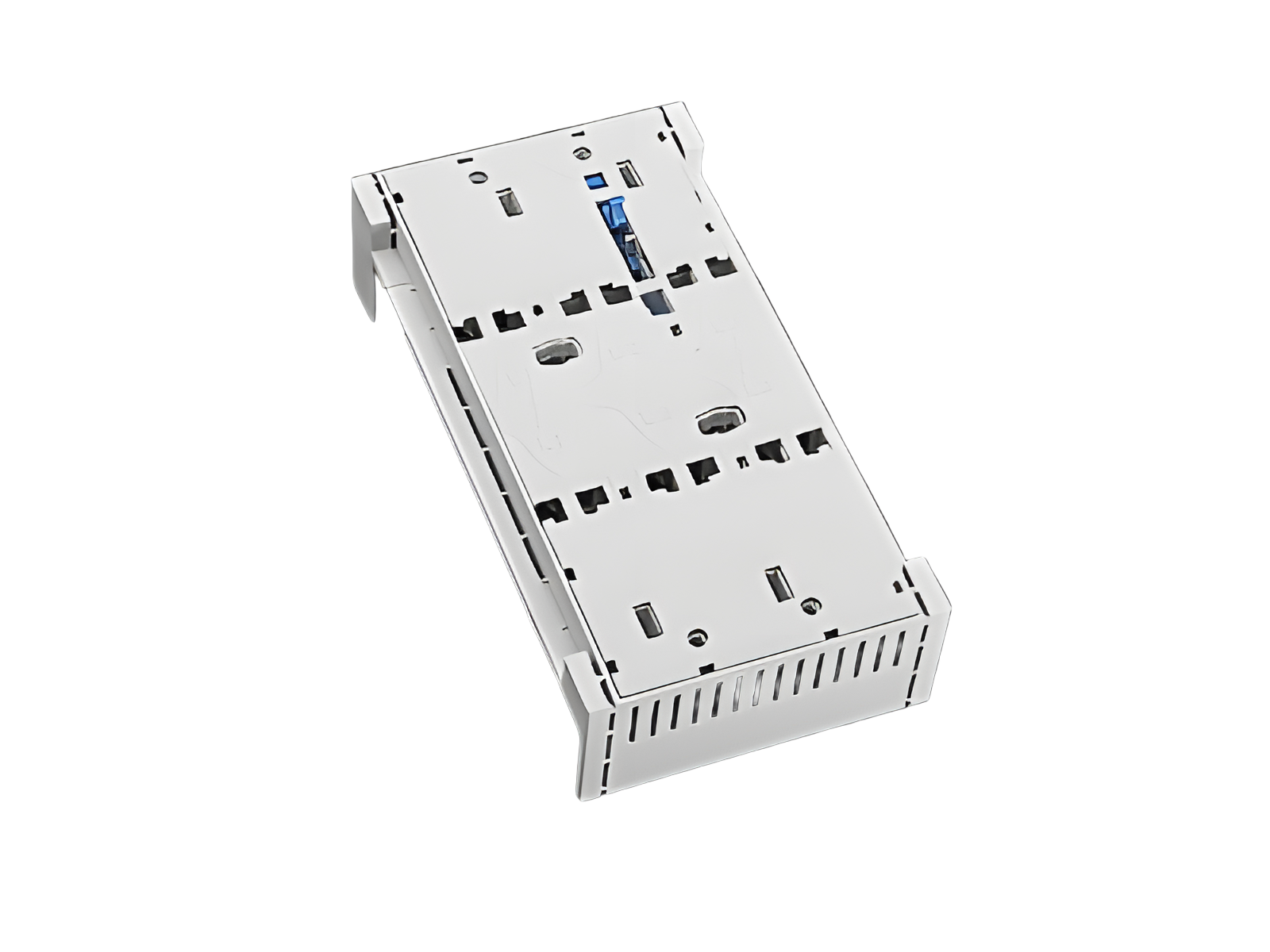

The picture may show a similar product.
Part No.: 32594000
CrossLink®60Classic
spare part busbar adapter 160 A
busbar adapter base
with CrossLink® interface
System
60Classic
Advantages of the product
Spare slot mounting, busbar cover
Simple and safe clicking into place and making contact
Busbar supports can be mounted above each other for flat busbars
| Product group | 05 |
| Subgroup | 58 |
| pack size | 2 |
| EAN | 4021267325947 |
| ECLASS 6.1 | 27370304 |
| ECLASS 7.1 | 27370304 |
| ETIM 4.0 | EC001531 |
| ETIM 5.0 | EC001531 |
Standards
IEC 61439-1:2020
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| rated current (IEC): | 160 A |
| rated voltage (IEC) AC: | 690 V |
| rated voltage (IEC) DC: | 440 V |
| rated isolation voltage Ui AC: | 800 V |
| rated surge voltage Uimp : | 6 kV |
| rated short-time withstand current Icw (1.0 s) max.: | 4.5 kA |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 7.6 W.
(The power dissipation at full load would be 11.9 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| max. permitted voltage (IEC) AC: | 725 V |
| max. permitted voltage (IEC) DC: | 462 V |
| Mechanical data | |
| W x H x D: | 106 x 200 x 17 |
| weight: | 36.5 kg/100 |
| poles: | 3-pole |
| There must be a clearance of at least 10 mm above the article to remove it from the busbar system. | |
