订货号 36104000B

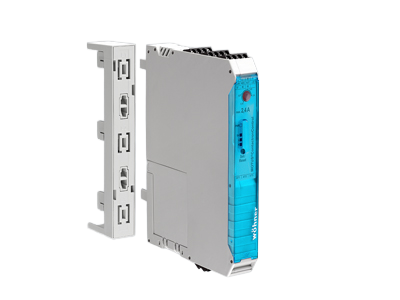

MOTUS®30Compact
交流半导体电动机起动器
0.18 - 2.4 A 直接和反向起动器
适用母线 12 x 5, 10
采用 CrossLink®Technology 技术
系统
30Compact 3P
产品优势
4种功能集成:
右侧保护
左侧保护
电机保护继电器
不间断保护至等级3
结构宽度 22.5mm
3千万次电气开关次数
| 产品组 | 21 |
分组 |
06 |
| 包装件数 | 1 |
| EAN | 4021267361044 |
| ECLASS 6.1 | 27370804 |
| ECLASS 7.1 | 27370804 |
| ETIM 4.0 | EC001037 |
| ETIM 5.0 | EC001037 |
标准
EN 60947-1:2015
EN 60947-4-2:2012
EN 61439-1:2012
EN 50581:2012
EN ISO 13849-1:2015
UL 60947-1
认证许可
UL , CCC , Atex
for UL feeder circuits >250V
型号: 36110.1
UL 文件: E360470, UL 类别 (适用美国) : NLDX https://www.ul.com
UL 文件: E360470, UL 类别 (适用加拿大) : NLDX7 https://www.ul.com
CCC认证: 2019010304252617
Type-Examination Certificate: PTB13AT3001
| Details IEC | |
| 标准 | |
|
EN 60947-1:2015 EN 60947-4-2:2012 EN 61439-1:2012 EN 50581:2012 EN ISO 13849-1:2015 |
| Electrical data IEC | |
| 额定电流（IEC）: | 2.4 A |
| 额定电压（IEC）AC: | 500 V |
| min. operating voltage AC: | 42 V |
| trigger characteristic: | Class 10A |
| set nominal current: | Yes |
| min. load current: | 0.18 A |
| max. switching frequency: | 2 Hz |
| switching cycles: | 30.000.000 |
| safety level: | SIL3 |
| reply contact: | 1 CO |
| rated frequency (IEC): | 50 / 60 Hz |
| rated isolation voltage Ui AC: | 500 V |
| 额定冲击耐受电压 Uimp: | 6 kV |
功率输出:
The power dissipation at a typical load of 80 % results to 3.5 W.
(The power dissipation at full load would be 5.5 W.)
| Details UL | |
| 标准 | |
| UL 60947-1 |
| for UL feeder circuits >250V |
| Electrical data UL | |
| 额定电流 (UL): | 2 A |
| 额定电压 (UL) AC: | 500 V |
| min. operating voltage AC: | 42 V |
| rated frequency (UL): | 50 / 60 Hz |
| SCCR unprotected max.: | 5 kA |
| 3 cycles (without OPD) @ 600 V AC | |
| SCCR protected max.: | 100 kA |
| 短路电流额定值: | 100 kA with JDDZ fuse Class J 175 A / 600 V AC |
| 机械数值 | |
| 宽 x 高 x 厚: | 22.5 x 160 x 156 |
| 重量: | 55.8 kg/100 |
| 极数: | 3线 |
| 适用母线: | 12 x 5, 10 |
| 防护等级: | IP20 |
| vertical installation position: | Yes |
| horizontal installation position: | No |
| 连接端 | |
| screw clamp connection | |
| screw drive: | 0,8x4 |
| wire stripping: | 8 mm |
| min. cross-section: | 0.2 mm² |
| 最大横截面积: | 2.5 mm² |
| Md min.: | 0.5 Nm |
| Md max.: | 0.6 Nm |
| 最小横截面积: | AWG 24 |
| max. cross-section UL: | AWG14 |
| torque (UL): | 4,4 - 5,3 lb-in |
|
螺钉端子(圆单股、细密、细密导线带导线套) |
|
| permitted degree of polution: | 2 |
| for UL feeder circuits >250V | |
