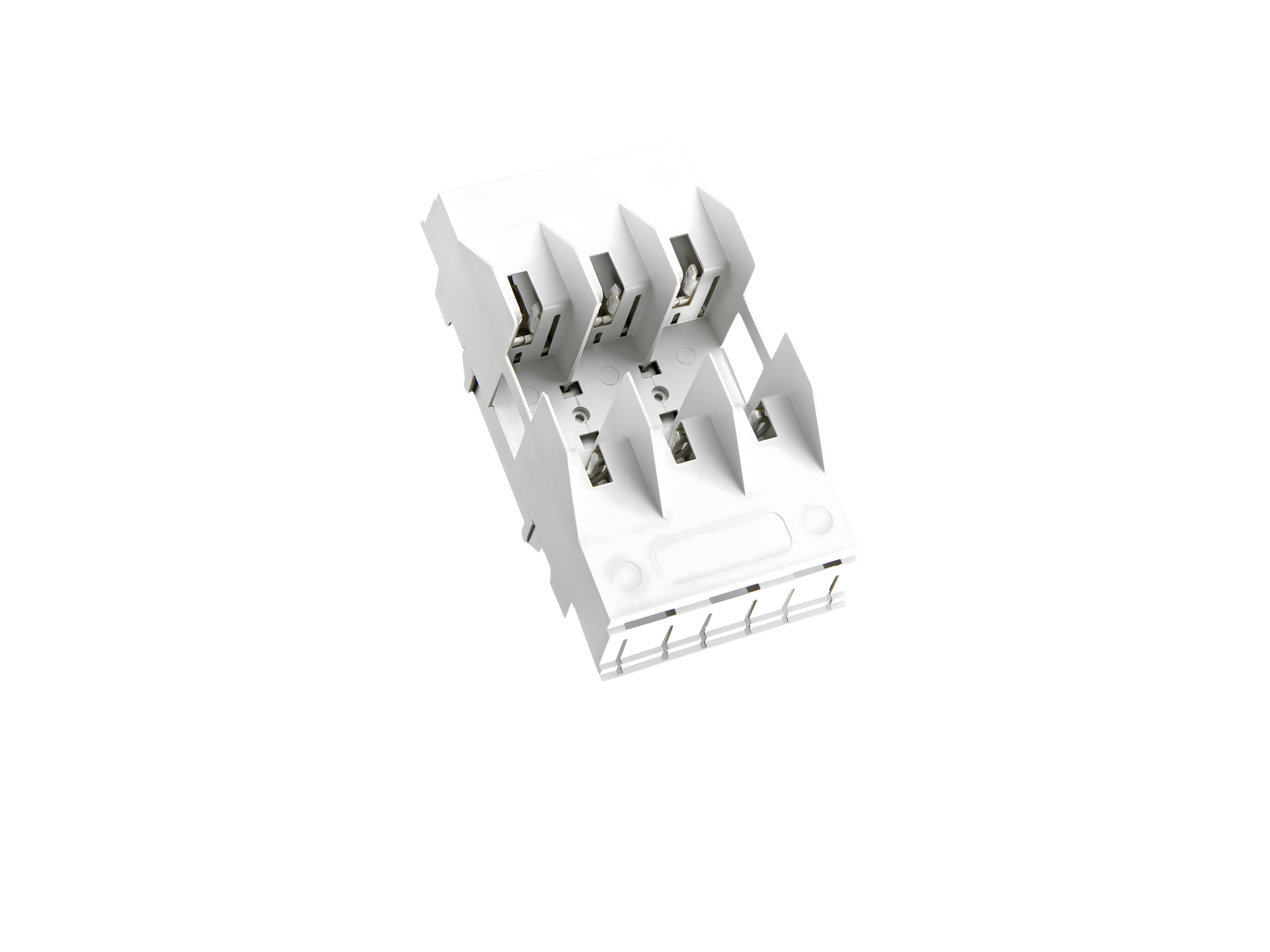

The picture may show a similar product.

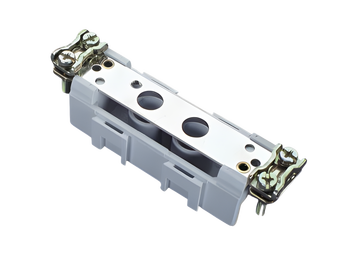

订货号 03212000
QUADRON®Panel
NH 熔断器座(固定式)，160A
双侧带螺钉
尺寸 00 / 3极，带长的防触摸保护盖
for mounting plate
系统
Panel
| 产品组 | 10 |
分组 |
15 |
| 包装件数 | 5 |
| EAN | 4021267032128 |
| ECLASS 6.1 | 27142106 |
| ECLASS 7.1 | 27142106 |
| ETIM 4.0 | EC000067 |
| ETIM 5.0 | EC000067 |
标准
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016
认证许可
DNV GL
型号: NH-00
| for fuse links size: | NH 000, NH 00 |
| fuse links acc. to standard: | IEC / HD 60269-2 |
| 所使用熔断器的允许损耗功率: | 12 W |
| Details IEC | |
| 标准 | |
|
IEC 60269-1:2006 + A1:2009 + A2:2014 IEC 60269-2:2013 + A1:2016 |
| Electrical data IEC | |
| 额定电流（IEC）: | 160 A |
| 额定电压（IEC）AC: | 690 V |
| 额定电压 （IEC） DC: | 440 V |
| 额定冲击耐受电压 Uimp: | 6 kV |
| 带熔断器时的分断能力: | 50 kA |
功率输出:
The power dissipation at a typical load of 80 % results to 8.0 W.
(The power dissipation at full load would be 12.5 W.)
| Supplementary data IEC | |
|
下述参数已经在特定条件下通过测试得到验证。开始设计之前，请联系维纳尔咨询这些条件。 |
| 最大电压 IEC AC: | 800 V |
| 最大电压 IEC DC: | 800 V |
| for fuse links IEC 60269-2 / DIN VDE 0636-201 size 00 up to 12W power dissipation |
| 机械数值 | |
| 宽 x 高 x 厚: | 99 x 200 x 88 |
| 重量: | 48.4 kg/100 |
| 极数: | 3线 |
| Mounting: | for mounting plate |
| 连接端 | |
| screw connection | |
| M8 | |
| screw drive: | SW13 |
| Md min.: | 12.0 Nm |
| Md max.: | 14.0 Nm |
| Not suitable for aluminium cables ! | |
| Not suitable for aluminium cables ! | |
| 所使用熔断器的允许损耗功率: | 12 W |
