The picture may show a similar product.
系统
60Classic
产品优势
Conductor ends ultrasonically sealed.

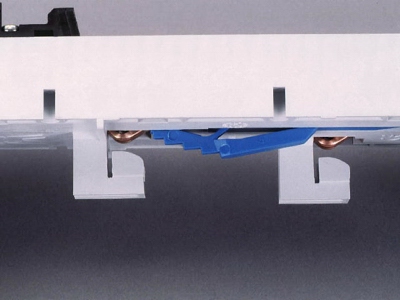

Click mechanism when pushing onto the busbar.
| 产品组 | 05 |
分组 |
24 |
| 包装件数 | 4 |
| EAN | 4021267320119 |
标准
IEC 61439-1:2020
UL 508
认证许可
CSA , UL
for UL feeder circuits >250V
型号: 6063
UL 文件: E123577, UL 类别 (适用美国) : NMTR2 https://www.ul.com
UL 文件: E123577, UL 类别 (适用加拿大) : NMTR8 https://www.ul.com
CSA 文件: 110285, CSA 等级: 3211-37 https://directories.csa-international.org
CCC 认证: 无需强制认证
| Details IEC | |
| 标准 | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| 端部供电（IEC）: | 63 A |
| 额定电压（IEC）AC: | 690 V |
| rated isolation voltage Ui AC: | 800 V |
| 额定冲击耐受电压 Uimp: | 6 kV |
| Details UL | |
| 标准 | |
| UL 508 |
| for UL feeder circuits >250V |
| Electrical data UL | |
| 额定电流 (UL): | 63 A |
| 额定电压 (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| 机械数值 | |
| 宽 x 高 x 厚: | 54 x 182 x 60 |
| 重量: | 25.6 kg/100 |
| 极数: | 3 极 |
| There must be a clearance of at least 12 mm above the article to remove it from the busbar system. | |
|

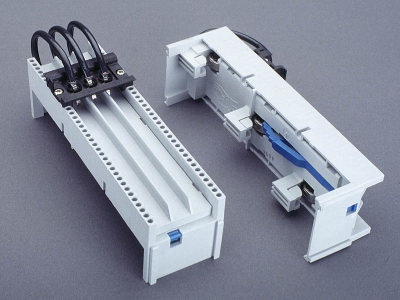

For safe mechanical and electrical connection of all commercially available switchgear to the busbar system, with option to hold free leads, can be offset in the 5mm grid. |
|
| for UL feeder circuits >250V |
32901
000

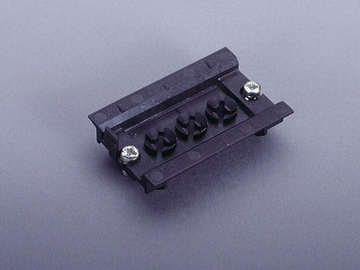

支承导轨，塑料
DIN EN 60715, 54 mm 宽
35 x 54 x 8.5
