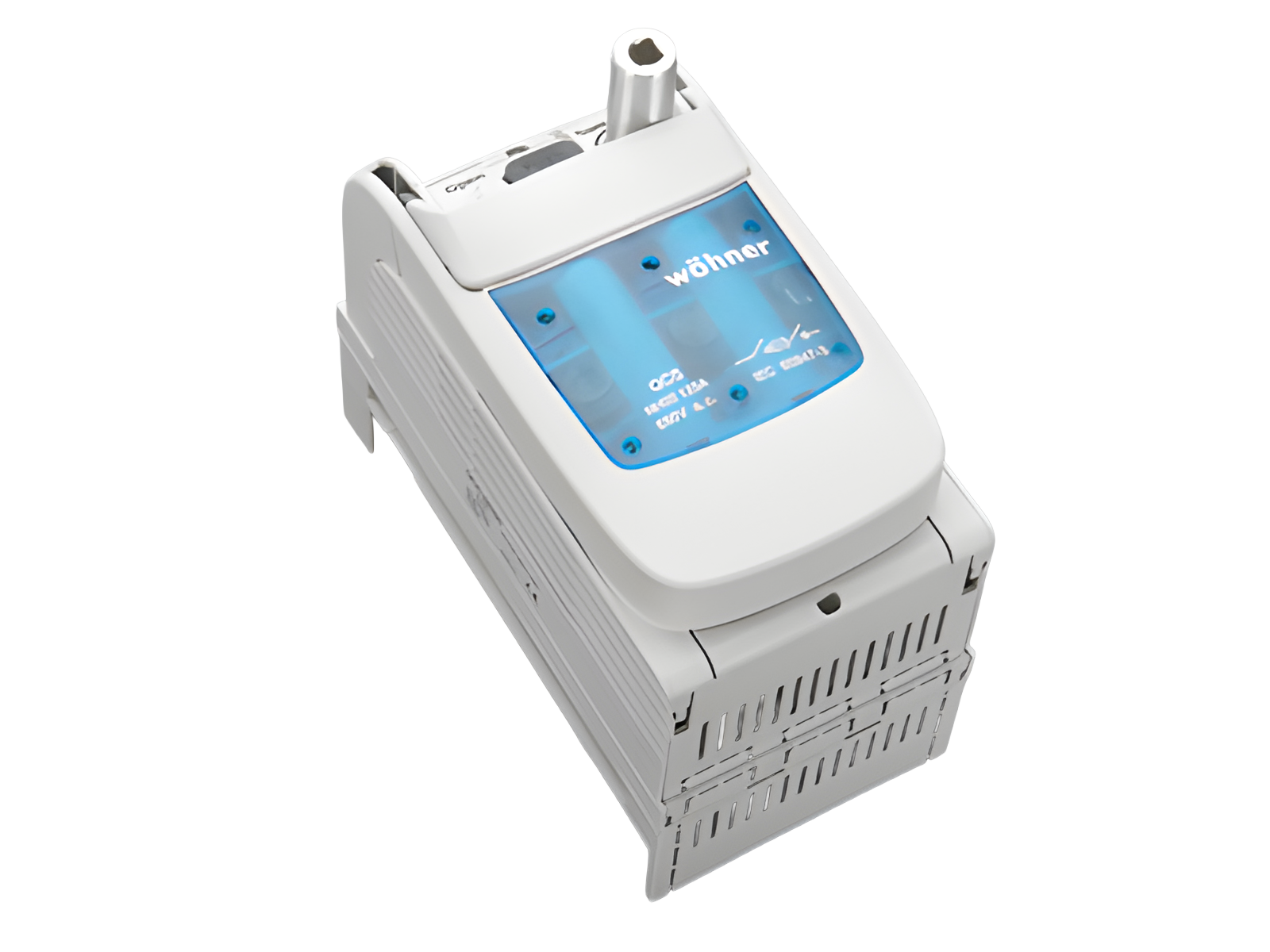

chave seccionadora com fusíveis, 3 polos (33504)

A imagem pode mostrar um produto similar.

Descrição

Código da peça: 33504 000

QUADRON®60Classic Speed

chave seccionadora com fusíveis, 3 polos

prensa-cabo, conexão superior, para manopla rotativa para acionamento externo

tamanho 00

double-breaking

operator independent switching (snap-action mechanism)

para barramentos 12, 15, 20, 25, 30 x 5, 10 e barramentos de seção

Sistema

60Classic

Vantagens do produto

With spring-controlled switch mechanism for frequent switching as per utilisation category "A"
FLAG indicator shows the switch setting
Fuses can be changed safely and without tools thanks to double-breaking main contacts
Additional visible separating section by removing the cover incl. fuses
Can be used as mains disconnector as per IEC / EN 60204-1 (main switch)
Also as an Emergency Off switch in combination with the red-yellow door coupling twist handle
Main switch and Emergency Off switch only in combination with AC-23A/B

CrossLink® adapter technology
Simple and safe clicking into place and making contact
Busbar supports can be mounted above each other for flat busbars
Compact dimensions (106mm wide)

Switches can be installed 90° left/right horizontal, always with the same switch lug position

Grupo de produto 15
Subgroup 20
Unidade por pacote 1
EAN 4021267335045
ECLASS 6.1 27371401
ECLASS 7.1 27371401
ETIM 4.0 EC001040
ETIM 5.0 EC001040

Aprovações

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Número de tipo: QCS-NH00

Dados técnicos

for fuse links size: NH 000, NH 00
fuse links acc. to standard: IEC / HD 60269-2
permitted power dissipation of the fuse-link: 10 W
requirements for contact parts: Fuse links with silver-plated contact pieces recommended.
For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed.
Dados IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Dados elétricos IEC
Corrente de medição (IEC): 125 A
Tensão de medição (IEC) AC: 690 V
Tensão nominal de isolamento: 800 V
Tensão suportável nominal de impulso Uimp: 8 kV
Utilisation category AC (IEC 60947-3) : AC-23B (690V/125A)
AC-23A (500V/125A)
AC-22A (690V/125A)

AC20B (800V)
visible information required: do not switch under load
Utilisation category DC (IEC 60947-3) : DC specifications: 2 current paths (L1,L3) in series
DC-22B (220V/125A)

DC-20B (800V) at pollution degree 3
visible information required: do not switch under load
cond. short-circuit current with fuses (AC): 50 kA / 690 V (125A)
approved wth fuse links of operation class: gG
Special operating conditions corresponding to IEC / EN 61439-1 may yield to foulty activations of pilot switches and fuse monitors. The operating conditions have to be considered for the analysis of status signals.
When several devices are used side-by-side in continuous operation, the rated load factor specified in VDE 0660 Part 500 / EN 60 439-1, Table 1, must be observed.
Dados mecânicos
L x A x P: 106 x 200 x 155
Peso: 208,0 kg/100
Polaridade: 3 polos
para barramentos: 12, 15, 20, 25, 30 x 5, 10 e barramentos de seção
pontos terminais
cage clamp connection
screw drive: S4
wire stripping: 20 mm
min. cross-section: 1,5 mm²
max. cross-section: 70 mm²
re: 1.5 - 10 mm²
f: 1.5 - 70 mm²
f + AE: 1.5 - 70 mm²
(f + AE may not fit with max. cross-section)
Md min.: 5,0 Nm
Md max.: 6,0 Nm
Not suitable for aluminium cables !
Área de aperto: 13x13
lam. Cu width: 9 - 13 mm
lam. Cu thickness: 1 - 10 mm

Instruções de Aplicação

Not suitable for aluminium cables !
permitted power dissipation of the fuse-link: 10 W
requirements for contact parts: Fuse links with silver-plated contact pieces recommended.
For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed.

Links

Dados mestre e visões gerais de artigos

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| Instruções de montagem

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Esboço dimensionado

| EU declaration of conformity

| Descrição do produto (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Acessórios

connection accessories

33914 000
terminal de conexão 120 mm²
conexão frontal
para: QCS-NH00, QCS-160
Mais

further accessories

33908 000
interruptor de sinalização para a monitoramento da posição do seccionador
comutador 250 V AC / 5 A, 30 V DC / 4 A
para: QCS-NH00, QCS-NH1, QCS-160, QCS-320
Mais

33910 000
acionamento extraível
preto, com manopla
trava contra porta pode ser ativada, para cadeados
para: QCS-NH00, QCS-NH1, QCS-160, QCS-320
Mais

33911 000
acionamento extraível
amarelo/vermelho, com manopla
trava contra porta pode ser ativada, para cadeados
para: QCS-NH00, QCS-NH1, QCS-160, QCS-320
Mais

33912 000
eixo prolongador, 290 mm de comprimento
para: QCS-NH00, QCS-NH1, QCS-160, QCS-320
Mais

33913 000
eixo prolongador, 490 mm de comprimento
para: QCS-NH00, QCS-NH1, QCS-160, QCS-320
Mais
