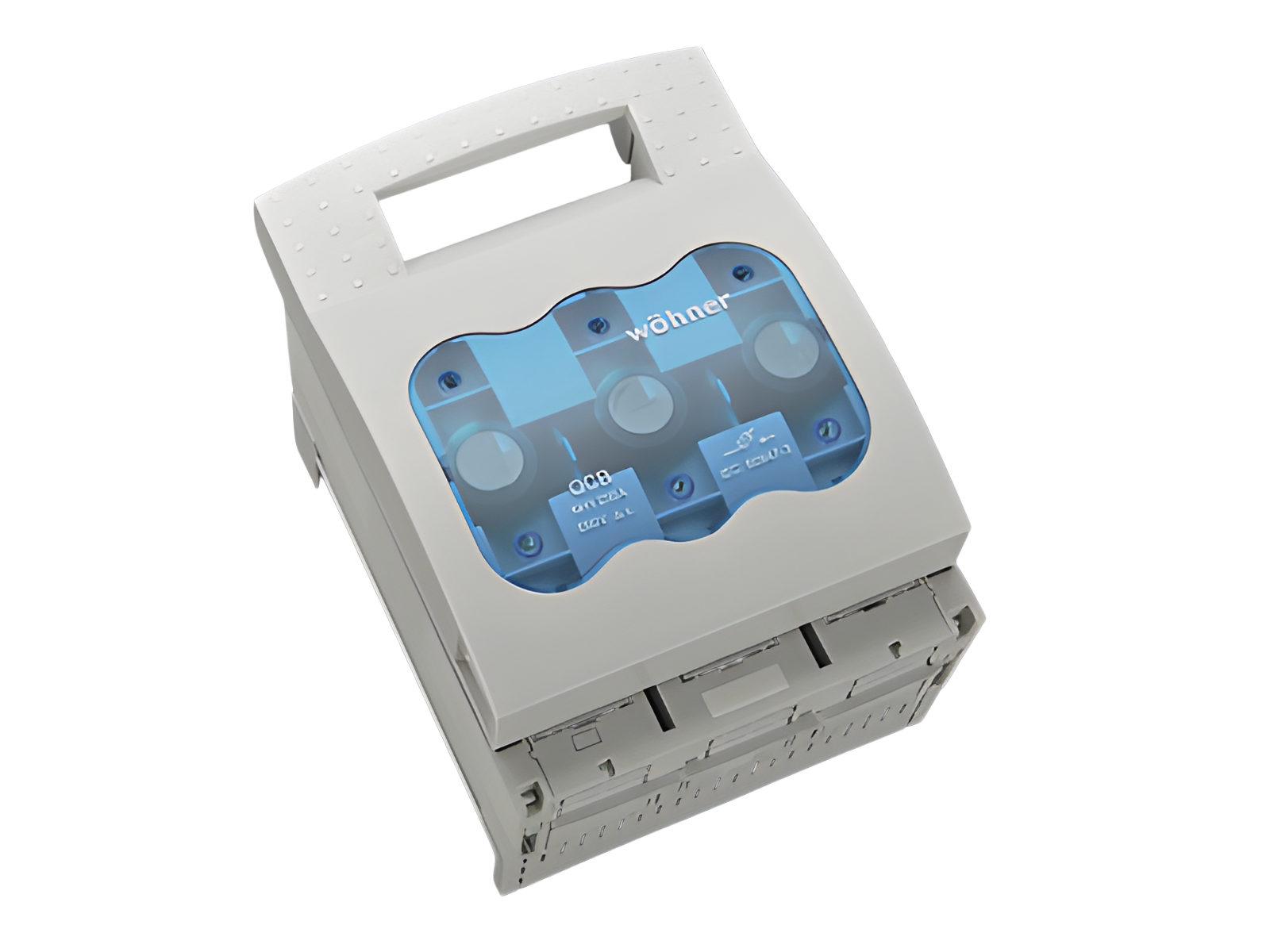

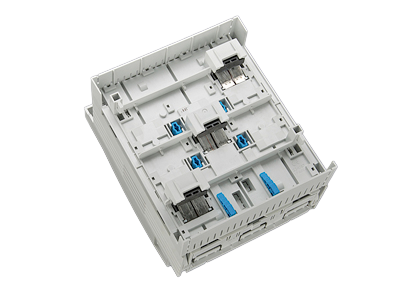

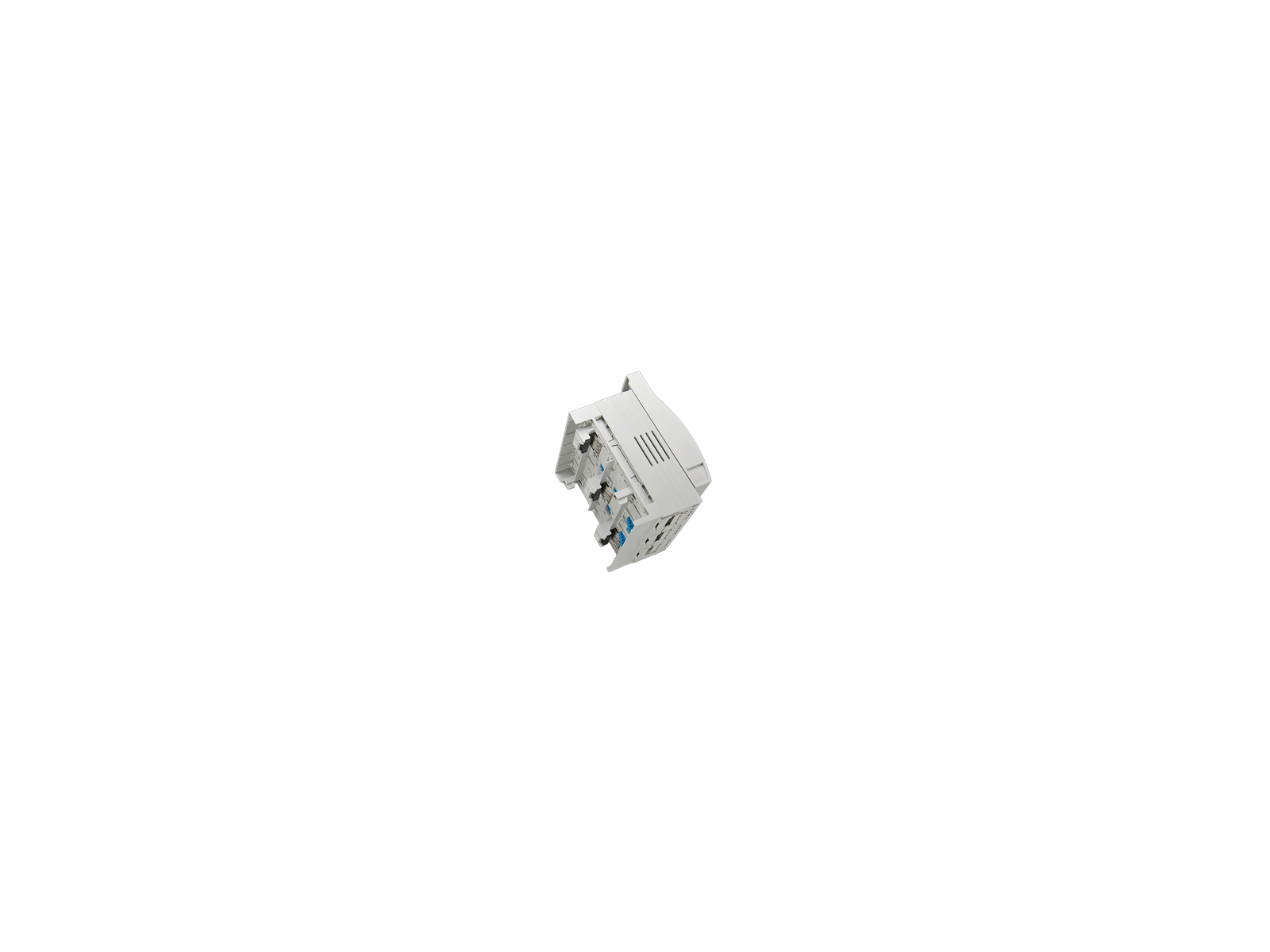

A imagem pode mostrar um produto similar.
Código da peça: 33601000

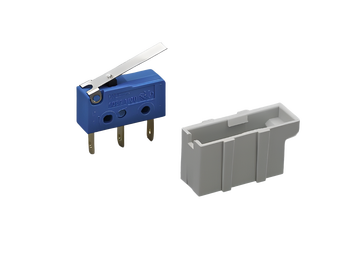

QUADRON®60Classic
chave seccion. de fusível NH, tam. 1, 250 A, p/ mont. em barramento, conexão sup / inf
parafuso M10
connection top or bottom
para barramentos 12, 15, 20, 25, 30 x 5, 10 e barramentos de seção
com CrossLink®Technology
Sistema
60Classic
Vantagens do produto
CrossLink® adapter technology
Fast and safe conversion of the connection for top or bottom; the parts under voltage remain shock protected
Simple and safe clicking into place and making contact
Safe connection through shock protection split into two
Busbar supports for flat busbars can be mounted above each other
Self-closing test holes are available in the cover.
| Grupo de produto | 09 |
| Subgroup | 27 |
| Unidade por pacote | 1 |
| EAN | 4021267336011 |
| ECLASS 6.1 | 27142108 |
| ECLASS 7.1 | 27142108 |
| ETIM 4.0 | EC001040 |
| ETIM 5.0 | EC001040 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
UL 4248-1
Approvals
IEC (CB) , UL , VDE , CCC , DNV GL
for UL feeder circuits >250V
Número de tipo: QCB-NH1
| for fuse links size: | NH 1 |
| fuse links acc. to standard: | IEC / HD 60269-2 |
| permitted power dissipation of the fuse-link: | 23 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| Dados IEC | |
| Standards | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |

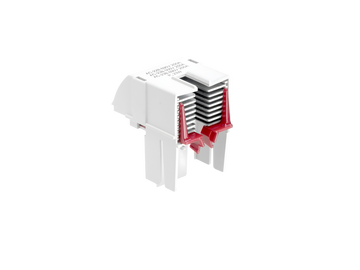

| Dados elétricos IEC | |
| Corrente de medição (IEC): | 250 A |
| Tensão de medição (IEC) AC: | 690 V |
| Tensão de medição (IEC) DC: | 440 V |
| Tensão nominal de isolamento: | 800 V |
| rated isolation voltage Ui DC: | 500 V |
| Tensão suportável nominal de impulso Uimp: | 6 kV |
| Utilisation category AC (IEC 60947-3) : | AC-22B (400V) AC-23B (400V/160A) AC-21B (690V) AC-20B (1000V) at pollution degree 2 to obtain a higher utilisation category the product can be retrofitted with arcing chambers (see accessories) visible information required if used at more than 690V AC: do not switch under load |
| Utilisation category DC (IEC 60947-3) : | DC specifications: 2 current paths (L1,L3) in series DC-20B (440 V) DC-20B (1000V) at pollution degree 2 visible information required if used at more than 440V DC: do not switch under load |
| cond. short-circuit current with fuses (AC): | 100 kA / 690 V |
| approved wth fuse links of operation class: | gG |
| rated peak withstand current Ipk max.: | 13.7 kA |
| Corrente nominal admissível de curta duração Icw (1,0 s) max.: | 8.1 kA |
| Icw approved with: | Trennmesser |
Dissipação de energia do artigo:
A dissipação de energia em uma carga de 80% resulta em 16,6 W.
(A dissipação de energia em sua carga máxima seria 26,0 W.)
| Dados adicionais IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |

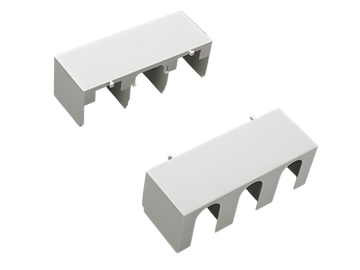

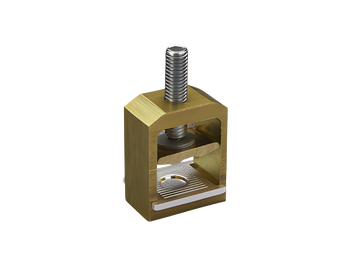

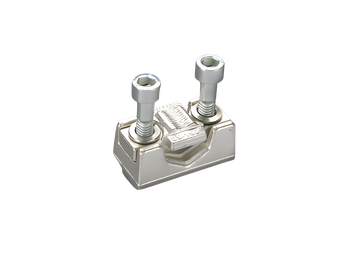

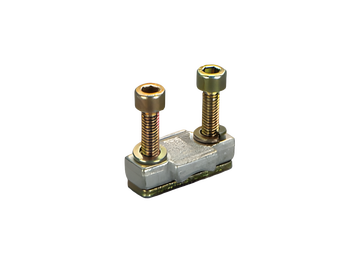

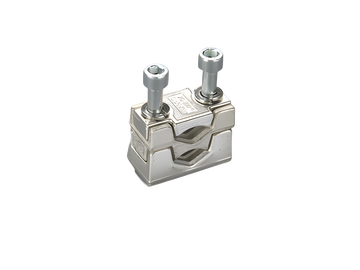

| tensão máxima IEC AC: | 725 V |
| tensão máxima IEC DC: | 800 V |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. |
| Entsprechend den angegeben AC- und DC- Schalteigenschaften und unter Berücksichtigung der Überlastbedingungen, sind gewisse Abstände zu geerdeten Metallteilen einzuhalten. Nähere Informationen auf Anfrage.Bei Verwendung als Trennschalter ist die Einhaltung der Abstände nicht erforderlich. | |
| Degree of protection IP30 at front, degree of protection near terminal depends on installation |
| Dados UL | |
| Standards | |
| UL 4248-1 |
| for UL feeder circuits >250V |
| Dados electricos UL | |
| corrente nominal (UL): | 250 A |
| rated voltage (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| SCCR: | 100 kA |
| Dados mecânicos | |
| L x A x P: | 184 x 243 x 157 |
| Peso: | 266,0 kg/100 |
| Polaridade: | 3 polos |
| para barramentos: | 12, 15, 20, 25, 30 x 5, 10 e barramentos de seção |
| front degree of protection: | IP30 |
| pontos terminais | |
| screw connection | |
| M10 | |
| screw drive: | SW16 |
| Md min.: | 20,0 Nm |
| Md max.: | 30,0 Nm |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. | |
| permitted power dissipation of the fuse-link: | 23 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| for UL feeder circuits >250V | |
