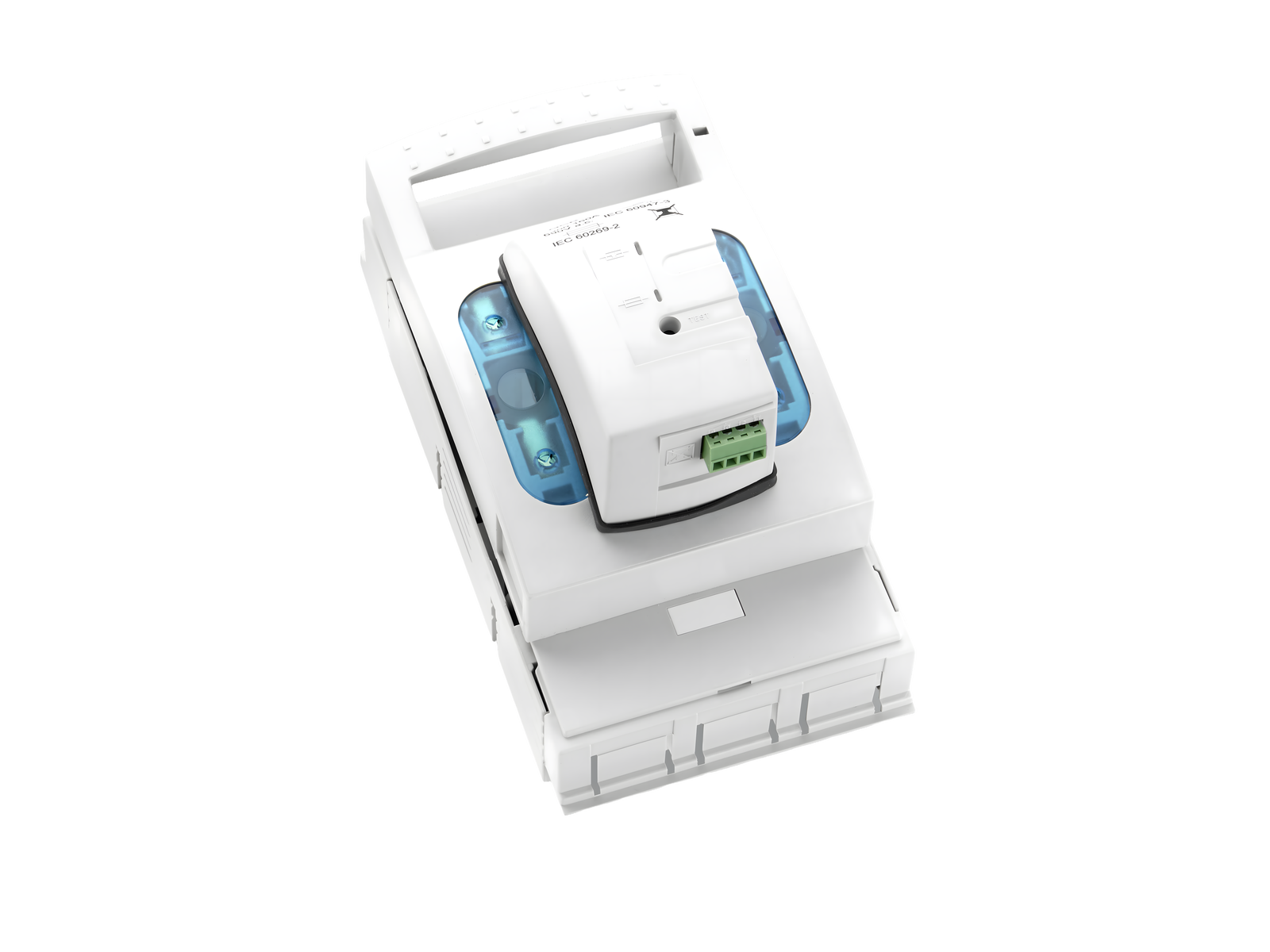

A imagem pode mostrar um produto similar.
Código da peça: 33329000
QUADRON®Panel
chave seccion. de fusível NH tam. 00, 160 A, montagem em painel
parafuso M8
with electronic fuse monitoring
para montagem em placa
Sistema
Panel
Vantagens do produto
For safe connection of the lines, the shock protection is split into 2. Self-closing inspection holes are available in the cover.
| Grupo de produto | 09 |
| Subgroup | 04 |
| Unidade por pacote | 1 |
| EAN | 4021267333294 |
| ECLASS 6.1 | 27142108 |
| ECLASS 7.1 | 27142108 |
| ETIM 4.0 | EC001040 |
| ETIM 5.0 | EC001040 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
UL 4248-1
Approvals
IEC (CB) , UL , CCC
for UL feeder circuits >250V
Número de tipo: LTS-00
| for fuse links size: | NH 000, NH 00 |
| fuse links acc. to standard: | IEC / HD 60269-2 |
| live grip lugs required: | Yes |
| permitted power dissipation of the fuse-link: | 12 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| Dados IEC | |
| Standards | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Dados elétricos IEC | |
| Corrente de medição (IEC): | 160 A |
| Tensão de medição (IEC) AC: | 690 V |
| Tensão de medição (IEC) DC: | 250 V |
| Tensão nominal de isolamento: | 690 V |
| rated isolation voltage Ui DC: | 250 V |
| Tensão suportável nominal de impulso Uimp: | 6 kV |
| Utilisation category AC (IEC 60947-3) : | AC-23B (400 V), AC-22B (500 V), AC-21B (500 V |
| cond. short-circuit current with fuses (AC): | 50 kA / 690 V |
| approved wth fuse links of operation class: | gG |
Dissipação de energia do artigo:
A dissipação de energia em uma carga de 80% resulta em 4,5 W.
(A dissipação de energia em sua carga máxima seria 7,0 W.)
| Dados adicionais IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| tensão máxima IEC AC: | 725 V |
| tensão máxima IEC DC: | 262 V |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. |
| for fuse links IEC 60269-2-1 (I) / DIN VDE 0636-201 size 00 up to 12W power dissipation, with grip lugs under voltage | |
| Entsprechend den angegeben AC- und DC- Schalteigenschaften und unter Berücksichtigung der Überlastbedingungen, sind gewisse Abstände zu geerdeten Metallteilen einzuhalten. Nähere Informationen auf Anfrage. Bei Verwendung als Trennschalter ist die Einhaltung der Abstände nicht erforderlich. |
|
| Schutzart IP30 frontseitig, im Anschlussbereich vom Einbau abhängig Elektronische Sicherungsüberwachung: - Zur Erkennung von Sicherungsausfällen mit Bemessungsspannung AC 100V bis AC 690V - Keine Hilfsenergie erforderlich; Versorgung über Netzspannung - Hilfskontakte potentialfrei - LED- Blinkmelder (rot/grün) - Testtaster - Weitere Informationen unter Downloads / Datenblatt |
| Dados UL | |
| Standards | |
| UL 4248-1 |
| for UL feeder circuits >250V |
| Dados electricos UL | |
| corrente nominal (UL): | 160 A |
| rated voltage (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| SCCR: | 100 kA |
| Dados mecânicos | |
| L x A x P: | 106 x 176 x 123 |
| Peso: | 92,0 kg/100 |
| Polaridade: | 3 polos |
| Montagem: | para montagem em placa |
| front degree of protection: | IP30 |
| pontos terminais | |
| screw connection | |
| M8 | |
| screw drive: | SW13 |
| Md min.: | 8,0 Nm |
| Md max.: | 10,0 Nm |
| Not suitable for aluminium cables ! | |
|
Accessories: |
|
| Not suitable for aluminium cables ! | |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. | |
| live grip lugs required: | Yes |
| permitted power dissipation of the fuse-link: | 12 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| for UL feeder circuits >250V | |
