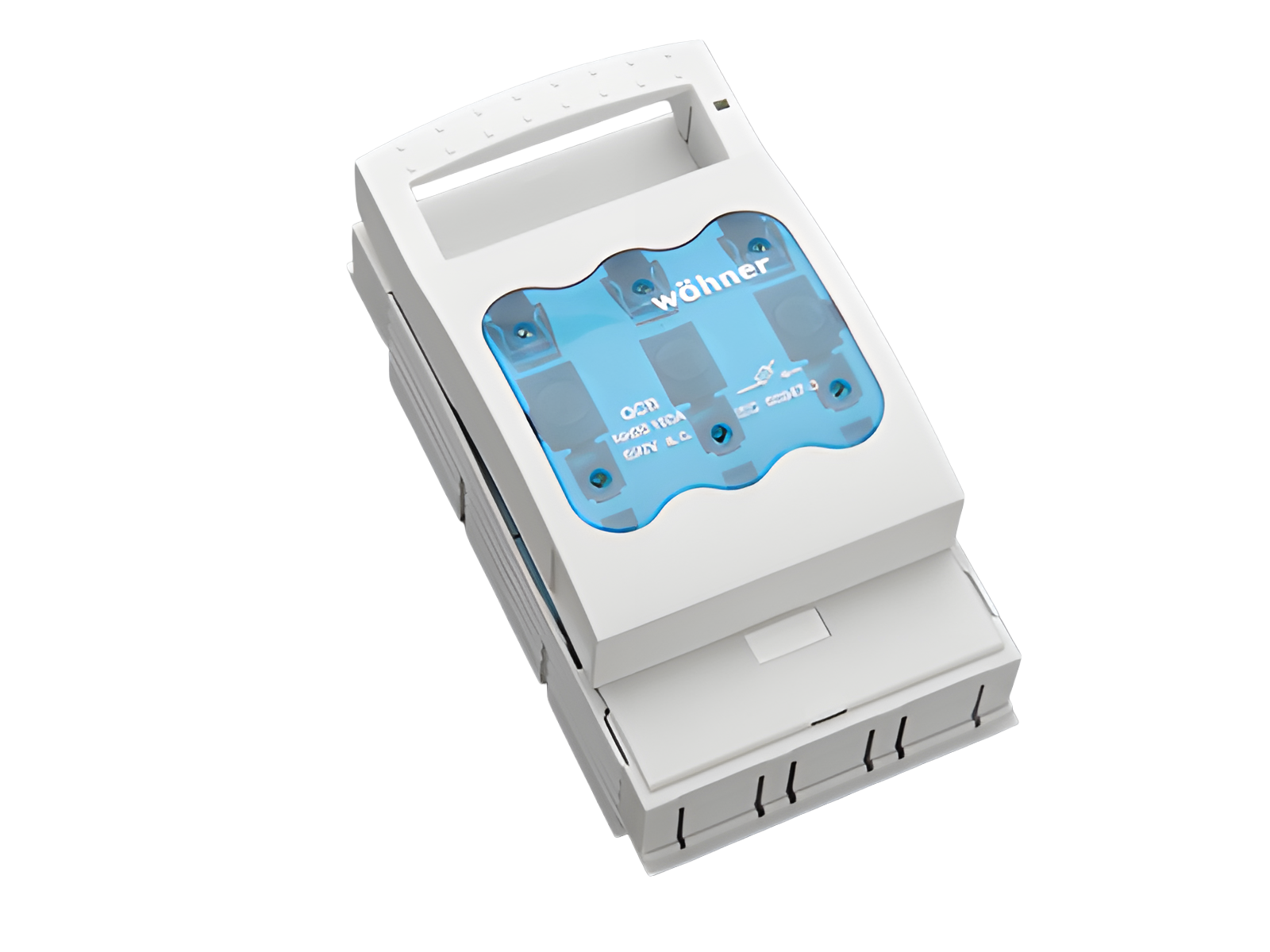

A imagem pode mostrar um produto similar.
Código da peça: 33200000
QUADRON®Panel
chave seccion. de fusível NH tam. 00, 160 A, montagem em painel
parafuso M8
para montagem em placa
Sistema
Panel
Vantagens do produto
For safe connection of the leads, the shock protection is split into 2. Self-closing inspection holes are available in the cover.
| Grupo de produto | 09 |
| Subgroup | 03 |
| Unidade por pacote | 1 |
| EAN | 4021267332006 |
| ECLASS 6.1 | 27142108 |
| ECLASS 7.1 | 27142108 |
| ETIM 4.0 | EC001040 |
| ETIM 5.0 | EC001040 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
UL 4248-1
Approvals
IEC (CB) , UL , CCC , DNV GL
for UL feeder circuits >250V
Número de tipo: LTS-00
| for fuse links size: | NH 000, NH 00 |
| fuse links acc. to standard: | IEC / HD 60269-2 |
| permitted power dissipation of the fuse-link: | 12 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| Dados IEC | |
| Standards | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Dados elétricos IEC | |
| Corrente de medição (IEC): | 160 A |
| Tensão de medição (IEC) AC: | 690 V |
| Tensão de medição (IEC) DC: | 440 V |
| Tensão nominal de isolamento: | 800 V |
| rated isolation voltage Ui DC: | 500 V |
| Tensão suportável nominal de impulso Uimp: | 6 kV |
| Utilisation category AC (IEC 60947-3) : | AC-23B (400V) AC-23B (500V/125A) AC-22B (690V) AC-21B (690V) AC-20B (1000V) at pollution degree 2 visible information required if used at more than 690V AC: do not switch under load |
| Utilisation category DC (IEC 60947-3) : | DC specifications: 2 current paths (L1,L3) in series DC-22B (220V) DC-22B (440V/125A) DC-21B (440V) DC-20B (1000V) at pollution degree 2 visible information required if used at more than 440V DC: do not switch under load |
| cond. short-circuit current with fuses (AC): | 50 kA / 690 V |
| approved wth fuse links of operation class: | gG |
Dissipação de energia do artigo:
A dissipação de energia em uma carga de 80% resulta em 4,5 W.
(A dissipação de energia em sua carga máxima seria 7,0 W.)
| Dados adicionais IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| tensão máxima IEC DC: | 800 V |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. |
| In accordance with the specified AC and DC switching properties and in consideration of the overload conditions, the distances to earthed metal parts given below are to be adhered to. - top 150mm, side 55mm When used as a disconnector, the spacings can be ignored. |
|
| Degree of protection IP30 at front, degree of protection near terminal depends on installation |
| Dados UL | |
| Standards | |
| UL 4248-1 |
| for UL feeder circuits >250V |
| Dados electricos UL | |
| corrente nominal (UL): | 160 A |
| rated voltage (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| SCCR: | 100 kA |
| Dados mecânicos | |
| L x A x P: | 106 x 200 x 83 |
| Peso: | 77,7 kg/100 |
| Polaridade: | 3 polos |
| Montagem: | para montagem em placa |
| front degree of protection: | IP30 |
| pontos terminais | |
| screw connection | |
| M8 | |
| screw drive: | SW13 |
| Md min.: | 8,0 Nm |
| Md max.: | 10,0 Nm |
| Not suitable for aluminium cables ! | |
| Not suitable for aluminium cables ! | |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. | |
| permitted power dissipation of the fuse-link: | 12 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| for UL feeder circuits >250V | |
