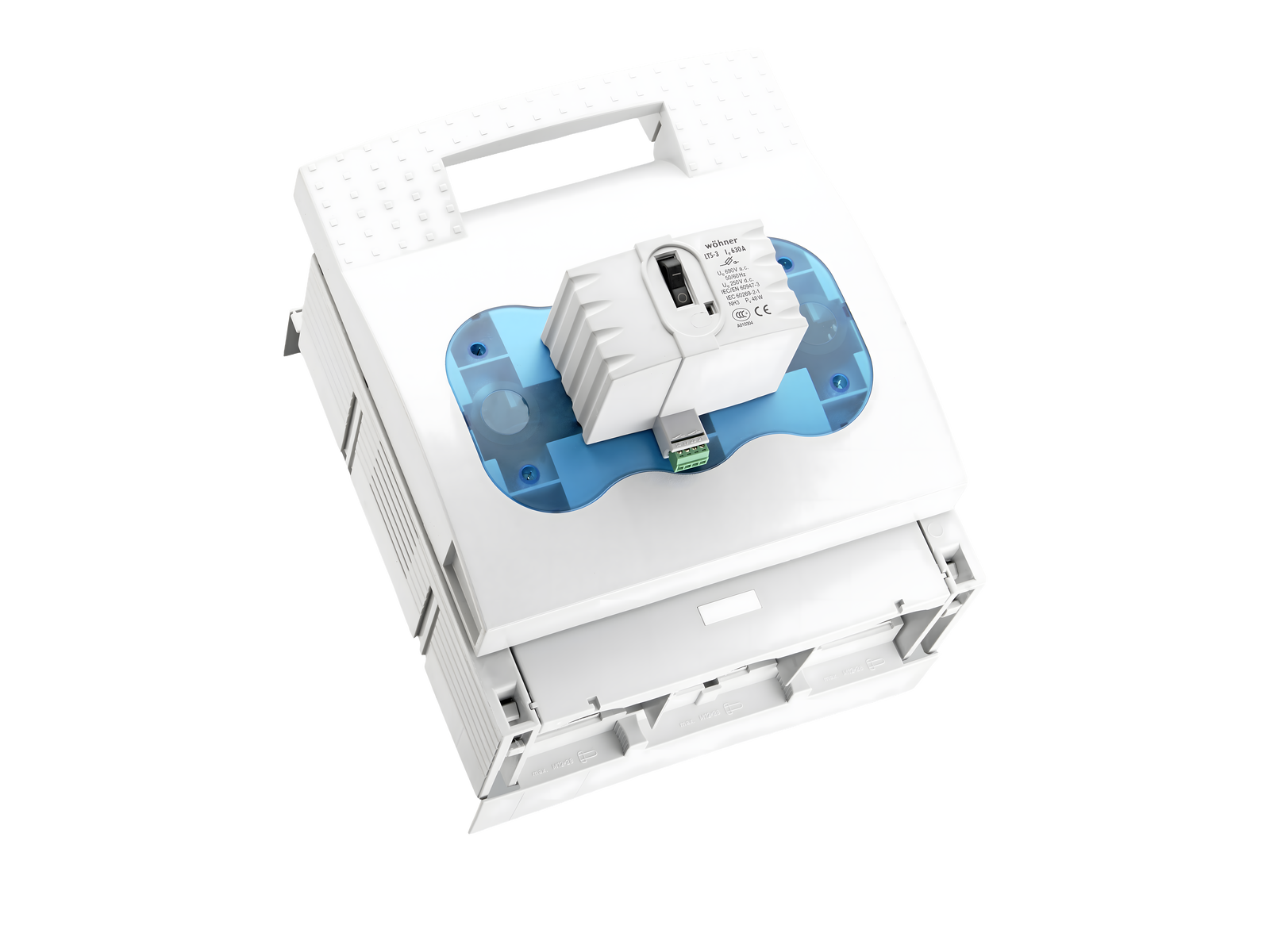

A imagem pode mostrar um produto similar.
Código da peça: 33162000
QUADRON®60Classic
chave seccion. de fusível NH, tam. 3, 630 A, p/ mont. em barramento, conexão sup / inf
parafuso M12
with electromechanical fuse monitoring
connection top or bottom
para barramentos 12, 20, 30 x 10 e barramentos de seção
Sistema
60Classic
Vantagens do produto
Disconnectors are equipped with arc chambers.
The shock protection is split into 2 for safe connection of the conductors.
| Grupo de produto | 09 |
| Subgroup | 34 |
| Unidade por pacote | 1 |
| EAN | 4021267331627 |
| ECLASS 6.1 | 27142108 |
| ECLASS 7.1 | 27142108 |
| ETIM 4.0 | EC001040 |
| ETIM 5.0 | EC001040 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
UL 4248-1
Approvals
IEC (CB) , UL , CCC , DNV GL
for UL feeder circuits >250V
Número de tipo: LTS-3
| for fuse links size: | NH 3 |
| fuse links acc. to standard: | IEC / HD 60269-2 |
| live grip lugs required: | Yes |
| permitted power dissipation of the fuse-link: | 48 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| Dados IEC | |
| Standards | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Dados elétricos IEC | |
| Corrente de medição (IEC): | 630 A |
| Tensão de medição (IEC) AC: | 690 V |
| Tensão de medição (IEC) DC: | 250 V |
| Tensão nominal de isolamento: | 800 V |
| rated isolation voltage Ui DC: | 250 V |
| Tensão suportável nominal de impulso Uimp: | 6 kV |
| Utilisation category AC (IEC 60947-3) : | AC-23B (400V) AC-22B (690V) AC-21B (690V) |
| Utilisation category DC (IEC 60947-3) : | DC specifications: 2 current paths (L1,L3) in series DC-22B (250V) |
| cond. short-circuit current with fuses (AC): | 50 kA / 690 V |
| approved wth fuse links of operation class: | gG |
Dissipação de energia do artigo:
A dissipação de energia em uma carga de 80% resulta em 38,4 W.
(A dissipação de energia em sua carga máxima seria 60,0 W.)
| Dados adicionais IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| tensão máxima IEC AC: | 725 V |
| tensão máxima IEC DC: | 262 V |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. |
| Entsprechend den angegeben AC- und DC- Schalteigenschaften und unter Berücksichtigung der Überlastbedingungen, sind gewisse Abstände zu geerdeten Metallteilen einzuhalten. Nähere Informationen auf Anfrage. Bei Verwendung als Trennschalter ist die Einhaltung der Abstände nicht erforderlich. |
|
| Degree of protection IP30 at front, degree of protection near terminal depends on installation fuse monitoring: rated operating voltage AC 24-690V, DC 24-250V potential-free opener and closer: AC-15 24V/2A, (230V* 0.5A) DC-13 24V/1A, 60V 0.15A *pollution degree 2, surge category II auxiliary energy not required, for further information, see assembly manual |
| Dados UL | |
| Standards | |
| UL 4248-1 |
| for UL feeder circuits >250V |
| Dados electricos UL | |
| corrente nominal (UL): | 600 A |
| rated voltage (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| SCCR: | 100 kA |
| Dados mecânicos | |
| L x A x P: | 256 x 300 x 235 |
| Peso: | 824,0 kg/100 |
| Polaridade: | 3 polos |
| para barramentos: | 12, 20, 30 x 10 e barramentos de seção |
| front degree of protection: | IP30 |
Type of fastening: patented click mechanism
| pontos terminais | |
| screw connection | |
| M12 | |
| screw drive: | SW18 |
| Md min.: | 35,0 Nm |
| Md max.: | 40,0 Nm |
| Not suitable for aluminium cables ! | |
|
Accessories: |
|
| Not suitable for aluminium cables ! | |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. | |
| live grip lugs required: | Yes |
| permitted power dissipation of the fuse-link: | 48 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| for UL feeder circuits >250V | |
