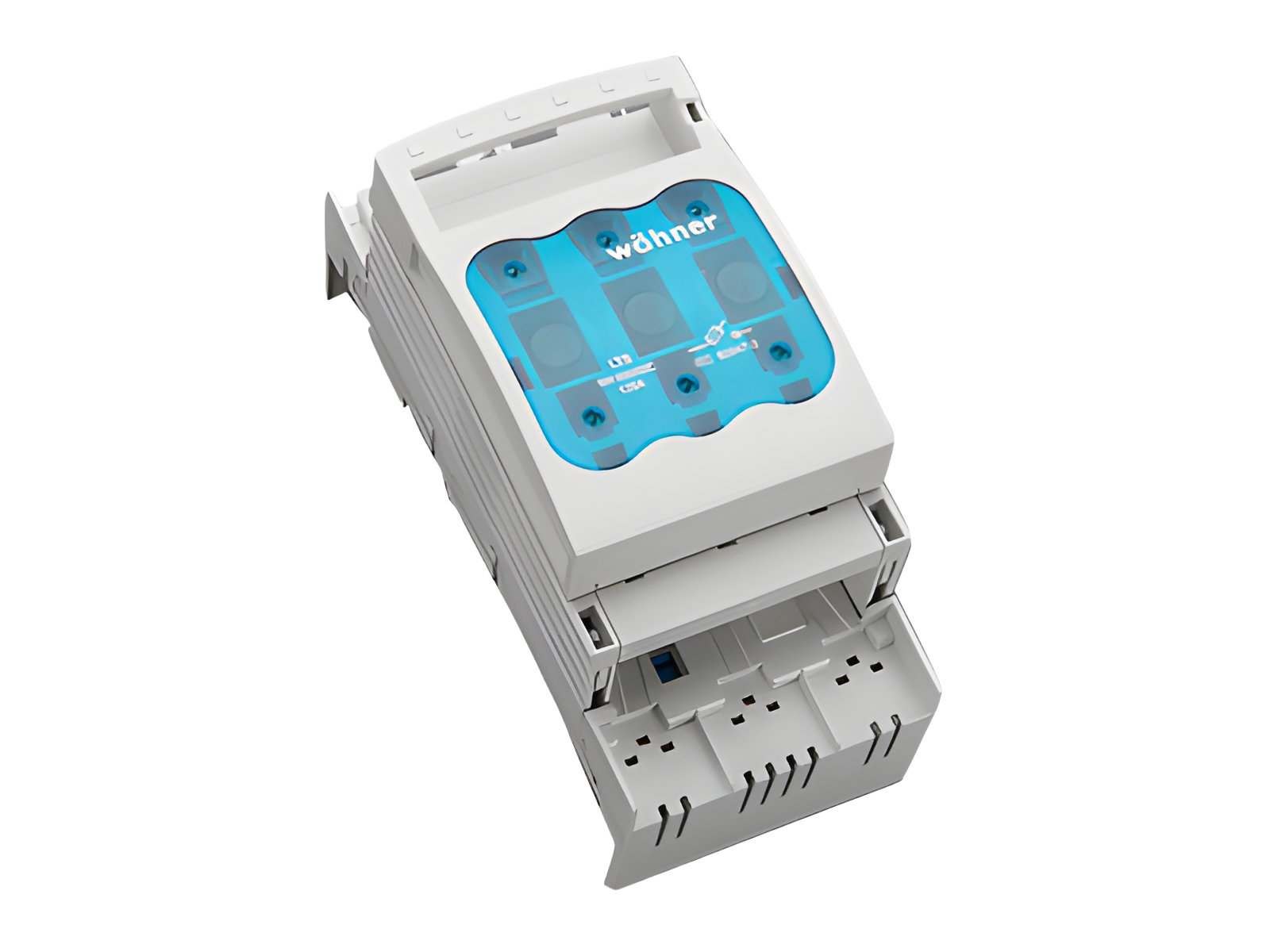

chave seccion. de fusível NH, tam. 000, 125 A, p/ mont. em barramento, conexão sup / inf (33216)

A imagem pode mostrar um produto similar.

Descrição

Código da peça: 33216000

QUADRON®60Classic

chave seccion. de fusível NH, tam. 000, 125 A, p/ mont. em barramento, conexão sup / inf

prensa-cabo

connection top or bottom

para barramentos 12, 15, 20, 25, 30 x 5, 10 e barramentos de seção

Sistema

60Classic

Vantagens do produto

Self-closing inspection holes are available in the cover.

Grupo de produto 09
Subgroup 22
Unidade por pacote 1
EAN 4021267332167
ECLASS 6.1 27142108
ECLASS 7.1 27142108
ETIM 4.0 EC001040
ETIM 5.0 EC001040

Aprovações

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

UL 4248-1

Approvals

IEC (CB) , UL , CCC , DNV GL

for UL feeder circuits >250V

Número de tipo: LTS-000

UL file: E230163, UL category (for USA): IZLT2 https://www.ul.com

CCC certificate: 2004010302117260

Dados técnicos

for fuse links size: NH 000
fuse links acc. to standard: IEC / HD 60269-2
permitted power dissipation of the fuse-link: 9 W
requirements for contact parts: Fuse links with silver-plated contact pieces recommended.
For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed.
Dados IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Dados elétricos IEC
Corrente de medição (IEC): 125 A
Tensão de medição (IEC) AC: 690 V
Tensão de medição (IEC) DC: 440 V
Tensão nominal de isolamento: 800 V
rated isolation voltage Ui DC: 500 V
Tensão suportável nominal de impulso Uimp: 6 kV
Utilisation category AC (IEC 60947-3) : AC-21B (690 V / 80 A)
AC-22B (400 V / 125 A)
Utilisation category DC (IEC 60947-3) : DC specifications: 2 current paths (L1,L3) in series
DC-22B (440V/63A)
DC-22B (220V/100A)
DC-21B (440V/80A)
DC-21B (220V/125A)
cond. short-circuit current with fuses (AC): 50 kA / 400 V (125A)
50 kA / 500 V (100A)
50 kA / 690 V (50A)
approved wth fuse links of operation class: gG

Dissipação de energia do artigo:

A dissipação de energia em uma carga de 80% resulta em 6,7 W.

(A dissipação de energia em sua carga máxima seria 10,5 W.)

Dados adicionais IEC

The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.

tensão máxima IEC DC: 800 V
A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such.
In accordance with the specified AC and DC switching properties and in consideration of the overload conditions, certain distances to earthed metal parts are to be adhered to. detailed information upon inquiry

When several devices are used side-by-side in continuous operation, the rated load factor specified in IEC / EN 61439-1, Table 1, must be observed.
Degree of protection IP30 at front, degree of protection near terminal depends on installation
Dados UL
Standards
UL 4248-1
for UL feeder circuits >250V
Dados electricos UL
corrente nominal (UL): 125 A
rated voltage (UL) AC: 600 V
rated frequency (UL): 50 / 60 Hz
SCCR: 100 kA
Dados mecânicos
L x A x P: 89 x 200 x 90
Peso: 113,0 kg/100
Polaridade: 3 polos
para barramentos: 12, 15, 20, 25, 30 x 5, 10 e barramentos de seção
front degree of protection: IP30

Type of fastening: patented click mechanism

pontos terminais
cage clamp connection
screw drive: S4
wire stripping: 20 mm
min. cross-section: 1,5 mm²
max. cross-section: 50 mm²
Md min.: 3,2 Nm
Md max.: 4,8 Nm
Not suitable for aluminium cables !


Box terminal:
2.5 -50mm² flexible cables,
1.5 -50mm² flexible cables with wire-end ferrules
1.5 - 10mm² solid round
16 - 50mm² stranded round
(flexible cables of maximum cross-section may not fit when using wire-end ferrule)
lam. Cu. 6-9 mm wide
Terminal space 10mm x 10mm

Instruções de Aplicação

Not suitable for aluminium cables !
A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such.
permitted power dissipation of the fuse-link: 9 W
requirements for contact parts: Fuse links with silver-plated contact pieces recommended.
For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed.
for UL feeder circuits >250V

Links

Downloads

Acessórios

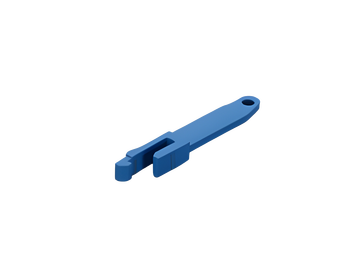

33051000
bloqueio da tampa
para fio de selagem
Tamanho 000
Mais

33156000
interruptor de sinalização
comutador 250 V AC / 5 A, 30 V DC / 4 A
Mais

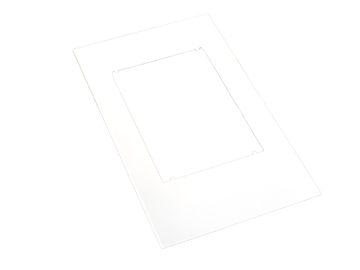

33219000
moldura de acabamento, única
130 x 210
tamanho 000
Mais
