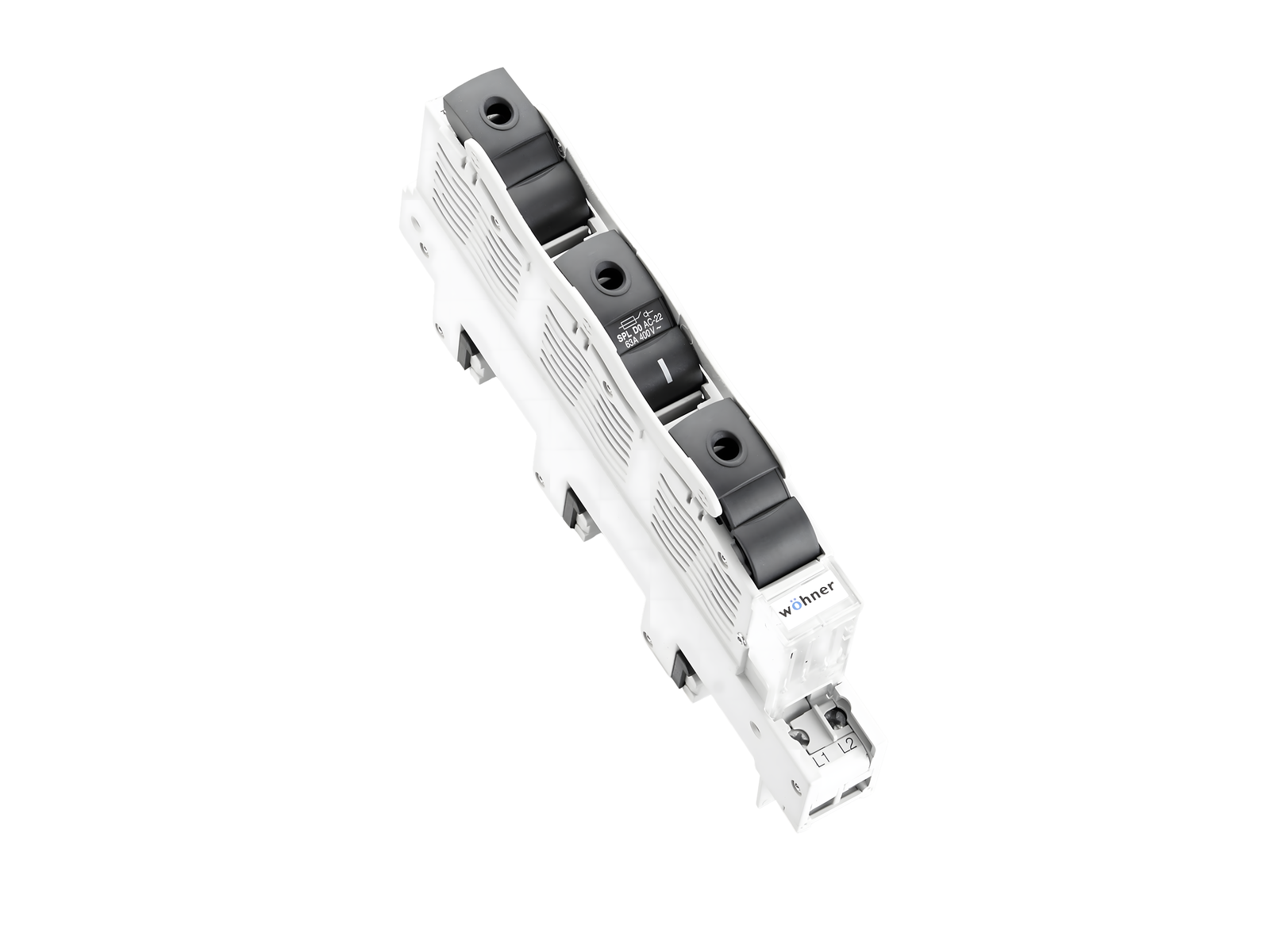

seccionador-interruptor-fusível D0 para montagem em barramento (31525)

A imagem pode mostrar um produto similar.

Descrição

Código da peça: 31525000

SECUR®60Classic PowerLiner

seccionador-interruptor-fusível D0 para montagem em barramento

para fusíveis D01 e D02, com LED

E18 / 63 A / 3P

connection bottom

para barramentos 12, 15, 20, 25, 30 x 5, 10 e barramentos de seção

comutável de 3 polos / 1 polo

Sistema

60Classic

Grupo de produto 01
Subgroup 42
Unidade por pacote 1
EAN 4021267315252
ECLASS 6.1 27142110
ECLASS 7.1 27142110
ETIM 4.0 EC000277
ETIM 5.0 EC000277

Aprovações

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Approvals

VDE , CCC , DNV GL

Número de tipo: SPL-D0

CCC certificate: 2018010302128773

Dados técnicos

for fuse links size: D0
fuse links acc. to standard: IEC / HD 60269-3
permitted power dissipation of the fuse-link: 5,5 W
requirements for contact parts: Fuse links with silver-plated contact pieces recommended.
For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed.
Dados IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Dados elétricos IEC
Corrente de medição (IEC): 63 A
Tensão de medição (IEC) AC: 400 V
Tensão de medição (IEC) DC: 110 V
Tensão nominal de isolamento: 500 V
rated isolation voltage Ui DC: 250 V
Tensão suportável nominal de impulso Uimp: 6 kV
Utilisation category AC (IEC 60947-3) : AC-23A (400 V)
Utilisation category DC (IEC 60947-3) : DC-21B (48V) 1 pole
DC-21B (110V) 2 poles
cond. short-circuit current with fuses (AC): 50 kA / 400 V
approved wth fuse links of operation class: gG

Dissipação de energia do artigo:

A dissipação de energia em uma carga de 80% resulta em 6,7 W.

(A dissipação de energia em sua carga máxima seria 10,5 W.)

Dados adicionais IEC

The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.

A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such.
LED indicates blown fuse, operating range: 110 - 400 V AC / DC
for fuse links and gauge rings as per DIN VDE 0636-3 IEC / HD 60269-3
utilisation category as per VDE 0638: AC22

The function of isolation between incoming and outgoing contacts is provided by the opening of the switching mechanism as required in the standard.

There is a transfer of the potential from the busbars, through the LED units, to the terminals  when the fuse links are removed and the switching mechanismn is closed.

Dados mecânicos
L x A x P: 27 x 220 x 100
Peso: 76,5 kg/100
Polaridade: 3 polos
para barramentos: 12, 15, 20, 25, 30 x 5, 10 e barramentos de seção
front degree of protection: IP20

Type of fastening: patented click mechanism

pontos terminais
cage clamp connection
screw drive: PZ2
wire stripping: 12 mm
min. cross-section: 1,5 mm²
max. cross-section: 16 mm²
Md min.: 2,5 Nm
Md max.: 3,0 Nm
Not suitable for aluminium cables !

Instruções de Aplicação

Not suitable for aluminium cables !
A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such.

Notas

SECUR®PowerLiner can be fitted with D0 adapter sleeves. With reducer insert (part no. 31902) and adapter sleeves, also suitable for D01 fuse-links. The use of the side module part no. 31901 is recommended for continuous loads of 35 A or greater.

LED lights when the fuse-link trips or is missing

use D02 fuse-links with silver plated end caps

permitted power dissipation of the fuse-link: 5,5 W
requirements for contact parts: Fuse links with silver-plated contact pieces recommended.
For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed.

Links

Downloads

Acessórios

31901000
módulo de fixação lateral
Mais

31902000
redutor D02 para fusíveis D01 2 - 16 A
Mais

31903000
interruptor de sinalização
comutador 250 V AC / 5 A, 30 V DC / 4 A
