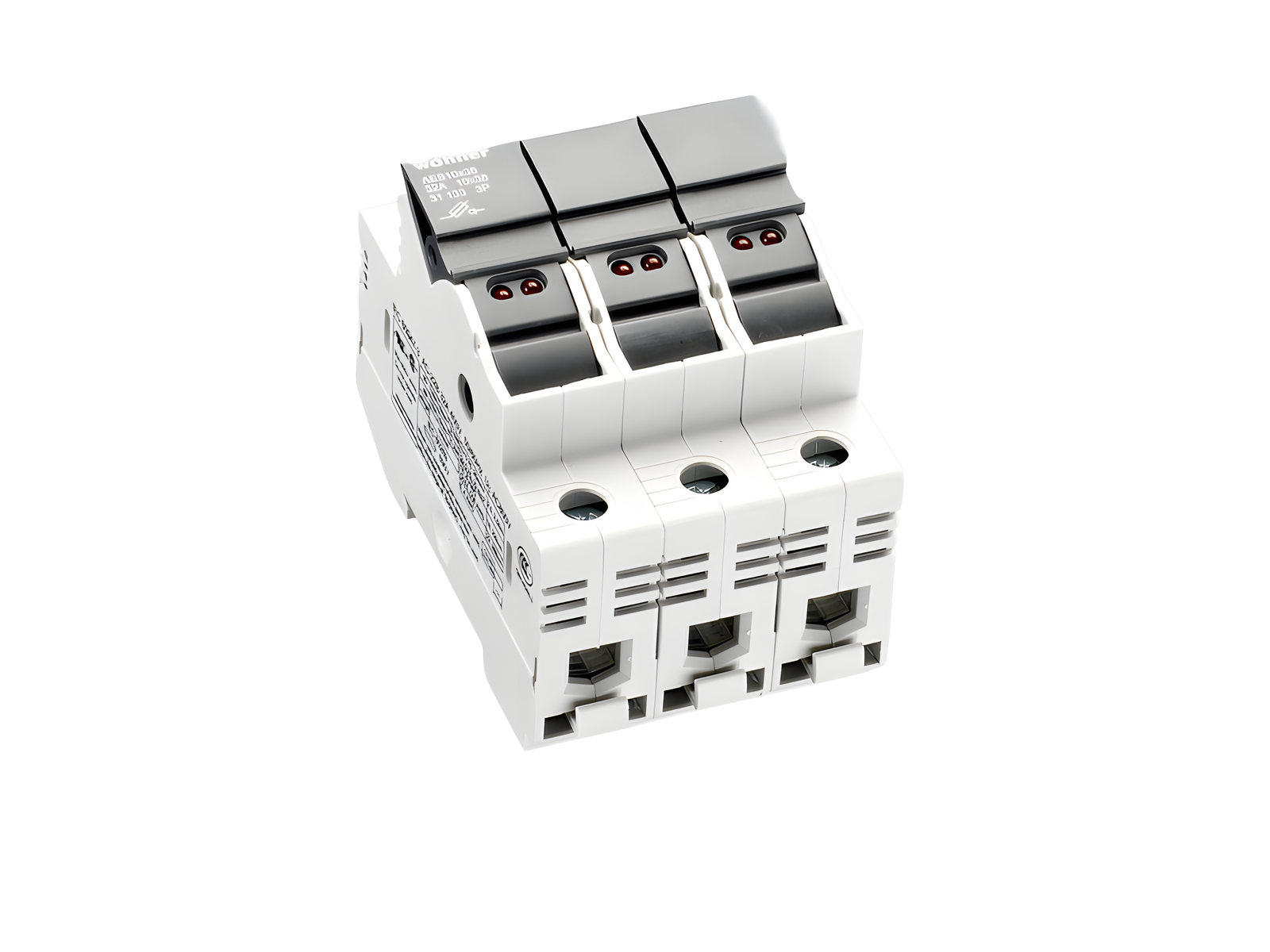

suporte para fusíveis cilíndricos, com LED (31133)

A imagem pode mostrar um produto similar.

Descrição

Código da peça: 31133000

AMBUS®Panel

suporte para fusíveis cilíndricos, com LED

10 x 38 / 3P

32 A / 110 - 690 V

indication of a released fuse link

for mounting rail

Sistema

Panel

Vantagens do produto

large clamping range
holder for label

Grupo de produto 17
Subgroup 06
Unidade por pacote 4
EAN 4021267311339
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002705
ETIM 5.0 EC002705

Aprovações

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

UL 4248-1

Approvals

IEC (CB) , CSA , UL , CCC

for UL feeder circuits >250V

Número de tipo: AES10x38

UL file: E230163, UL category (for USA): IZLT https://www.ul.com

UL file: E230163, UL category (for Canada): IZLT7 https://www.ul.com

CSA file: 110285, CSA class: 6225-01 https://directories.csa-international.org

CCC certificate: 2012010302581751

Dados técnicos

for fuse links size: 10x38
fuse links acc. to standard: IEC / HD 60269-2
permitted power dissipation of the fuse-link: 3 W
Dados IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Dados elétricos IEC
Corrente de medição (IEC): 32 A
Tensão de medição (IEC) AC: 690 V
min. operating voltage AC: 110 V
Tensão nominal de isolamento: 690 V
Tensão suportável nominal de impulso Uimp: 6 kV
Utilisation category AC (IEC 60947-3) : AC-22B (400V)
cond. short-circuit current with fuses (AC): 100 kA / 400 V (32A)
100 kA / 500 V (25A)
approved wth fuse links of operation class: gG

Dissipação de energia do artigo:

A dissipação de energia em uma carga de 80% resulta em 0,6 W.

(A dissipação de energia em sua carga máxima seria 0,9 W.)

Dados adicionais IEC

The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.
tensão máxima IEC AC: 725 V
further utilisation category AC (IEC 60947-3): AC-20B (1000 V) at pollution degree 2
A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such.
for fuse links as per IEC / EN 60269-2 with permitted rated power dissipations
up to max. 3W for gG/gL
up to max. 1.2W for aM
Dados UL
Standards
UL 4248-1
for UL feeder circuits >250V
suitable for field-installed conductors
Dados electricos UL
corrente nominal (UL): 30 A
rated voltage (UL) AC: 600 V
min. operating voltage AC: 110 V
rated frequency (UL): 50 / 60 Hz
tensão nominal (UL) DC: 600 V
for wires UL: Cu 75°C
SCCR: 100 kA
Dados mecânicos
L x A x P: 54 x 81 x 58
Peso: 17,0 kg/100
Polaridade: 3 polos
Montagem: for mounting rail
degree of protection: IP20
front degree of protection: IP20
pontos terminais
cage clamp connection
screw drive: PZ2
wire stripping: 11 mm
min. cross-section: 0,75 mm²
max. cross-section: 25 mm²
Md min.: 2,0 Nm
Md max.: 2,5 Nm
Not suitable for aluminium cables !

min. cross-section UL: AWG 18
max. cross-section UL: AWG 4
torque (UL): 18 - 22 lb-in
for wires UL: Cu 75°C


for applications acc. to IEC / EN :
1 wire:
Cu 0,75 - 25 mm²
2 wires (of same cross-section):
Cu 0,75 - 10 mm²
flexible cables, directly or with wire-end ferrule
(flexible cables of max. cross-section may not fit when using wire-end ferrule)
Md 2,0 - 2,5 Nm / 18 - 22 lb.in.

for applications acc. to UL / CSA :
only Cu cables acc. to UL 486E
1 wire:
AWG 18 - AWG 8, Class B, Md 2,0 -2,5 Nm / 18 - 22 lb.in.
AWG 6 - AWG 4, Class C, Md 2,5 - 3,0 Nm / 22 - 26 lb.in.
2 wires (of identical cross-section):
AWG 18 - AWG 8, Class B, Md 2,0 - 2,5 Nm / 18 - 22 lb.in.
AWG 6, Class C, Md 2,0 - 2,5 Nm / 18 - 22 lb.in.

Instruções de Aplicação

Not suitable for aluminium cables !
A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such.

Notas

The indicator light signals that the fuse has tripped, but only when the closed fuse-holder is under voltage.
permitted power dissipation of the fuse-link: 3 W
for UL feeder circuits >250V
