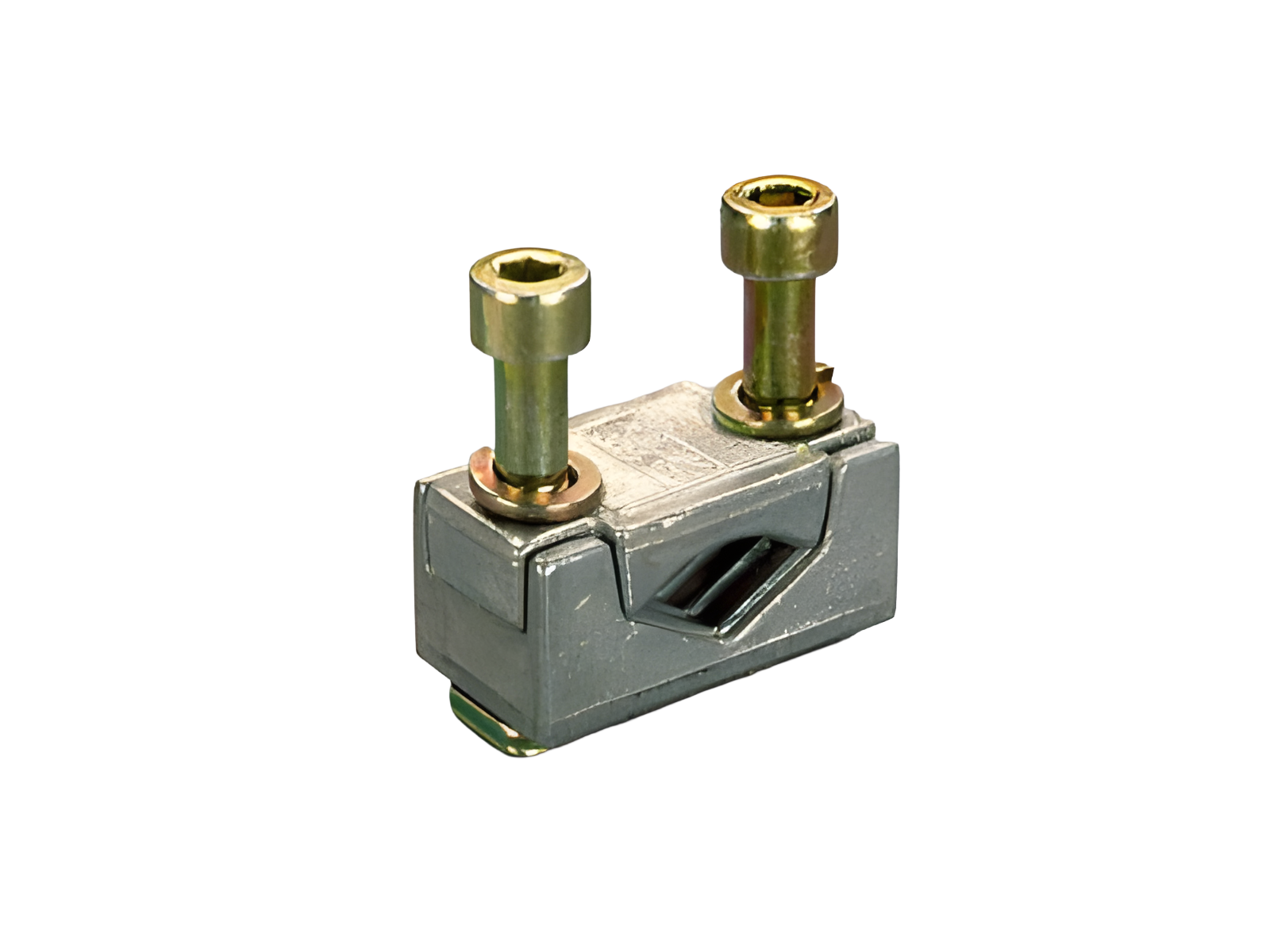

morsetto a prisma, per cavi Cu / Al (33168)

The picture may show a similar product.

Descrizione

Cod.art.: 33168 000

morsetto a prisma, per cavi Cu / Al

150 - 300 mm²

Gr. NH 3

Montaggio

60Classic

gruppo di prodotto 09
sottogruppo prodotto 51
pz/ conf. 1
EAN 4021267331689
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Certificazioni

Norme

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Dati tecnici

Details IEC
Norme
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Valori meccanici
peso: 24.7 kg/100
Connessioni
screw drive: S6
wire stripping: 30 mm
min. cross-section: 150 mm²
max. cross-section: 300 mm²
rm: 150 - 300 mm²
f: 150 - 300 mm²
f + AE: 150 - 300 mm²
(f + AE may not fit with max. cross-section)
sm: 150 - 300 mm²
Md min.: 6.4 Nm
Md max.: 9.6 Nm
Suitable for aluminium cables.
When using aluminium cables, observe the maintenance instructions.

Application notes

Suitable for aluminium cables.
When using aluminium cables, observe the maintenance instructions.

determined by main product
