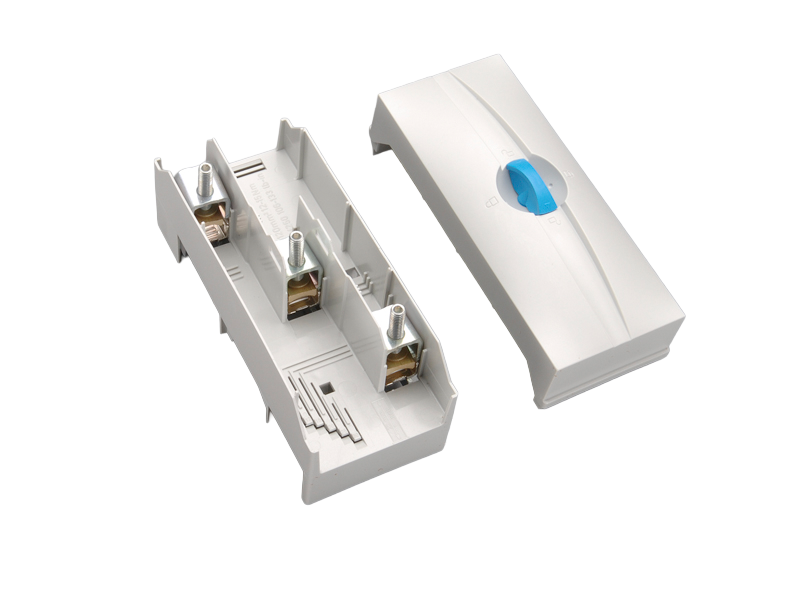

The picture may show a similar product.
Référence 01243 000
CRITO®60Classic
plaque bornier, 3 pôles
10 - 120 mm², AWG 6 - 250 MCM, lam. Cu.
pour jeux de barres 12, 15, 20, 25, 30 x 5, 10 et barres profilées
Système
60Classic
Avantages produit
Terminals can be removed for connection of uncut conductors
| Groupe de produits | 07 |
| Sous-groupe | 45 |
| Dimensions de l'emballage | 1 |
| EAN | 4021267012434 |
| ECLASS 6.1 | 27141146 |
| ECLASS 7.1 | 27141146 |
| ETIM 4.0 | EC000001 |
| ETIM 5.0 | EC000001 |
Normes
IEC 61439-1:2020
IEC 60999-1:1999
IEC 60999-2:2003
UL 508
Approbations
CSA , UL , DNV GL
for UL feeder circuits >250V
Type: 243-L
UL file: E123577, UL category (for USA): NMTR https://www.ul.com
UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
Homologation CCC: no certification required
| Details IEC | |
| Normes | |
|
IEC 61439-1:2020 IEC 60999-1:1999 IEC 60999-2:2003 |
| Electrical data IEC | |
| Courant assigné (IEC): | 250 A |
| Tension assignée (IEC) CA: | 690 V |
| Tension assignée de tenue aux chocs Uimp: | 6 kV |
| rated peak withstand current Ipk max.: | 56.3 kA |
| rated short-time withstand current Icw (0.1 s) max.: | 22 kA |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 3,8 W.
(The power dissipation at full load would be 6,0 W.)
| Supplementary data IEC | |
|
Les valeurs suivantes ont été vérifiées par des tests sous certaines conditions. Veuillez demander ces conditions à Wöhner avant de concevoir votre armoire. |
| Tension maximale IEC CA: | 1000 V |
| Tension maximale IEC CC: | 1500 V |
| current capacity (IEC) max.: | 440 A |
| Details UL | |
| Normes | |
| UL 508 |
| for UL feeder circuits >250V | |
| suitable for field-installed conductors |
| Electrical data UL | |
| rated current (UL): | 250 A |
| rated voltage (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| for wires UL: | Cu 75°C |
| SCCR unprotected max.: | 10 kA |
| 3 cycles (without OPD) @ 600 V AC | |
| SCCR protected max.: | 100 kA |
| SCCR: |
100 kA with JDDZ fuse Class J 600 A / 480 V AC
50 kA with any DIVQ/7 circuit breaker 600 A / 480 V AC 35 kA with any DIVQ/7 circuit breaker 600 A / 600 V AC 100 kA with JDDZ fuse Class J 500 A / 600 V AC 65 kA with any DIVQ/7 circuit breaker 400 A / 480 V AC |
| Charactéristiques mécaniques | |
| L x H x P: | 81 x 200 x 84 |
| Poids: | 53,5 kg/100 |
| Pôles: | 3 pôles |
| pour jeux de barres: | 12, 15, 20, 25, 30 x 5, 10 et barres profilées |
| Points de raccordement | |
| cage clamp connection | |
| screw drive: | S4 |
| wire stripping: | 25 mm |
| min. cross-section: | 10 mm² |
| max. cross-section: | 150 mm² |
| re: | 10 - 10 mm² |
| rm: | 16 - 150 mm² |
| f: | 16 - 120 mm² |
| f + AE: | 10 - 120 mm² |
| (f + AE may not fit with max. cross-section) | |
| Md min.: | 12,0 Nm |
| Md max.: | 12,5 Nm |
| Not suitable for aluminium cables ! | |
| Alvéole de serrage: | 15 x 17 |
| lam. Cu width: | 12 - 15,5 mm |
| lam. Cu thickness: | 4 - 10 mm |
| Nombre de barres souples: | 1 |
| min. cross-section UL: | AWG 8 |
| max. cross-section UL: | MCM 250 |
| torque (UL): | 106 lb-in |
| for wires UL: | Cu 75°C |
| Not suitable for aluminium cables ! | |
| Les performances d'isolation de l'article dépendent des conditions d'installation. | |
| for UL feeder circuits >250V | |
| considering the permitted temperature rise at the concrete installation conditions a capacity of 400 A is accepted by UL |
