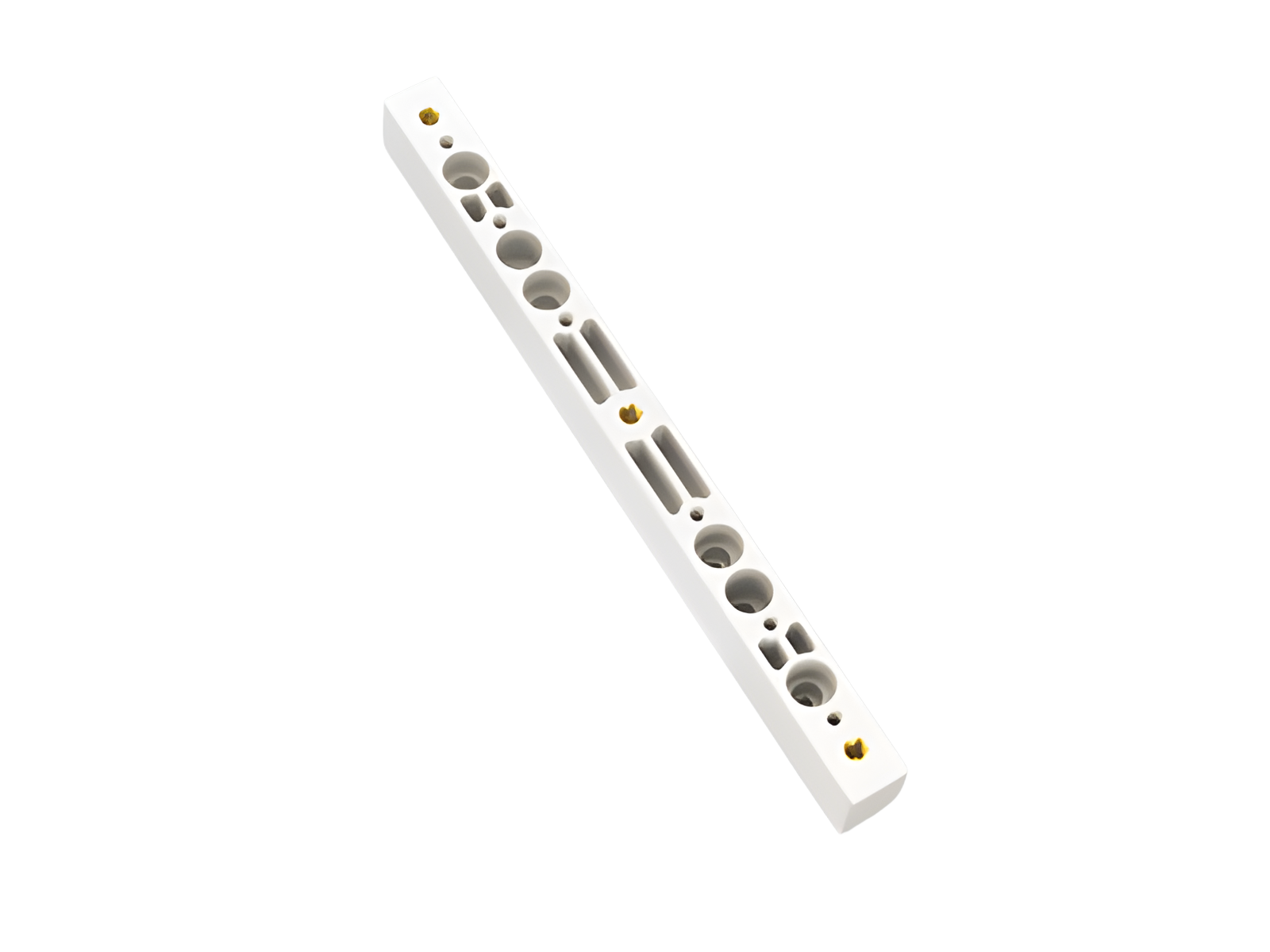

Référence 01742000
support de jeu de barres
pour barres de bus plates percées
Avantages produit
Type tested at 600mm busbar support separation and busbar 120 x 10mm with internal screw holes
can also be used as centre support.
Groupe de produits | 06 |
Sous-groupe | 24 |
Dimensions de l'emballage | 6 |
EAN | 4021267017422 |
catalog page | 2015 : 4.11 |
ECLASS 6.1 | 27400607 |
ECLASS 7.1 | 27400607 |
ETIM 4.0 | EC001166 |
ETIM 5.0 | EC001166 |
Normes
IEC 61439-1:2011
Approbations
EAC
EAC Type: SB
Homologation CCC: no certification required
Details IEC | |
Normes | |
IEC 61439-1:2011 |
Electrical data IEC | |
Tension assignée (IEC) CA: | 690 V |
rated isolation voltage Ui AC: | 1000 V |
Tension assignée de tenue aux chocs Uimp: | 8 kV |
Les performances d'isolation de l'article dépendent des conditions d'installation. |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0,0 W.
(The power dissipation at full load would be 0,0 W.)
Supplementary data IEC | |
Les valeurs suivantes ont été vérifiées par des tests sous certaines conditions. Veuillez demander ces conditions à Wöhner avant de concevoir votre armoire. |
Tension maximale IEC CC: | 1500 V |
Short-circuit withstand capacity: Surge current strength > 100kA at Busbar support separation 600mm |
Charactéristiques mécaniques | |
L x H x P: | 32 x 412 x 40 |
Poids: | 70,3 kg/100 |
Conseils
Schraube M10 zur Befestigung der Flachschiene mit 20Nm anziehen
