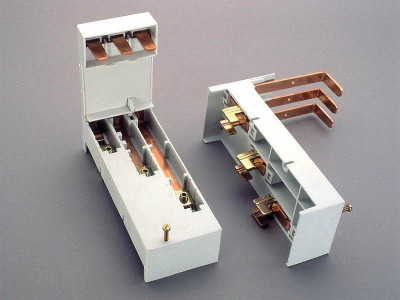

The picture may show a similar product.
Référence 32226000
adaptateur 100 A / 400 V
70 x 182
pour Siemens S3
Plus disponible; à remplacer par: 32981
Système
60Classic
| Groupe de produits | 05 |
| Sous-groupe | 28 |
| Dimensions de l'emballage | 2 |
| EAN | 4021267322267 |
| ECLASS 6.1 | 27370304 |
| ECLASS 7.1 | 27370304 |
| ETIM 4.0 | EC001531 |
| ETIM 5.0 | EC001531 |
Normes
IEC 61439-1:2020
UL 508
Approbations
CSA , UL
Type: 4610.1
UL file: E123577, UL category (for USA): NMTR2 https://www.ul.com
UL file: E123577, UL category (for Canada): NMTR8 https://www.ul.com
CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
Homologation CCC: no certification required
| Details IEC | |
| Normes | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| Courant assigné (IEC): | 100 A |
| Tension assignée (IEC) CA: | 400 V |
| rated isolation voltage Ui AC: | 400 V |
| Tension assignée de tenue aux chocs Uimp: | 6 kV |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 3,1 W.
(The power dissipation at full load would be 4,9 W.)
| Details UL | |
| Normes | |
| UL 508 |
| Electrical data UL | |
| rated current (UL): | 100 A |
| rated voltage (UL) AC: | 400 V |
| rated frequency (UL): | 50 / 60 Hz |
| Charactéristiques mécaniques | |
| L x H x P: | 70 x 182 x 160 |
| Poids: | 53,4 kg/100 |
| Pôles: | 3 pôles |
| There must be a clearance of at least 12 mm above the article to remove it from the busbar system. | |
|
Conseils |
Special adapter for Siemens S3 (3RV1x4...), ABB MS49x. For safe mechanical and electrical connection of the devices to the busbar. |
