for UL feeder circuits >250V

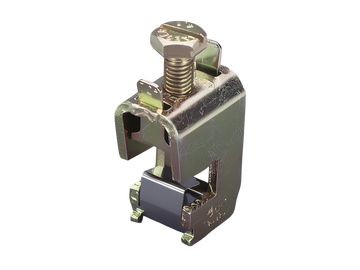

The picture may show a similar product.
Référence 01287 000
CRITO®
borne de raccordement universelle
16 - 70 mm², AWG 6 - 2/0
pour jeux de barres barres plates 5 mm
Système
60Classic, 30Compact 3P
Avantages produit
Terminal with integrated holding spring, captive clamping screw and opened terminal space.
Indication of nominal cross-section and tightening torque noted on the terminal.
| Groupe de produits | 07 |
| Sous-groupe | 12 |
| Dimensions de l'emballage | 25 |
| EAN | 4021267012878 |
| ECLASS 6.1 | 27141146 |
| ECLASS 7.1 | 27141146 |
| ETIM 4.0 | EC000001 |
| ETIM 5.0 | EC000001 |
Normes
IEC 61439-1:2020
IEC 60999-1:1999
IEC 60999-2:2003
UL 508
Approbations
CSA , UL
Type: 523
UL file: E123577, UL category (for USA): NMTR2 https://www.ul.com
UL file: E123577, UL category (for Canada): NMTR8 https://www.ul.com
CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
Homologation CCC: no certification required
| Details IEC | |
| Normes | |
|
IEC 61439-1:2020 IEC 60999-1:1999 IEC 60999-2:2003 |
| Electrical data IEC | |
| Courant assigné (IEC): | 175 A |
| Tension assignée (IEC) CA: | 690 V |
| rated peak withstand current Ipk max.: | 46.7 kA |
| rated short-time withstand current Icw (1.0 s) max.: | 11.1 kA |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0,0 W.
(The power dissipation at full load would be 0,0 W.)
| Supplementary data IEC | |
|
Les valeurs suivantes ont été vérifiées par des tests sous certaines conditions. Veuillez demander ces conditions à Wöhner avant de concevoir votre armoire. |
| Tension maximale IEC CA: | 1000 V |
| Tension maximale IEC CC: | 1500 V |
| current capacity (IEC) max.: | 400 A |
| Details UL | |
| Normes | |
| UL 508 |
| suitable for field-installed conductors |
| Electrical data UL | |
| rated current (UL): | 175 A |
| rated voltage (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| Charactéristiques mécaniques | |
| L x H x P: | 21 x 32 x 42 |
| Poids: | 7,1 kg/100 |
| pour jeux de barres: | barres plates 5 mm |
| Points de raccordement | |
| screw clamp connection | |
| min. cross-section: | 16 mm² |
| max. cross-section: | 70 mm² |
| rm: | 16 - 70 mm² |
| f: | 16 - 70 mm² |
| f + AE: | 16 - 70 mm² |
| (f + AE may not fit with max. cross-section) | |
| Md min.: | 8,0 Nm |
| Md max.: | 12,0 Nm |
| Not suitable for aluminium cables ! | |
| Alvéole de serrage: | 14 x 14 |
| lam. Cu width: | 9 - 13 mm |
| lam. Cu thickness: | 2 - 14 mm |
| Nombre de barres souples: | 1 |
| min. cross-section UL: | AWG 6 |
| max. cross-section UL: | AWG 2/0 |
| Not suitable for aluminium cables ! | |
| Les performances d'isolation de l'article dépendent des conditions d'installation. | |
|
L'aptitude des circuits d'alimentation (respectant les espacements d'alimentation requis) est déterminée par les conditions d'installation. |
