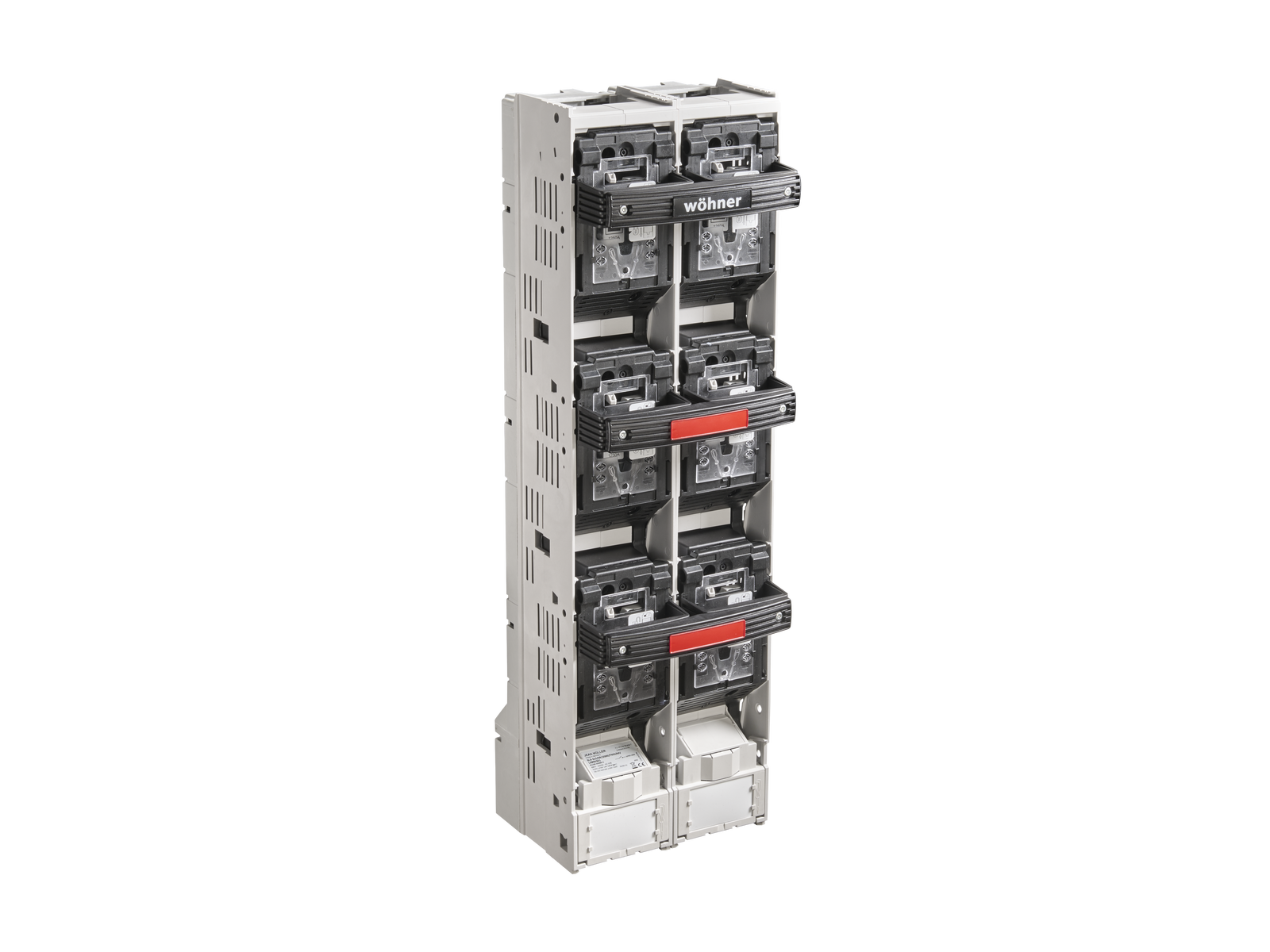

The picture may show a similar product.
Référence 33045000A
QUADRON®185Power
réglette sectionneur à fusible 630 A
taille 3, commutation à 1 pôle
Abgang Seitlich rechts
pour jeux de barres 30, 40, 60, 80, 100, 120 x 10
Nouveau
Système
185Power
| Groupe de produits | 12 |
| Sous-groupe | 47 |
| Dimensions de l'emballage | 1 |
| EAN | 4021267330453 |
| ECLASS 6.1 | 27142108 |
| ECLASS 7.1 | 27142108 |
| ETIM 4.0 | EC001046 |
| ETIM 5.0 | EC001046 |
Normes
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Type: QJ185-630/1-CO
| for fuse links size: | NH 3 |
| fuse links acc. to standard: | IEC / HD 60269-2 |
| permitted power dissipation of the fuse-link: | 48 W |
| Details IEC | |
| Normes | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Electrical data IEC | |
| Courant assigné (IEC): | 630 A |
| Tension assignée (IEC) CA: | 690 V |
| rated isolation voltage Ui AC: | 1000 V |
| Tension assignée de tenue aux chocs Uimp: | 12 kV |
| cond. short-circuit current with fuses (AC): | 80 kA / 690 V (630 A) |
| approved wth fuse links of operation class: | gG |
| rated short-time withstand current Icw (1.0 s) max.: | 10 kA |
| Icw approved with: | Trennmesser |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 75,5 W.
(The power dissipation at full load would be 118,0 W.)
| Charactéristiques mécaniques | |
| L x H x P: | 100 x 662 x 194 |
| Poids: | 574,0 kg/100 |
| Pôles: | 3 pôles |
| pour jeux de barres: | 30, 40, 60, 80, 100, 120 x 10 |
| CT can be integrated in the CT module: | nein |
| front degree of protection: | IP30 |
Type of fastening:
can be screwed onto drilled busbar, diameter 13mm, undrilled mounting with terminal clamp
connection:
screw connection M12
| permitted power dissipation of the fuse-link: | 48 W |
