for UL feeder circuits >250V

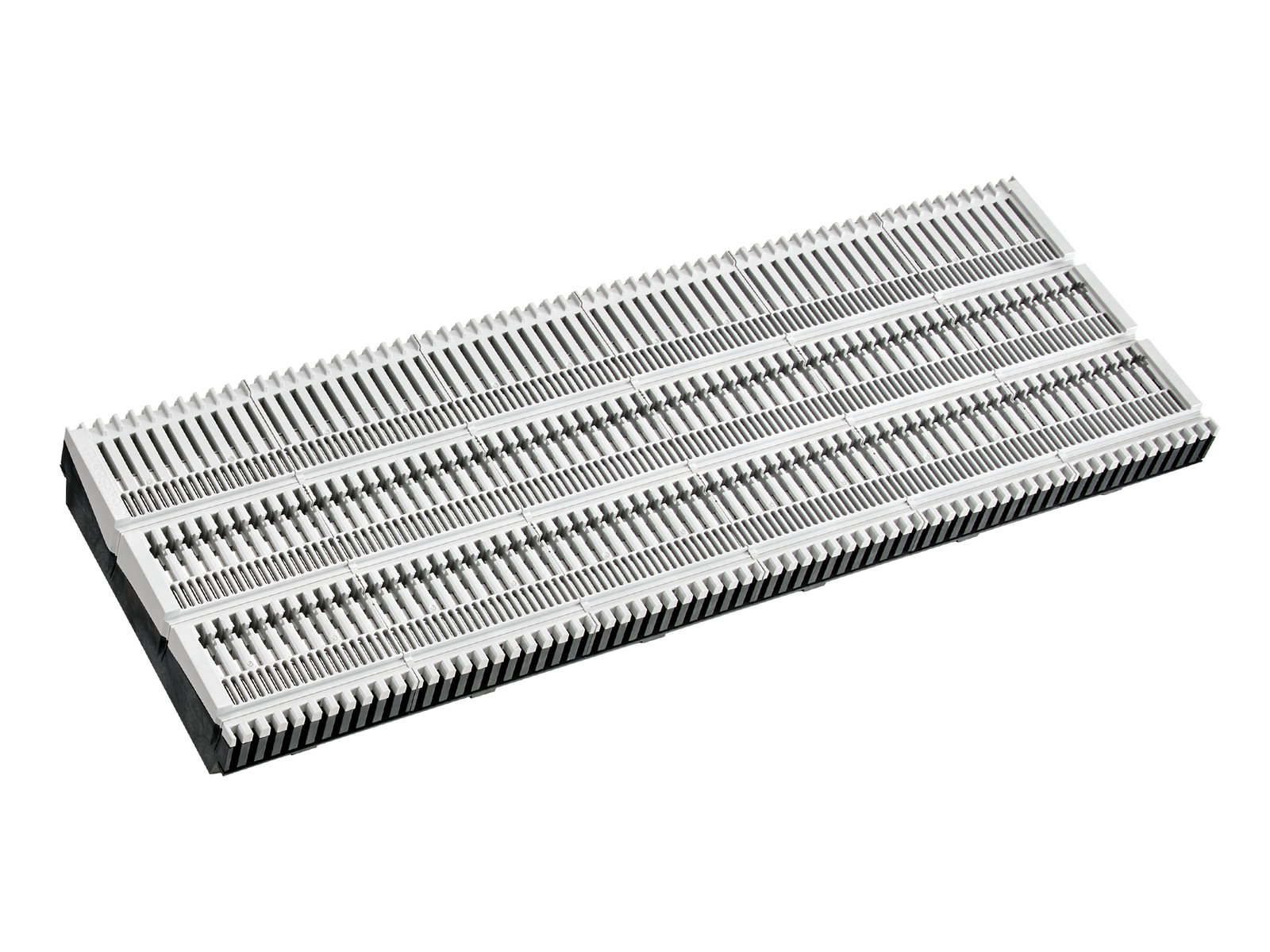

The picture may show a similar product.
Référence 11811000A
CrossBoard®
basic system 800 A
for rear feeding
3 pôles
1100 mm de long, protection contre le contact
avec interface CrossLink®
coming soon
Système
CrossBoard® 800 A
Avantages produit
touch-safe protected busbar system up to 800 A
rear feedable
plug and play
completely pre-assembled and immediately ready for use
| Groupe de produits | 06 |
| Sous-groupe | 50 |
| Dimensions de l'emballage | 1 |
| EAN | 4021267118112 |
Normes
IEC 61439-1:2020
UL 508
Approbations
IEC (CB) , UL
for UL feeder circuits >250V
UL file: E123577, UL category (for USA): NMTR https://www.ul.com
Homologation CCC: no certification required
| Details IEC | |
| Normes | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| Courant assigné (IEC): | 800 A |
| Tension assignée (IEC) CA: | 800 V |
| rated isolation voltage Ui AC: | 1000 V |
| Tension assignée de tenue aux chocs Uimp: | 6 kV |
| rated peak withstand current Ipk max.: | 80 kA |
| rated short-time withstand current Icw (1.0 s) max.: | 40 kA |
| Supplementary data IEC | |
|
Les valeurs suivantes ont été vérifiées par des tests sous certaines conditions. Veuillez demander ces conditions à Wöhner avant de concevoir votre armoire. |
| Tension maximale IEC CC: | 1000 V |
| Details UL | |
| Normes | |
| UL 508 |
| for UL feeder circuits >250V |
| Electrical data UL | |
| rated current (UL): | 800 A |
| rated voltage (UL) AC: | 800 V |
| rated frequency (UL): | 50 / 60 Hz |
| rated voltage (UL) DC: | 600 V |
| SCCR unprotected max.: | 40 kA |
| 3 cycles (without OPD) @ 600 V AC | |
| SCCR protected max.: | 100 kA |
| SCCR: |
100 kA with JDDZ fuse Class L/T 800 A / 600 V AC
65 kA with any DIVQ/7 circuit breaker 800 A / 480 V AC |
| Charactéristiques mécaniques | |
| L x H x P: | 1100 x 200 x 45 |
| Pôles: | 3 pôles |
| degree of protection: | IP20 |
| for UL feeder circuits >250V |
