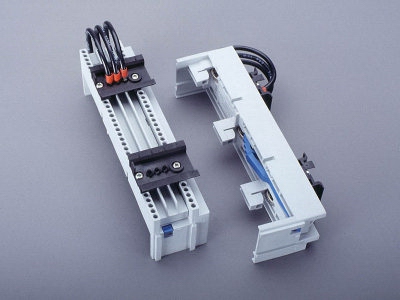

The picture may show a similar product.
Référence 32061 000
adaptateur 25 A, 2 rails de montage
45 x 182
Plus disponible; à remplacer par: 32431
Système
60Classic
Avantages produit
Conductor ends ultrasonically sealed.
Click mechanism when pushing onto the busbar.
| Groupe de produits | 05 |
| Sous-groupe | 21 |
| Dimensions de l'emballage | 4 |
| EAN | 4021267320614 |
| ECLASS 6.1 | 27370304 |
| ECLASS 7.1 | 27370304 |
| ETIM 4.0 | EC001531 |
| ETIM 5.0 | EC001531 |
Normes
IEC 61439-1:2020
UL 508
Approbations
CSA , UL
for UL feeder circuits >250V
Type: 6025.1
UL file: E123577, UL category (for USA): NMTR2 https://www.ul.com
UL file: E123577, UL category (for Canada): NMTR8 https://www.ul.com
CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
Homologation CCC: no certification required
| Details IEC | |
| Normes | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| Courant assigné (IEC): | 25 A |
| Tension assignée (IEC) CA: | 690 V |
| rated isolation voltage Ui AC: | 800 V |
| Tension assignée de tenue aux chocs Uimp: | 6 kV |
| Details UL | |
| Normes | |
| UL 508 |
| for UL feeder circuits >250V |
| Electrical data UL | |
| rated current (UL): | 25 A |
| rated voltage (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| Charactéristiques mécaniques | |
| L x H x P: | 45 x 182 x 60 |
| Poids: | 20,6 kg/100 |
| Pôles: | 3 pôles |
| There must be a clearance of at least 12 mm above the article to remove it from the busbar system. | |
|
For safe mechanical and electrical connection of all commercially available switchgear to the busbar system, with option to hold free leads, can be offset in the 5mm grid. |
|
| for UL feeder circuits >250V |
