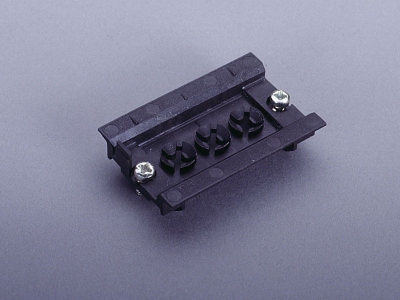

carril de montaje, plástico (32901)

La imagen puede mostrar un producto similar.

Descripción

Part No.: 32901 000

carril de montaje, plástico

EN 60715, 54 mm de anchura

35 x 54 x 8.5

ventajas del producto

Plastic support for fastening additional devices on the adapter, can be offset in the 5mm grid.

grupo de producto 05
subgrupo 57
embalaje 10
EAN 4021267329013
ECLASS 6.1 27370390
ECLASS 7.1 27370390
ETIM 4.0 EC000212
ETIM 5.0 EC001285

Homologaciónes

Normas

IEC 61439-1:2020

Homologación CCC: no es obligatoria la certificación

Datos técnicos

datos IEC
Normas
IEC 61439-1:2020
datos mecánicos
An x A x P: 54 x 35 x 9
peso: 1,0 kg/100

Application notes

short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Se utiliza para

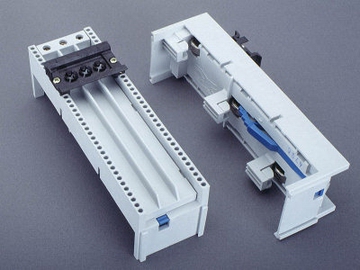

32153 000
adaptador de 80 A, 1 carril de montaje
con bornes 16 mm² (frontal)
54 x 182
